PEAK MANUAL POWER UNIT

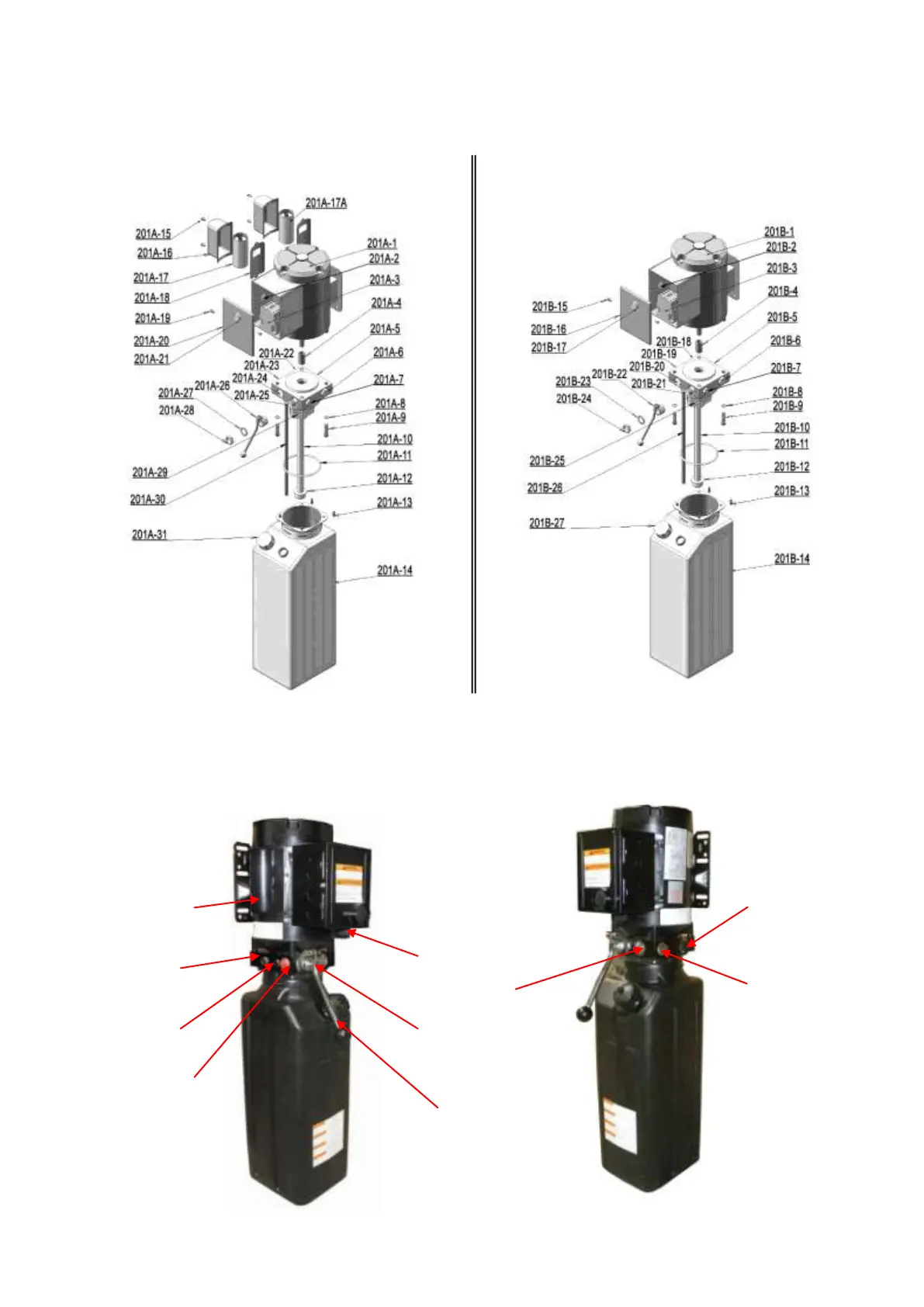

Illustration of hydraulic valve for SPX & PEAK hydraulic power unit
a. SPX manual power unit, 220V/50HZ, Single phase (See Fig. 45)
220V/50HZ/1Phase
380V/50HZ/3Phase
Fig. 44
Release valve
Fig. 45
Relief valve
Auxiliary hole
Check valve
Protective ring
Capacitor
Oil return port
Auxiliary hole
Oil Outlet
Handle for Release valve
