Peak 212 - Equipment Storage and Handling; Concrete Specifications

4
B.
Equipment storage and installation requirements.
The equipment should be stored or installed in a shady, normal
temperature, ventilated and dry place.

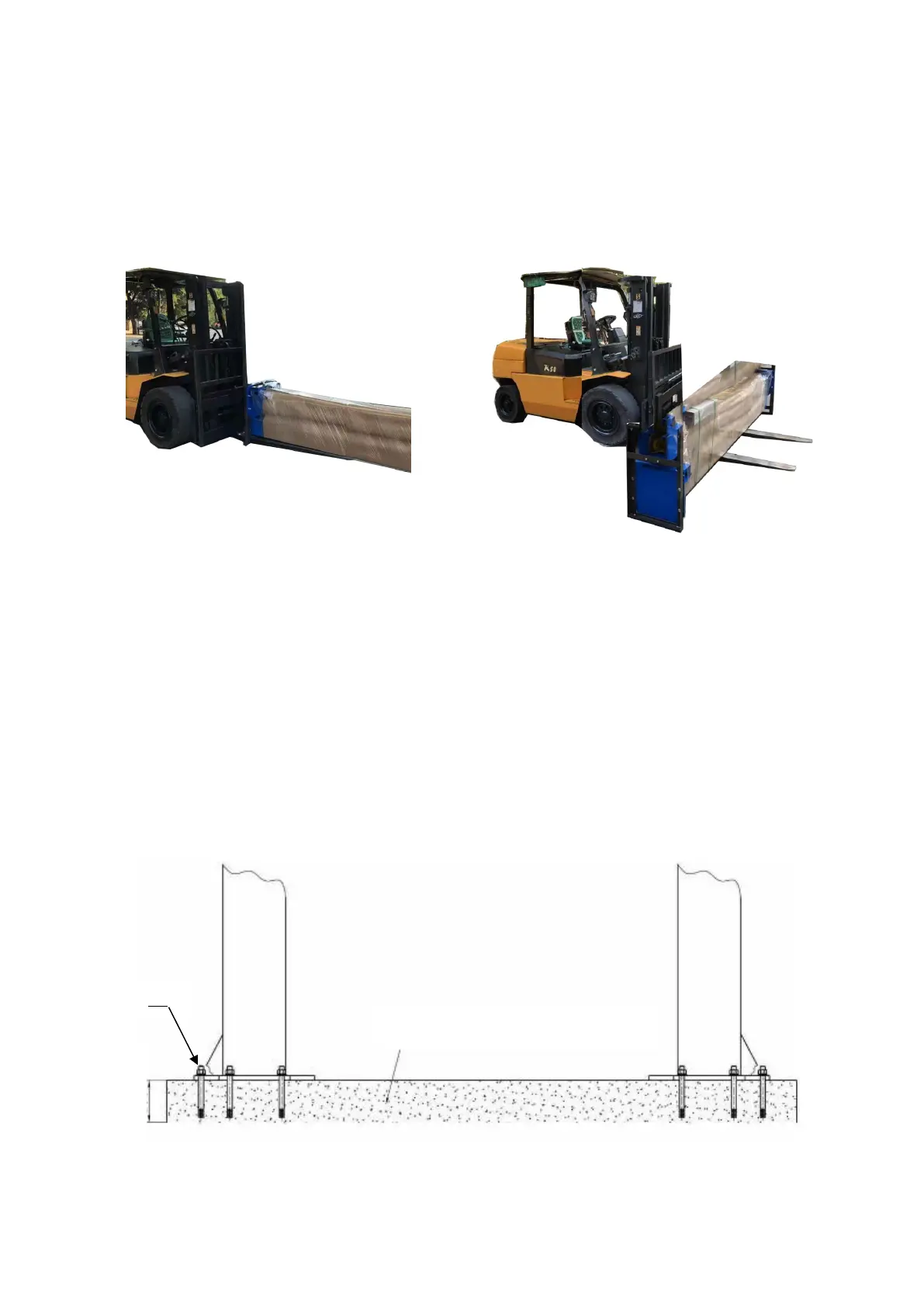

C. The equipment should be unload and transfer by forklift.
D. SPECIFICATIONS OF CONCRETE (See Fig. 5).
Specifications of concrete must be adhered to the specification as following.
Failure to do so may result in lift and/or vehicle falling.
1. Concrete must be thickness 120mm minimum and without reinforcing steel bars,
and must be dried completely before the installation.
2. Concrete must be in good condition and must be of test strength 3,500psi
(245kg/cm²) minimum.
3. Floors must be level and no cracks.
Fig. 5
Concrete intensity must be 3500psi
(245Kg/cm
2
) minimum
83
Fig 4
120mm
