b. Connecting air solenoid valve(Fig.59).
2.Connecting air source, and operate the Jack with air pump.
Parts For Air line kits(optional)
Item
Code
Description
Qty
201-1
1061K090
Fast female connector
2
201-2
1061K091
Air hose connector
2
201-3
10430010
Washer
2
201-4
1061K092
Hex bolt
2
201-5
10209136A
Air hose
1
201-6
1061K094
90
0
T-fitting
1
201-7
1061K093
T- fitting
1
201-8
10430011
Straight fitting
1
201-9
10430012
Straight fitting
1
201-10
10420146
Fast connector
2
201-11
10520065A
Elastic air hose
2
201-12
10430013
Screw T-fitting
1
1061K070A
Ties
2

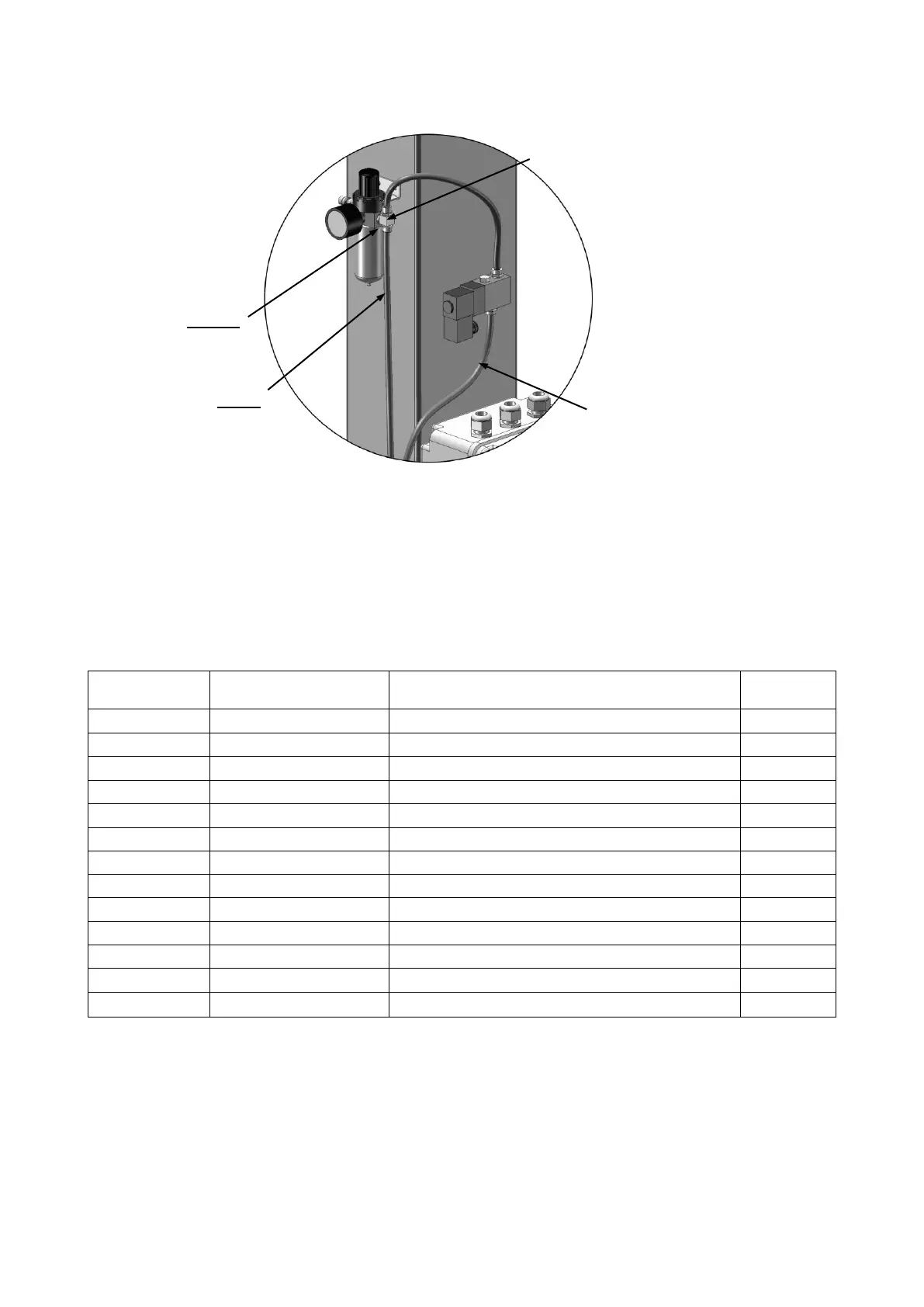

201-12
201-5
Air line connect with air
cylinder
Fig. 59
Replaced with T fitting.
