Peak 409 - Optional Extension Kit Installation

31
R. Optional extension Kit Installation.
1. Lift the equipment to about 1400mm from ground, lock it to the safety
ladder, remove the cable limit bolts and platform fixing bolts Fig 60
2. Put the extension kits into the platform,then tighten with the bolts from step 1
(see fig 61)

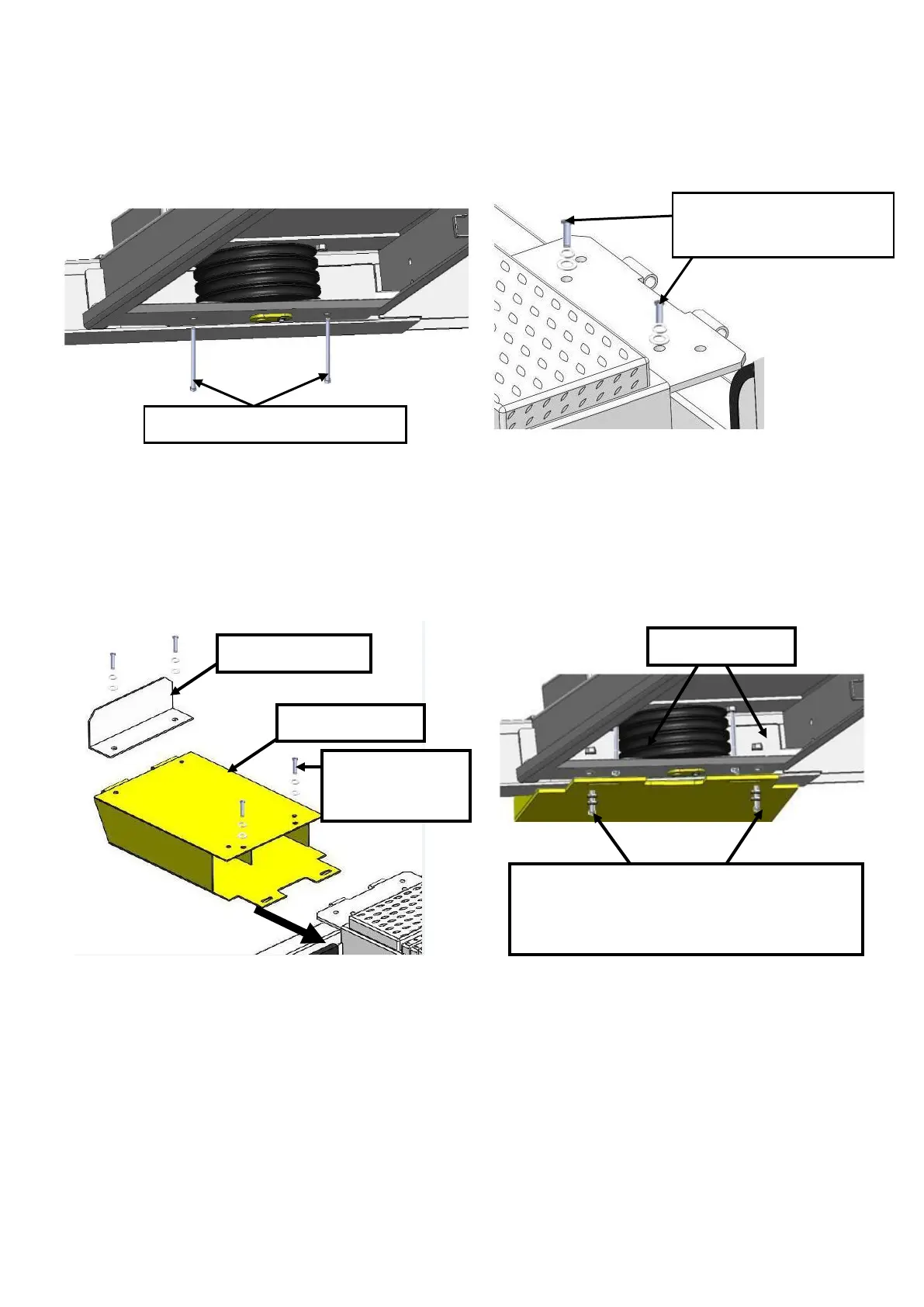

Remove the cable limit bolts
first
Then remove the
platform fixing bolts
Fig 60
Tire stop plate
Extension Kit
Cable limit bolts
Tighten the extension kit and platform
with hex bolt M16*40, washers, spring
washer and hex nut.
Platform
fixing bolts
Fig 61
