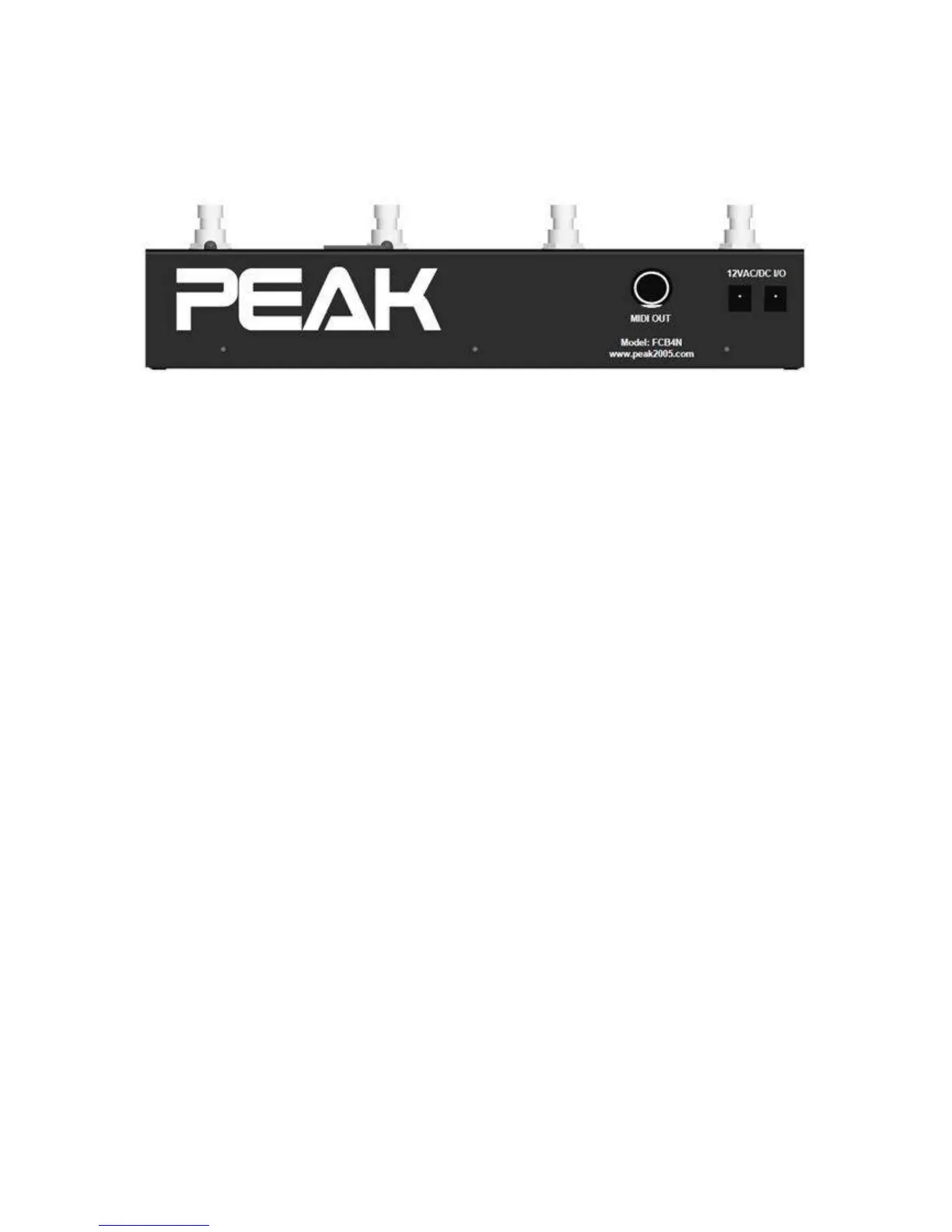

Back Panel.
MIDI OUT: The MIDI out port is used to transmit MIDI messages from the unit to other
MIDI device/s. It is an 8 pin MIDI connector so you can supply phantom
power to the unit by supply voltage between 9V – 12V to pin 6, 7 (AC or
DC, it does not matter) and pin 8 is not used.
12VAC/DC I/O: Connect to supply external voltage 9V - 12V (AC or DC is does not matter)
with current 200mA minimum. Do not use voltage over 12V otherwise
the unit will be damaged. There are 2 ports for daisy chaining the input
power supply to other MIDI devices (They are not power supply ports).
Note: Do not plug into the external power supply socket if you are phantom powering the unit via MIDI a
cable.
Specification
• 1 MIDI OUT with 8-pin DIN connector with supports phantom power on pin 6, 7.
• 2 bank switches, 4 patch switches with heavy duty foot switch.
• Programmable mode with 128 presets, arranged in 32 banks of 4 presets.
• Program Change and Continuous Controller message support (4PC and 8CC messages per preset, all
on different MIDI channels)
• Flexible power requirements: 9V-12V, AC or DC, 200mA adapter with a 5.5mm/2.1mm barrel
connector. (Adapter is not included)
• Housed in a sleek aluminum chassis and brushed finish with black anodized coating.
• Dimensions approx. : 10.3"W x 4.7"D x 2.0"H (26.2cm x 12.0cm x 5.0cm)
• Weight approx. : 1.5lb (0.7kg)
