PEAK FCB4N2-Programmable MIDI foot controller
Page 5 of 9
Power Connection.
The FCB4N2 has flexible power requirements between 9V-12V, AC or DC, 200mA. If you are using a POD 2.0
(or XT), you can plug the 9VAC power supply to an IO port (select one) and then link the power supply to
your POD 2.0 (or XT) unit via the other port. The same voltage/current as the input adapter will be passed
on to the POD 2.0 (or XT).

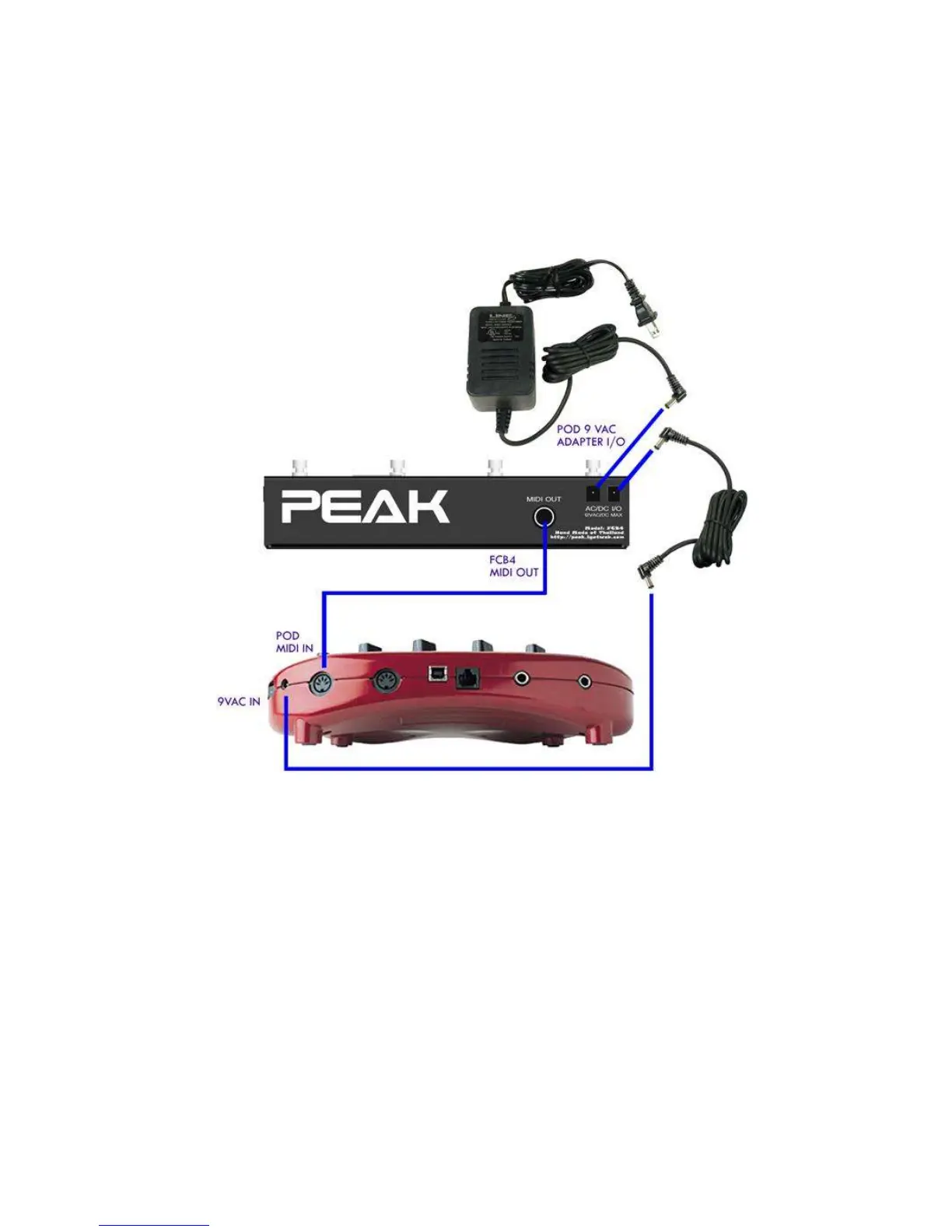

Above picture is an example that using POD 2.0 power supply with the FCB4N2 unit.
