Peavey Bandit 112 Service Manual

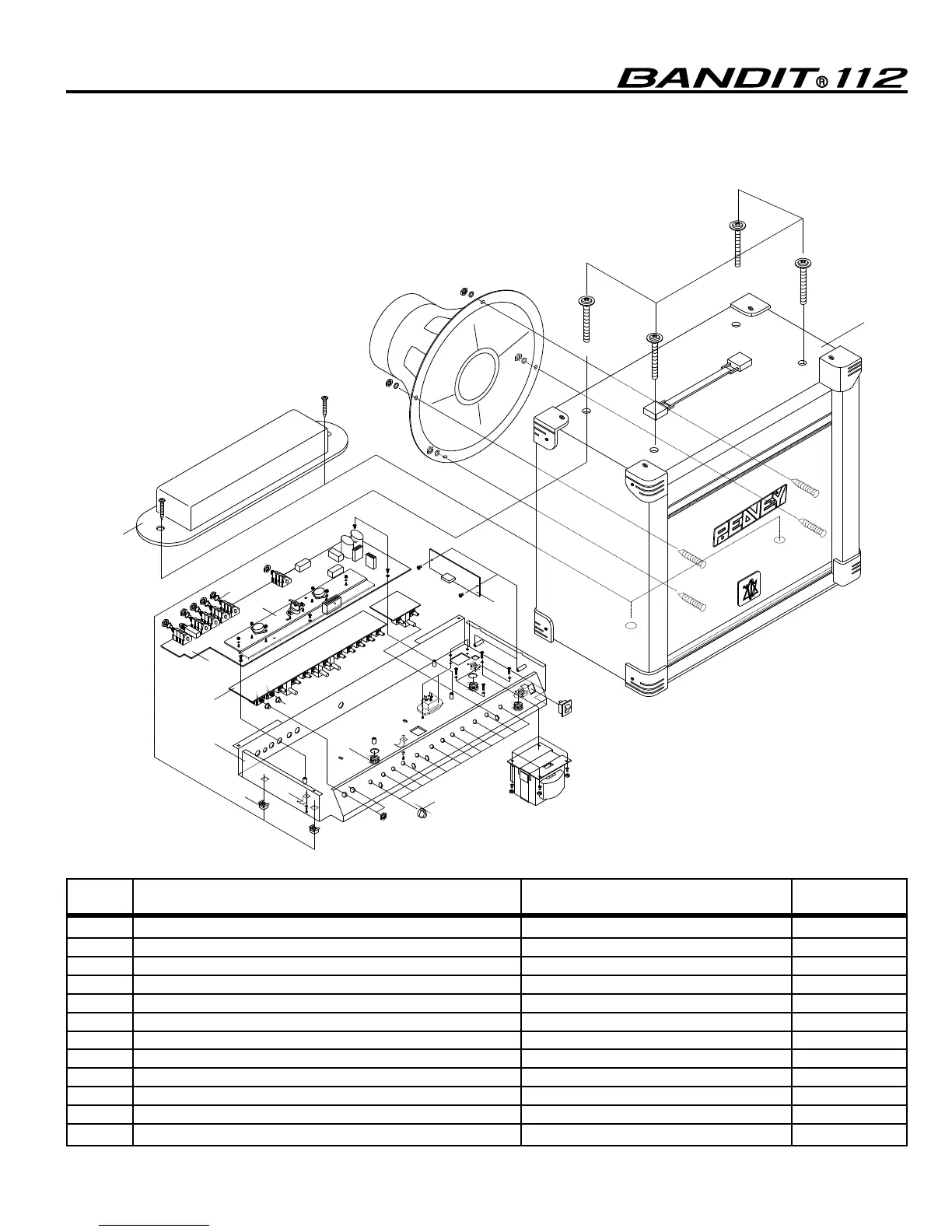

EXPLODED VIEW • PARTS LIST
- 21 -
1
2
3
4
5
6
7
8
9
10
11
12
11
1 ASSEMBLY CABINET 8900-2164-0 1
2 CHASSIS 1403-6321-0 1
3 PCB BANDIT POWER AMP 1723-771A-0000 1
4 PRIMARY1.PCB 1723-773A-0000 1
5 PCB TRANS TUBE PRE-AMP 1723-768A-0000 1
6 HEAT SINK 5400-4131-0 1
7 FLOATING NUT BRACKET 4134-8491-0 4
8 PLASTIC BUSHING 4154-0261-0 3
9 CABLE CLAMP BLK 4152-1912-0 5
10 KNOB,SINGLE UNIT 2000 4152-7820-0 1
11 GROUND BKT 4135-0731-0 7
12 REVERB UNIT 8900-9060-0 1
No. Description Mfr’s Part No. Q’ty
Unit Assy

Peavey Bandit 112 Specifications

General

Power Output	80 Watts RMS
Channels	2 (Clean and Lead)
Effects	Reverb
Effects Loop	Yes
Speaker	12-inch
Outputs	1 x Headphone
Footswitch	Optional (for channel switching)
EQ	3-band EQ per channel
