Peavey DTH 4215 User Manual

4-Conductor DTH
®
Jumper Cable
To Amplifiers
1 TOP BW -
2 TOP BW +
3 BOTTOM BW -
4 BOTTOM BW +
5 DTH
®
4215 - (LOW -)
6 DTH
®
4215 + (LOW +)
7 DTH
®
4215 - (HIGH -)
8 DTH
®
4215 + (HIGH +)
{
{
DTH
®
218b
JUMPER/
THRU
DRIVERS
PEAVEY CABLE PIN #
DTH
®
218bDTH
®
4215 Loudspeaker
Loudspeakers other than the
DTH
®
218b may also be
wired in this manner
DTH
®
4215

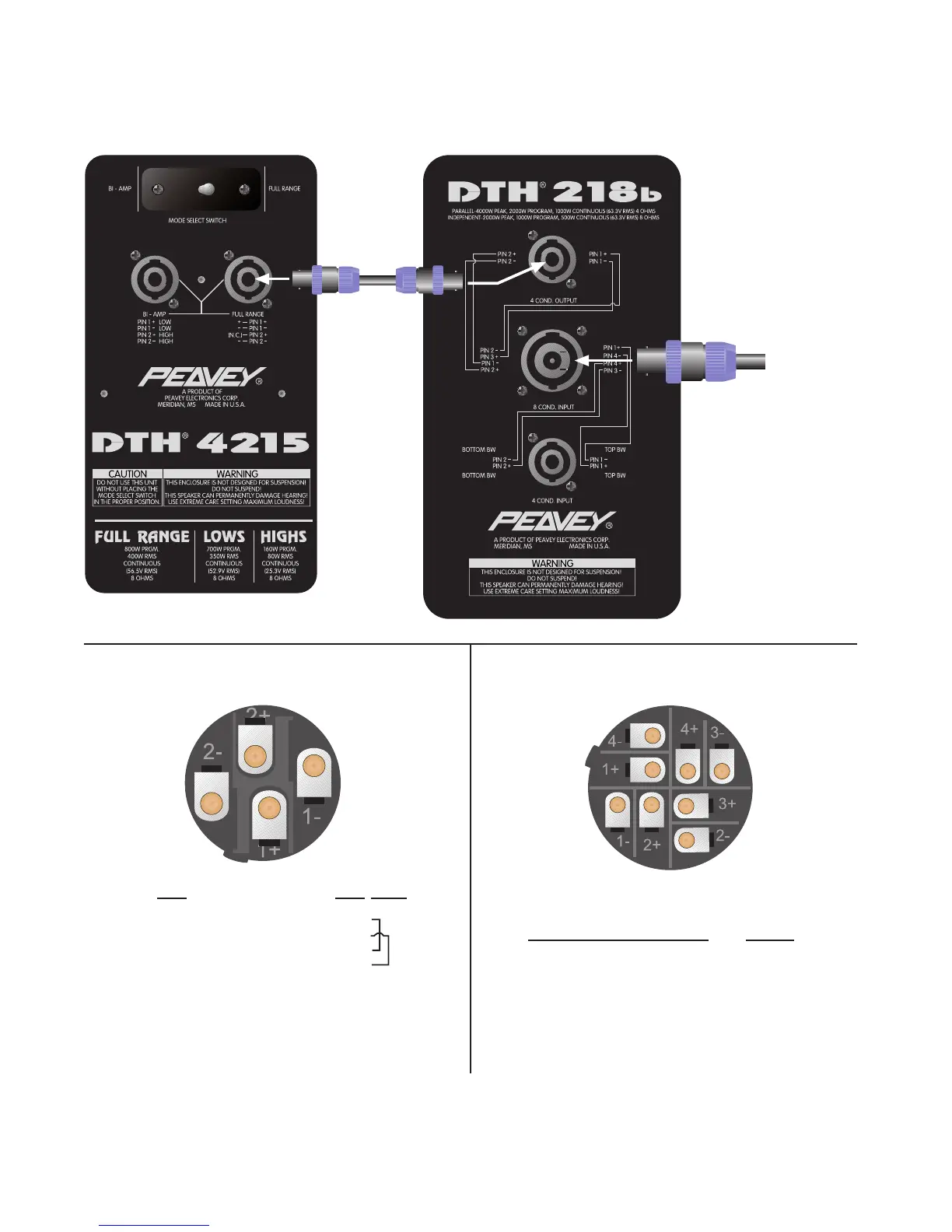

Wiring Diagram
8-Pin Speakon
®
Number/Wire Scheme
Peavey 8-Conductor Cable
1
2
3
4
5
6
7
8
NL8MP
1+
4-
4+
3-
3+
2-
2+
1-
8-Conductor Speakon
®
(NL8MP)/
Pin-Out Cross Reference
DTH
®
pin 1+ low - white
pin 1- low - green
pin 2+ high - red
pin 2- high - black
DTH
®
SUB*
pin 1+ low - white
pin 1- low - green
pin 2+ low - red
pin 2- low - black
*Stacked Banana Plugs
4-Pin Speakon
®
Number/Wire Scheme
8-Conductor Cable
