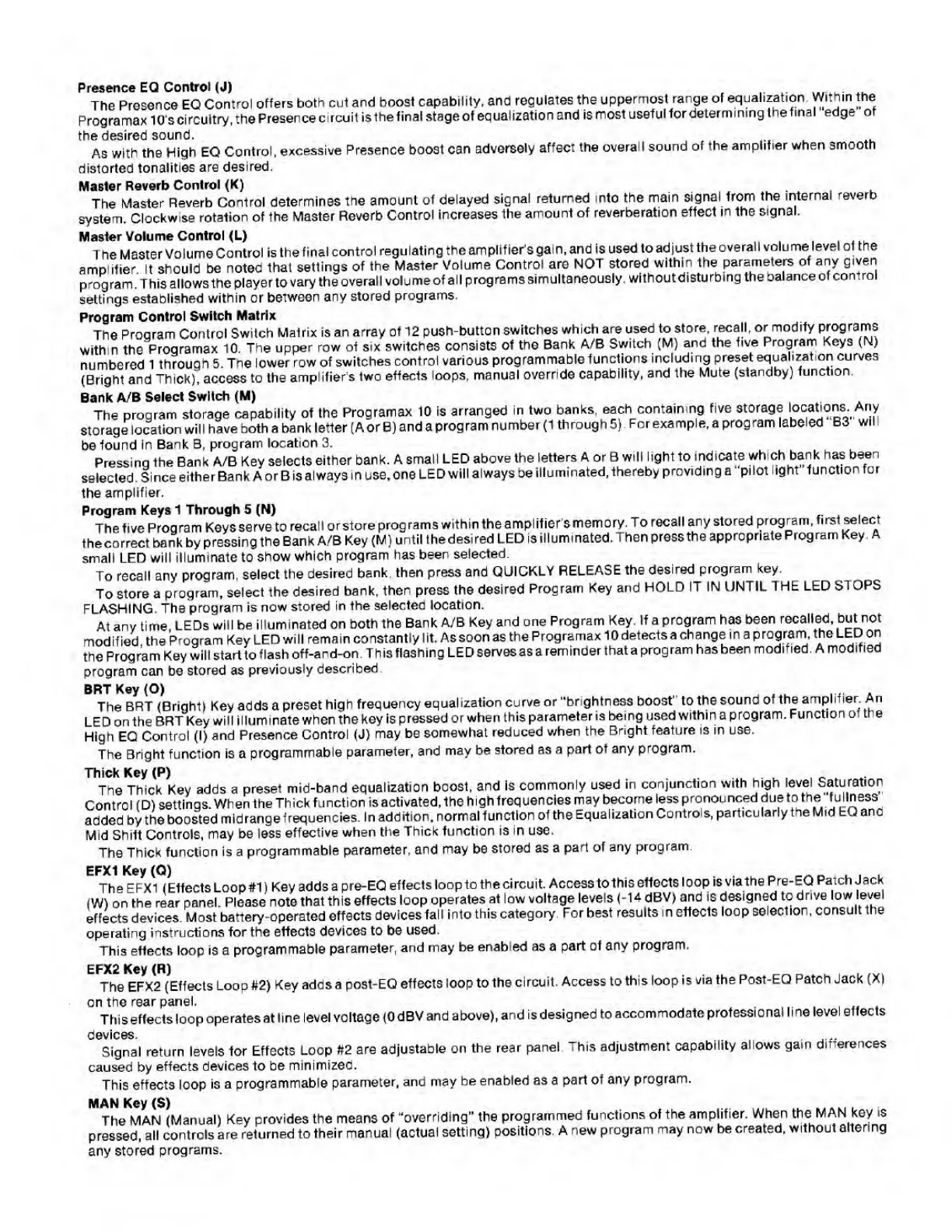

Presence EQ Control (J)
The Presence EQ Control offers both cut and boost capability, and regulates the uppermost range of equalization Within the
Programax 10‘s circuitry, the Presence circuit is the final stageof equalization and is most useful for determining the final edge of
the desired sound. .
As with the High EQ Control, excessive Presence boost can adversely affect the overall sound of the amplifier when smooth
distorted tonalities are desired.
Master Reverb Control (K)
The Master Reverb Control determines the amount of delayed signal returned into the main signal Irom the internal reverb
system. Clockwise rotation of the Master Reverb Control increases the amount of reverberation effect in the signal.
Master Volume Control (L) , .
The Master Volume Control is the final control regulating the amplifier’s gain, and is used to adjust the overall volume level ol the
amplifier. It should be noted that settings of the Master Volume Control are NOT stored within the parameters of any given
program. This allows the playerto vary the overall volume of all prog rams simultaneously, withoutdisturbing the balanceof control
settings established within or between any stored programs.
Program Control Switch Matrix
The Program Control Switch Matrix is an array of 12 push-button switches which are used to store, recall, or modify programs
within the Froqramax 10 The upper row ot six switches consists of the Bank A/B Switch (M) and the five Program Keys (N)
numbered 1 through 5. The lower row of switches control various programmable functions including preset equalization curves
(Bright and Thick)', access to the amplifier's two effects loops, manual override capability, and the Mute (standby) function.
Bank A/B Select Switch (M)
The proqram storage capability of the Programax 10 is arranged in two banks, each containing five storage locations Any
storage location will have Doth a bank letter (A or B) and a program number (1 through 5) For example, a prog ram labeled B3 wil
be found in Bank B, program location 3.
Pressinq the Bank A/B Key selects either bank. A small LED above the letters A or B will light to indicate which bank has been
selected. Since either Bank A or B is always in use, one LED will always be illuminated, thereby providing a • pilot light function for
the amplifier.
Program Keys 1 Through 5 (N) .
The five Proqram Keys serve to recall orstore programs within the amplifier s memory. To recall any stored program, first select
thecorrect bank by pressing the Bank A/B Key (M) until thedesired LED is illuminated. Then press the appropriate Program Key. A
small LED will illuminate to show which program has been selected.
To recall any program, select the desired bank, then press and QUICKLY RELEASE the desired program key.
To store a program, select the desired bank, then press the desired Program Key and HOLD IT IN UNTIL THE LED STOPS
FLASHING. The program is now stored in the selected location.
At any time, LEDs will be illuminated on both the Bank A/B Key and one Program Key. If a program has been recalled, but not
modified the Proqram Key LED will remain constantly lit. Assoon as the Programax 10 detects a change in a program, the LED on
the Program Key will startto flash off-and-on. This flashing LED serves as a reminder that a prog ram has been modified. Amodified
program can be stored as previously described.
BRT Key (O) _ .... .
The BRT (Briqht) Key adds a preset high frequency equalization curve or “brightness boost 1 to the sound of the amplifier An
LED on the BRT Key will illuminate when the key is pressed or when this parameter is being used within a program. Function o the
High EQ Control (I) and Presence Control (J) may be somewhat reduced when the Bright feature is in use.
The Bright function is a programmable parameter, and may be stored as a part of any program.
Thick Key (P) ...... e .
The Thick Key adds a preset mid-band equalization boost, and is commonly used in conjunction with high level Saturation
Control (D) settings. When the Thick function is activated, the high frequencies may become less pronounced due to tthe fullness
added by the boosted midrange frequencies. In addition, normal function of the Equalization Controls, particularly the Mid EQ and
Mid Shift Controls, may be less effective when the Thick function is in use.
The Thick function is a programmable parameter, and may be stored as a part of any program.
The EFX1 (Etfects Loop#1) Key adds a pre-EQ effects loop to the circuit. Access to this effects loop is via the Pre-EQ Patch Jack
(W) on the rear panel. Please note that this effects loop operates at low voltage levels (-14 dBV) and is designed to drive low level
effects devices. Most battery-operated effects devices fall into this category For best results in etfects loop selection, consult the
operating instructions for the effects devices to be used.
This effects loop is a programmable parameter, and may be enabled as a part of any program.
E } Effects Loop #2) Key adds a post-EQ effects loop to the circuit. Access to this loop is via the Post-EQ Patch Jack (X)
on the rear panel. . ,
Thiseffects loop operates at line level voltage <0 dBV and above), and is designed to accommodate professional line level effects
devices. ... „ .
Signal return levels for Effects Loop #2 are adjustable on the rear panel. This adjustment capability allows gain dif-erences
caused by effects devices to be minimized.
This effects loop is a programmable parameter, and may be enabled as a part of any program.
M The^ArffManual) Key provides the means of “overriding” the programmed functions of the amplifier. When the MAN key is
pressed, all controls are returned to their manual (actual setting) positions, A new program may now be created, without altering
any stored programs.
