Peavey PV 14AT User Manual

44
45
46
47
48
49
50
51
PV14AT/PV14BT Front Panel
46
49
50
51
45
47 48
LEVEL
min max
HIGH
LOW
0
-
+
min max
0
-
+
min max
PAN
c
RL
left right
EFX
min max
AUX
min max
LEVEL
COMP
min max
SIGNAL
CLIP
GAIN
3.5mm STEREO
MAIN
OUTPUTS
STEREO IN
FS
AUX SEND
MAIN L+R
1
1
2345/6
7/8
min max
DIRECT OUT
RL
L
L
R
R
PHANTOM POWER
48V
USB A
SOLO/MAIN
CONTROL ROOM
SOLO/MAIN
USB
min max
HEADPHONE/
SOLO/MAIN
DIRECT OUT
SOLO
SOLO
SOLO SOLO SOLO SOLO SOLO
5
6R
L
R
L
10
9
R
L
R
L
Press to
Select
Press to
Select
or edit
EFX SELECTMEDIA SELECT
DIGITAL EFFECT/MEDIA PLAYBACK
USB MEDIA PLAYBACK
EFFECts
media
min max
min max
comp
DIRECT OUT DIRECT OUT
HI PASS
MIC MUTEMUTE
MASTER
min max
RETURN TO MAIN RETURN TO AUX
DIGITAL
MEDIA CHANNEL
LEVEL A/B
min max
REC LEVEL
min max
RECORD LEVEL
min max
TO CONTROL ROOM
min max
ANALOG
MEDIA CHANNEL
RL
EFX
AUX
STEREO IN LEVEL
min max
ENABLE
A/B SELECT
B/REC
KOSMOS-C
min max
min max
HIGH
LOW
USB A
USB B
Bluetooth
MONO
(SUM)
STEREO
A
B/
REC
10 INPUT STEREO MIXER
WITH DIGITAL EFFECTS, MEDIA PLAYBACK AND BLUETOOTH
EQ BYPASS EQ BYPASS EQ BYPASS EQ BYPASS
PAIRING
MID-MORPH
0
low high
-
+
LEVEL
min max
HIGH
LOW
0
-
+
min max
0
-
+
min max
PAN
c
RL
left right
EFX
min max
AUX
min max
COMP
min max
GAIN
2
min max
comp
HI PASS
MID-MORPH
0
low high
-
+
LEVEL
min max
HIGH
LOW
0
-
+
min max
0
-
+
min max
PAN
c
RL
left right
EFX
min max
AUX
min max
GAIN
3
min max
HI PASS
MID-MORPH
0
low high
-
+
LEVEL
min max
HIGH
LOW
0
-
+
min max
0
-
+
min max
PAN
c
RL
left right
EFX
min max
AUX
min max
GAIN
4
min max
HI PASS
MID-MORPH
0
low high
-
+
LEVEL
min max
HIGH
LOW
0
-
+
min max
0
-
+
min max
BAL
c
RL
left right
AUX
min max
GAIN
5/6
min max
MID
LEVEL
min max
HIGH
LOW
0
-
+
min max
0
-
+
min max
0
-
+
min max
0
-
+
min max
BAL
c
RL
left right
AUX
min max
GAIN
7/8
1 2 3 4 5/6 7/8
min max
MID
PV 10AT
PV 10
ELECTRIC GUITAR PRE-SHAPE
9/10
9/10
EFX
MUTE
SOLO
SOLO
1/4”-Hi-Z CH.4 Only
SIGNAL
CLIP
SIGNAL
CLIP
SIGNAL
CLIP
SIGNAL
CLIP
SIGNAL
CLIP
MUTEMUTEMUTEMUTEMUTE
Auto-
TUNE
Auto-TUNE
AT AT

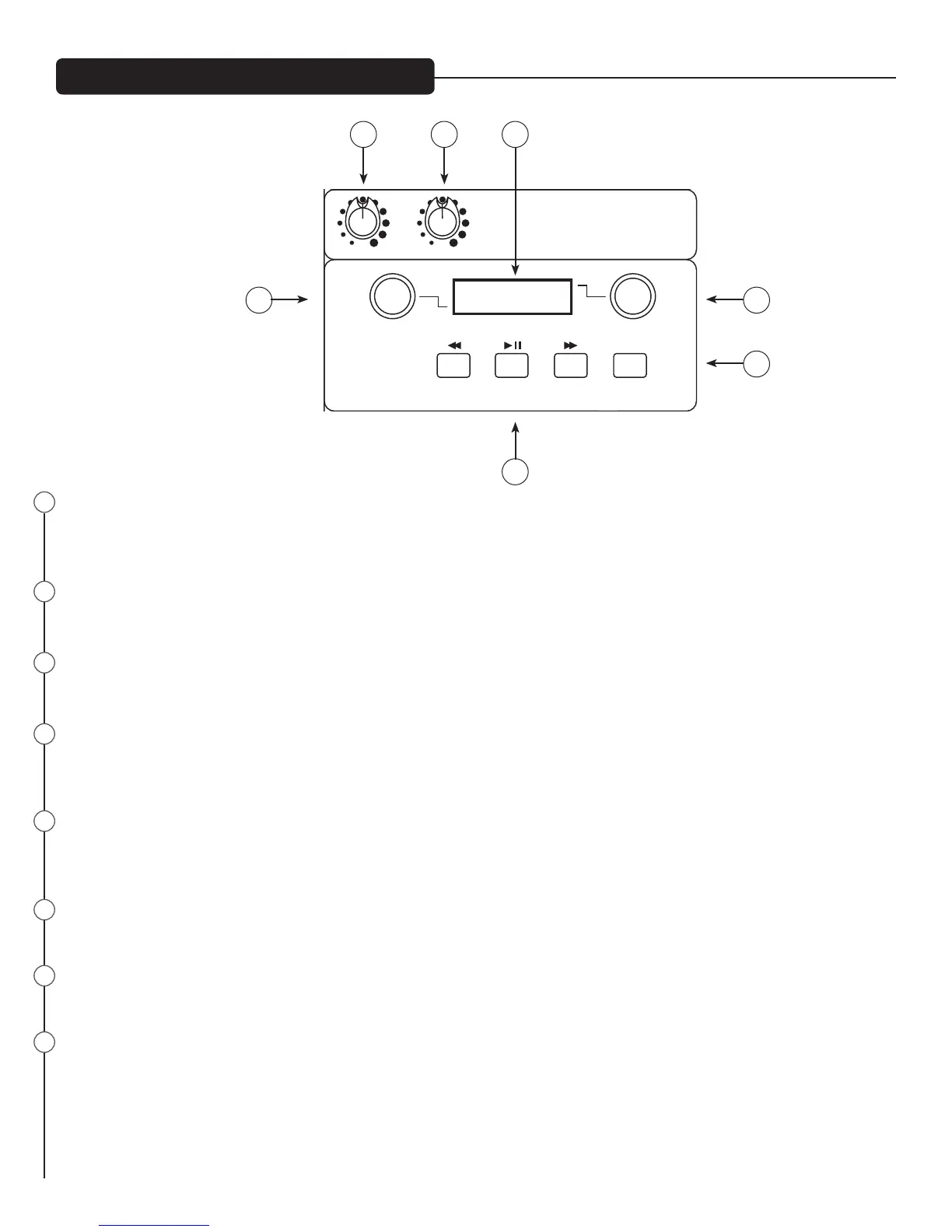

CONTROL ROOM MONITOR OUTPUT B / RECORD OUT
is pair of outputs can either serve as your "B" Record Monitor Output; or, with the B/REC switch (42) down, as an independently controlled
Record Output. NOTE: When the B/REC switch is down, the A/B SELECT switch becomes disabled, and this output is output is controlled by the
B/REC control.
USB RECORD LEVEL KNOB
Controls the level of signal sent to the USB B connector on the back of the mixer. e recommended setting is near 12:00, but a wide range is
available to accommodate varying levels and sensitivites.
CONTROL ROOM LEVEL
Controls the level of signal returning from the USB B connector on the back of the mixer. e signal is routed to the control room and head-
phone outputs, for multitrack recordings on a DAW. e recommended setting is near 12:00.
MEDIA AND EFFECTS LCD DISPLAY
e top row of this LCD displays the currently selected Eect and the bottom row displays the statusof the MP3 Player, which can be used for
navigating the folders on the USB drive or displaying the current song playing. e bottom line will also briey display the Bluetooth status
during power on, power o, and memory clearing.
MEDIA SELECT
Once a USB device is connected in channel 8, you can use the “Media Select” encoder to navigate through the folders/songs on the drive.
Once the desired le is displayed on the screen, press the Media Select knob to cue that le. Use the controls on the mixer for play, pause,
forward and reverse.
EFX SELECT KNOB
See detailed description on the following page.
MEDIA PLAYBACK CONTROLS
ese controls allow you to play, pause and scroll though digital media via USB jack.
AUTO-TUNE MODE BUTTON (PV14AT ONLY)
Pressing this switch changes the top line of the LCD between Auto-Tune Edit Mode and EFX Edit Mode. is funtion is not available in
the PV14BT.
