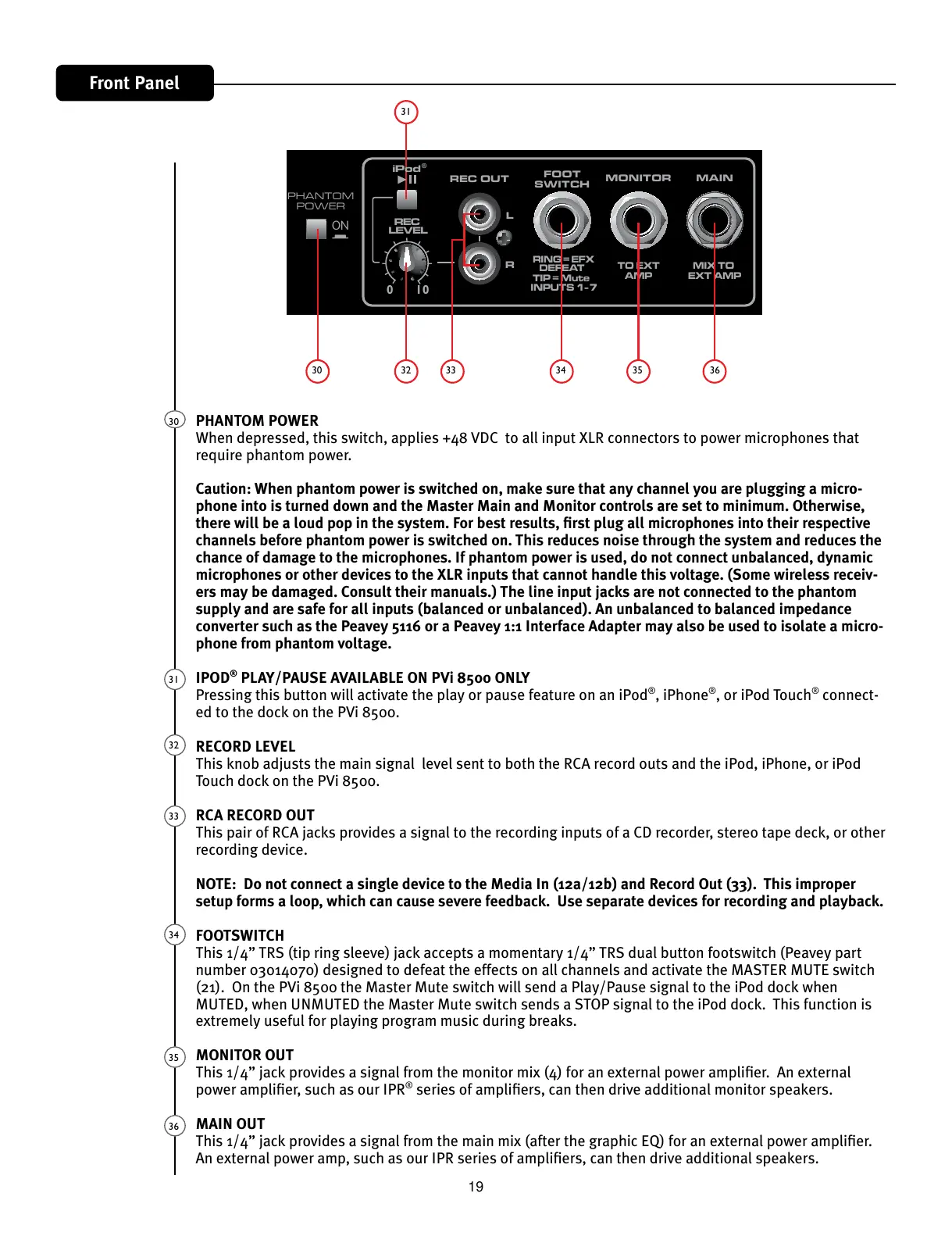

When depressed, this switch, applies +48 VDC to all input XLR connectors to power microphones that
require phantom power.













Pressing this button will activate the play or pause feature on an iPod
®
, iPhone
®
, or iPod Touch
®
connect-
ed to the dock on the PVi 8500.

This knob adjusts the main signal level sent to both the RCA record outs and the iPod, iPhone, or iPod
Touch dock on the PVi 8500.

This pair of RCA jacks provides a signal to the recording inputs of a CD recorder, stereo tape deck, or other
recording device.



This 1/4” TRS (tip ring sleeve) jack accepts a momentary 1/4” TRS dual button footswitch (Peavey part
number 03014070) designed to defeat the effects on all channels and activate the MASTER MUTE switch
(21). On the PVi 8500 the Master Mute switch will send a Play/Pause signal to the iPod dock when
MUTED, when UNMUTED the Master Mute switch sends a STOP signal to the iPod dock. This function is
extremely useful for playing program music during breaks.

This 1/4” jack provides a signal from the monitor mix (4) for an external power amplier. An external
power amplier, such as our IPR
®
series of ampliers, can then drive additional monitor speakers.

This 1/4” jack provides a signal from the main mix (after the graphic EQ) for an external power amplier.
An external power amp, such as our IPR series of ampliers, can then drive additional speakers.
L
R
REC OUT
RING = EFX
DEFEAT
INPUTS 1- 7
TIP = Mute
TO EXT
AMP
MIX TO
EXT AMP
FOOT
SWITCH
MONITOR
MAIN
REC
LEVEL
ON
PHANTOM
POWER
0 10
iPod
®
30
31
32 33 34 35 36
