23
Features and specifications subject to change without notice.
Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian, MS • 39305
(601) 483-5365 • FAX (601) 486-1278 • www.peavey.com • EX000139 • ©2011

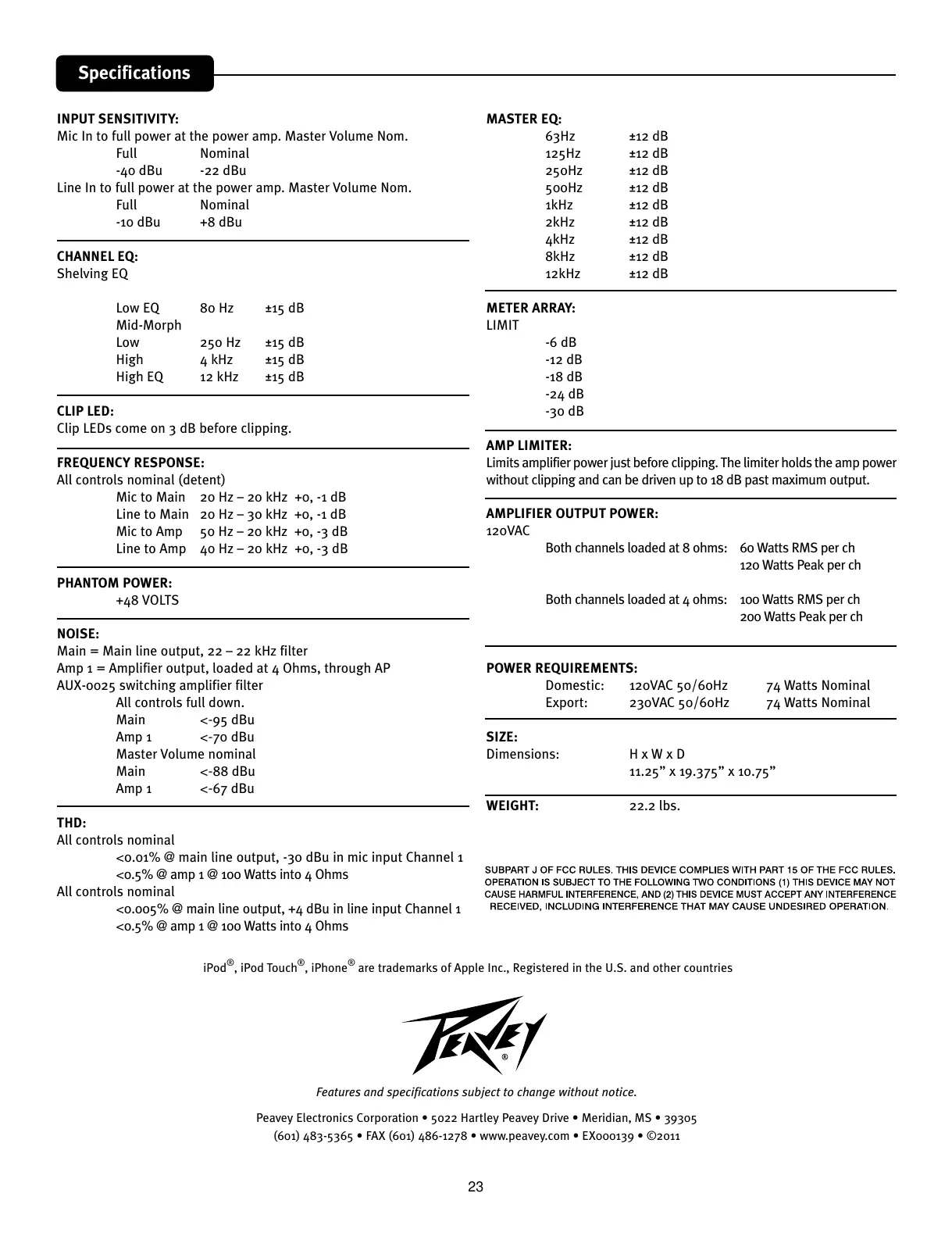

Mic In to full power at the power amp. Master Volume Nom.
Full Nominal
-40 dBu -22 dBu
Line In to full power at the power amp. Master Volume Nom.
Full Nominal
-10 dBu +8 dBu
Shelving EQ
Low EQ 80 Hz ±15 dB
Mid-Morph
Low 250 Hz ±15 dB
High 4 kHz ±15 dB
High EQ 12 kHz ±15 dB
Clip LEDs come on 3 dB before clipping.
All controls nominal (detent)
Mic to Main 20 Hz – 20 kHz +0, -1 dB
Line to Main 20 Hz – 30 kHz +0, -1 dB
Mic to Amp 50 Hz – 20 kHz +0, -3 dB
Line to Amp 40 Hz – 20 kHz +0, -3 dB
+48 VOLTS
Main = Main line output, 22 – 22 kHz filter
Amp 1 = Amplifier output, loaded at 4 Ohms, through AP
AUX-0025 switching amplifier filter
All controls full down.
Main <-95 dBu
Amp 1 <-70 dBu
Master Volume nominal
Main <-88 dBu
Amp 1 <-67 dBu
All controls nominal
<0.01% @ main line output, -30 dBu in mic input Channel 1
<0.5% @ amp 1 @ 100 Watts into 4 Ohms
All controls nominal
<0.005% @ main line output, +4 dBu in line input Channel 1
<0.5% @ amp 1 @ 100 Watts into 4 Ohms
63Hz ±12 dB
125Hz ±12 dB
250Hz ±12 dB
500Hz ±12 dB
1kHz ±12 dB
2kHz ±12 dB
4kHz ±12 dB
8kHz ±12 dB
12kHz ±12 dB
LIMIT
-6 dB
-12 dB
-18 dB
-24 dB
-30 dB
Limits amplifier power just before clipping. The limiter holds the amp power
without clipping and can be driven up to 18 dB past maximum output.
120VAC
Both channels loaded at 8 ohms: 60 Watts RMS per ch
120 Watts Peak per ch
Both channels loaded at 4 ohms: 100 Watts RMS per ch
200 Watts Peak per ch
Domestic: 120VAC 50/60Hz 74 Watts Nominal
Export: 230VAC 50/60Hz 74 Watts Nominal
Dimensions: H x W x D
11.25” x 19.375” x 10.75”
22.2 lbs.
iPod
®
, iPod Touch
®
, iPhone
®
are trademarks of Apple Inc., Registered in the U.S. and other countries
