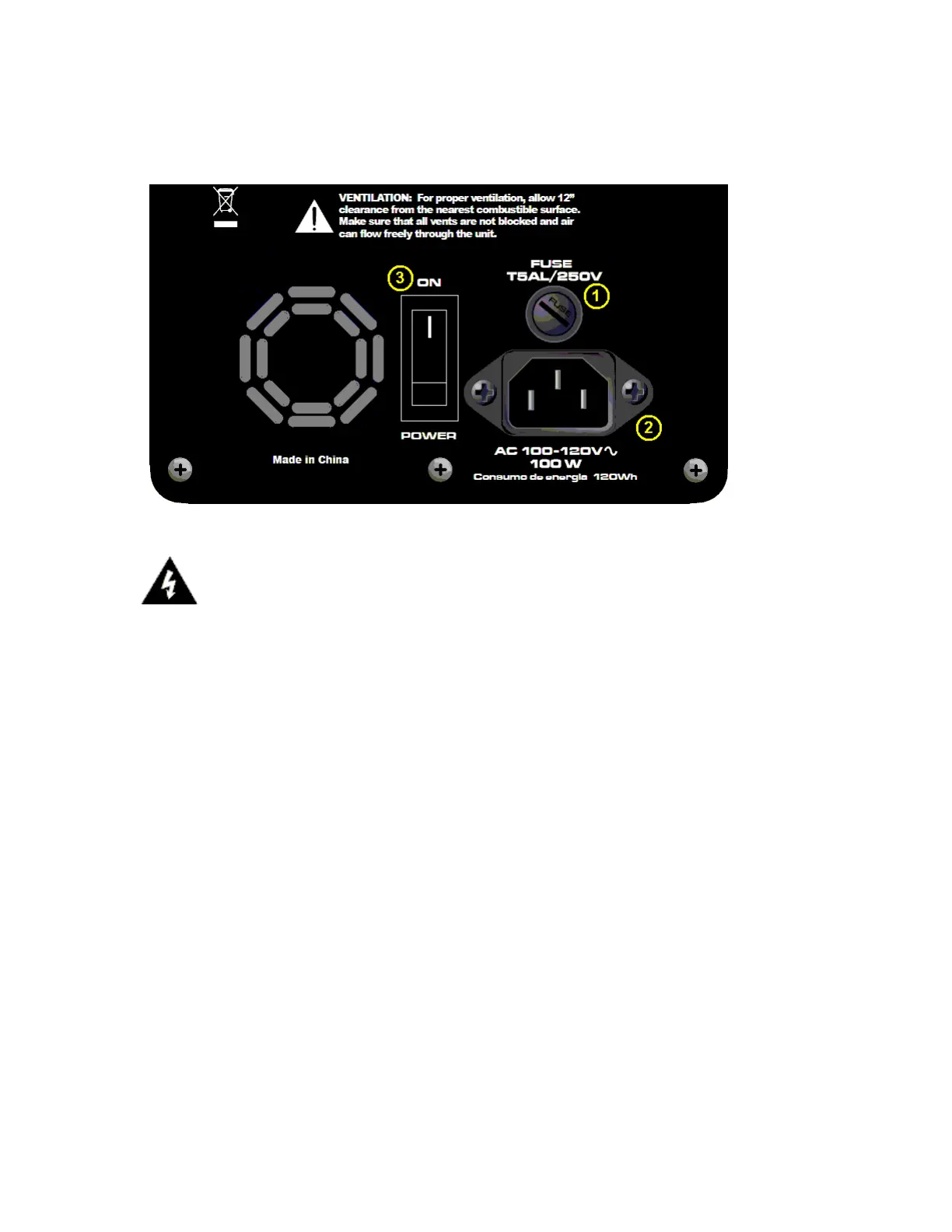

REAR PANEL
BOTTOM
FUSE (1)
The unit is AC power line fuse protected from overloads and fault conditions with
a slow-blow 5 x 20mm 250V fuse. This fuse is located within the cap of the fuse
enclosure just above the IEC power cord connection. If the fuse fails, THE FUSE
MUST BE REPLACED WITH THE SAME TYPE AND VALUE IN ORDER TO
AVOID DAMAGE TO THE EQUIPMENT AND TO PREVENT VOIDING THE
WARRANTY!
The fuse in the PVX™p 10 Bluetooth® can be replaced with a time-delay type 5
x 20 mm size 250V rated fuse.
For 100-120VAC operation, a fuse rated at 5 amps should be used. In the USA,
types GDC, GMC, 215, 218, and 477 cartridge-style 5 x 20 mm size fuses with a
5 amp 250V rating can be used. The fuse should conform to the international
fuse classification “T5AL”.
For the Export model, using an input power voltage range of from 220VAC to
240VAC, use a 2.5 amp rated, 250V 5 x 20 mm cartridge type time-delay fuse,
which conforms to the international fuse classification “T2.5AL”.
If the unit continues to blow replacement fuses, do not keep replacing them- it
should be taken to a qualified service center for repair.
To replace the fuse, be sure to remove the IEC power cord from the IEC socket
(2).
Remove the cap to the fuse enclosure (1) using a flat blade screwdriver tip
inserted into the fuse cap slot. Push the cap in and turn the cap CCW and
To Next Page
