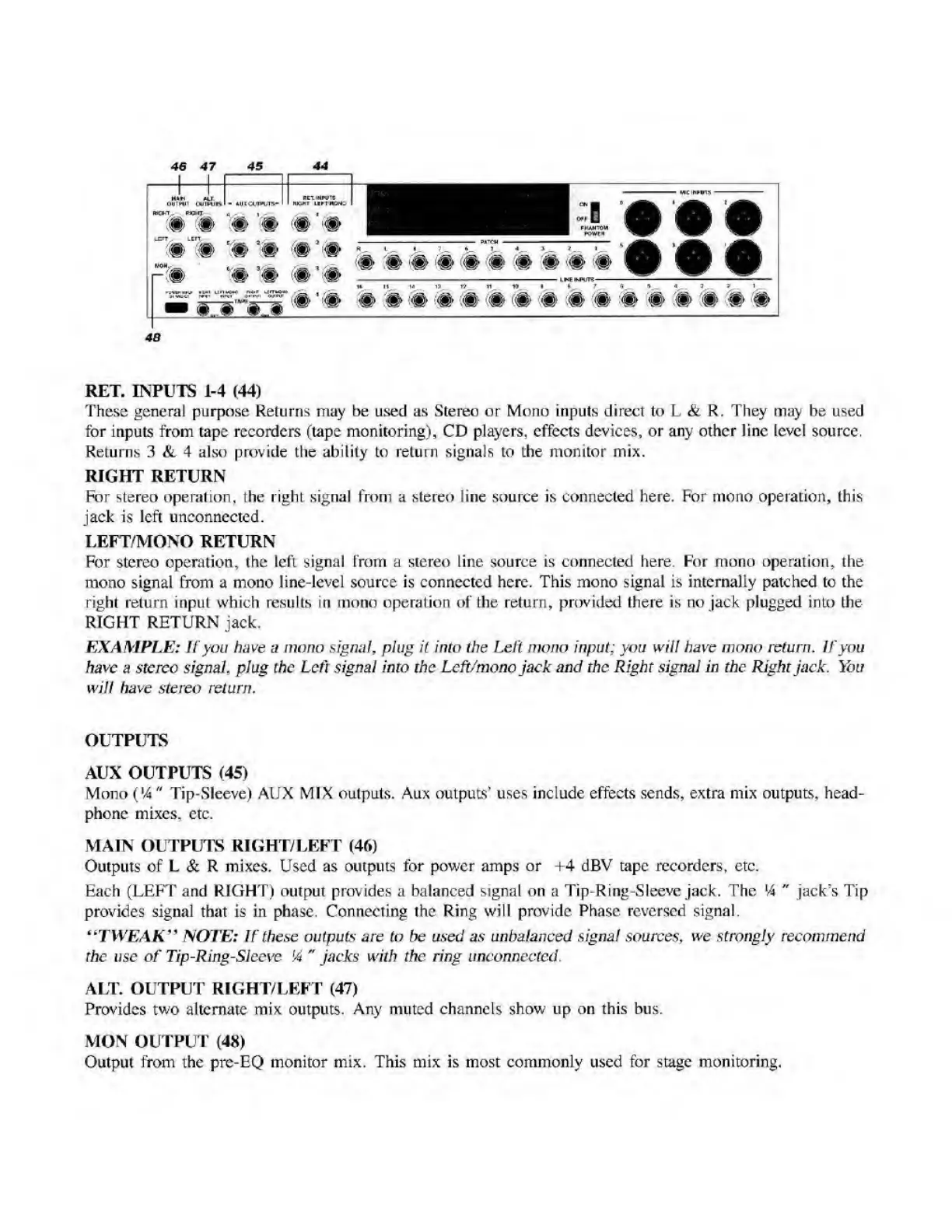

45
44
46 47
RET. INPUTS 1-4 (44)
These general purpose Returns may be used as Stereo or Mono inputs direct to L & R. They may be used
for inputs from tape recorders (tape monitoring), CD players, effects devices, or any other line level source.
Returns 3 & 4 also provide the ability to return signals to the monitor mix.
RIGHT RETURN
For stereo operation, the right signal from a stereo line source is connected here. For mono operation, this
jack is left unconnected.
LEFT/MONO RETURN
For stereo operation, the left signal from a stereo line source is connected here. For mono operation, the
mono signal from a mono line-level source is connected here. This mono signal is internally patched to the
right return input which results in mono operation of the return, provided there is no jack plugged into the
RIGHT RETURN jack.
EXAMPLE: If you have a mono signal, plug it info the Left mono input: you will have mono return. If you
have a stereo signal . plug the Left signal into the Left/mono jack and the Right signal in the Right jack. You
will have stereo return.
OUTPUTS
AUX OUTPUTS (45)
Mono (Va " Tip-Sleeve) AUX MIX outputs. Aux outputs' uses include effects sends, extra mix outputs, head¬
phone mixes, etc.
MAIN OUTPUTS RIGHT/LEFT (46)
Outputs of L & R mixes. Used as outputs for power amps or +4 dBV tape recorders, etc.
Each (LEFT and RIGHT) output provides a balanced signal on a Tip Ring-Sleeve jack. The Va " jack's Tip
provides signal that is in phase. Connecting the Ring will provide Phase reversed signal.
“TWEAK” NOTE: If these outputs are to be used as unbalanced signal sources , we strongly recommend
the use of Tip-Ring-Sleeve Va " jacks with the ring unconnected.
AIT. OUTPUT RIGHT/LEFT (47)
Provides two alternate mix outputs. Any muted channels show up on this bus.
MON OUTPUT (48)
Output from the pre-EQ monitor mix. This mix is most commonly used for stage monitoring.
