Peavey Versamix - Page 12

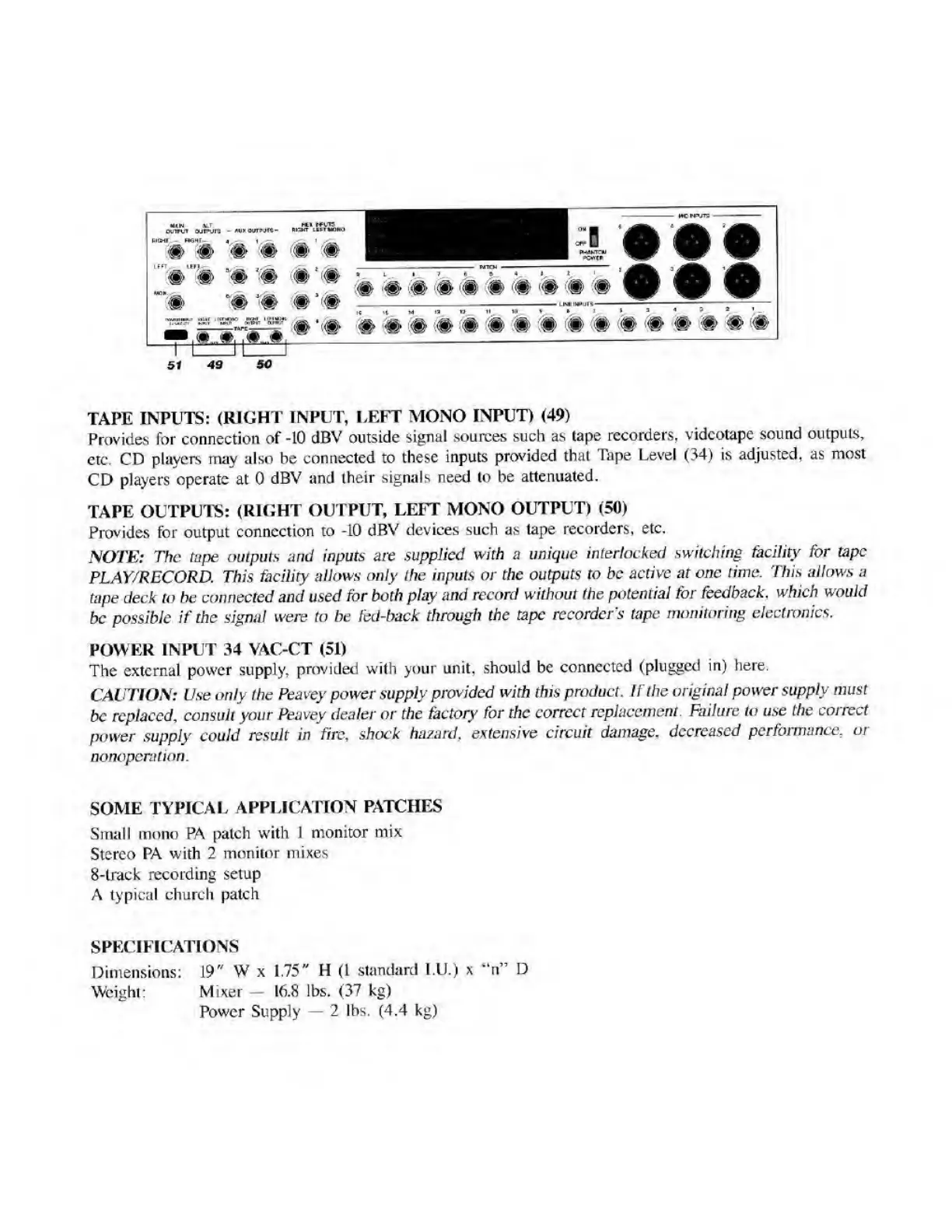

51 49 50
TAPE INPUTS: (RIGHT INPUT, LEFT MONO INPUT) (49)
Provides for connection of -10 dBV outside signal sources such as tape recorders, videotape sound outputs,
etc. CD players may also be connected to these inputs provided that Tape Level (34) is adjusted, as most
CD players operate at 0 dBV and their signals need to be attenuated.
TAPE OUTPUTS: (RIGHT OUTPUT, LEFT MONO OUTPUT) (50)
Provides for output connection to -10 dBV devices such as tape recorders, etc.
NOTE: The tape outputs and inputs are supplied with a unique interlocked switching facility for tape
PLAY/RECORD. This facility allows only the inputs or the outputs to be active at one time. This allows a
tape deck to be connected and used for both play and record without the potential tor feedback , which would
be possible if the signal were to be fed-back through the tape recorders tape monitoring electronics.
POWER INPUT 34 VAC-CT (51)
The external power supply, provided with your unit, should be connected (plugged in) here.
CAUTION: Use only the Peavey power supply provided with this product. If the original power supply must
be replaced , consult your Peavey dealer or the factory for the correct replacement. Failure to use the correct
power supply could result in fire, shock hazard, extensive circuit damage, decreased performance, or
nonoperation.
SOME TYPICAL APPLICATION PATCHES
Small mono PA patch with 1 monitor mix
Stereo PA with 2 monitor mixes
8-lrack recording setup
A typical church patch
SPECIFICATIONS
Dimensions: 19" W x 1.75" H (1 standard I.U.) x “n” D
Weight: Mixer — 16.8 lbs. (37 kg)
Power Supply — 2 lbs. (4.4 kg)
