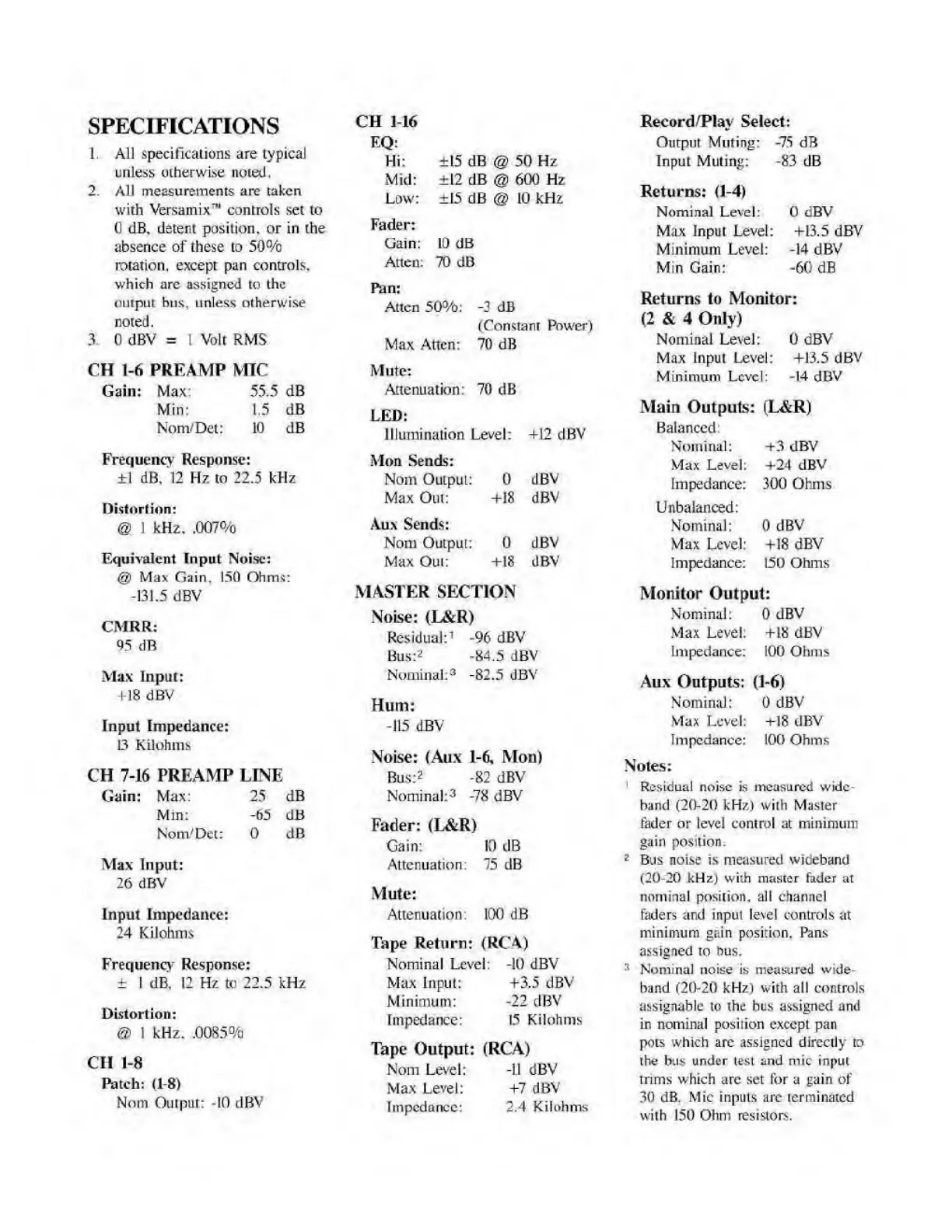

SPECIFICATIONS
1. All specifications are typical
unless otherwise noted.
2. All measurements are taken
with Versamix ™ controls set to
0 dB, detent position, or in the
absence of these to 50°/o
rotation, except pan controls,
which arc assigned to the
output bus, unless otherwise
noted.
3. 0 dBV = 1 Volt RMS
CH 1-6 PREAMP MIC
Gain: Max: 55.5 dB
Min: 1.5 dB
NonVDel: 10 dB
Frequency Response:
±1 dB, 12 Hz to 22.5 kHz
Distortion:
@ 1 kHz. .007%
Equivalent Input Noise:
@ Max Gain, 150 Ohms:
-131.5 dBV
CMRR:
95 dB
Max Input:
+18 dBV
Input Impedance:
13 Kilohms
CH 7-16 PREAMP LINE
Gain: Max: 25 dB
Mm: -65 dB
Nom/Dct: 0 dB
Max Input:
26 dBV
Input Impedance:
24 Kilohms
Frequency Response:
± 1 dB. 12 Hz to 22.5 kHz
Distortion:
@ I kHz. .0085%
CH 1-8
Patch: (1-8)
Nom Output: -10 dBV
CH 1-16
EQ:
Hi:
±15 dB @ 50 Hz
Mid:
±12 dB <g> 600 Hz
Low: ±15 dB @ 10 kHz
Fader:
Gain: 10 dB
Atten: 70 dB
Pan:
Attcn 50°/o: -3 dB
(Constant Power)
Max Attcn: 70 dB
Mute:
Attenuation: 70 dB
LED:
Illumination Level: +12 dBV
Mon Sends:
Nom Output: 0 dBV'
Max Out: +18 dBV
Aux Sends:
Nom Output: 0 dBV
Max Out: +18 dBV
MASTER SECTION
Noise: (L&R)
Residual: 1 -96 dBV
Bus: 2 -84.5 dBV
Nominal: 3 -82.5 dBV
Hum:
-115 dBV
Noise: (Aux 1-6, Mon)
Bus: 2 -82 dBV
Nominal: 3 -78 dBV
Fader: (L&R)
Gain: 10 dB
Attenuation: 75 dB
Mute:
Attenuation: 100 dB
Tape Return: (RCA)
Nominal Level: -10 dBV
Max Input: +3.5 dBV
Minimum: -22 dBV
Impedance: 15 Kilohms
Tape Output: (RCA)
Nom Level: -11 dBV
Max Level: +7 dBV
Impedance: 2.4 Kilohms
Record/Plav Select:
Output Muting: -75 dB
Input Muting: -83 dB
Returns: (1-4)
Nominal Level: 0 dBV
Max Input Level: +13.5 dBV
Minimum Level: -14 dBV
Min Gain: -60 dB
Returns to Monitor:
(2 & 4 Only)
Nominal Level: 0 dBV
Max Input Level: +13.5 dBV
Minimum Level: -14 dBV
Main Outputs: (L&R)
Balanced:
Nominal: +3 dBV
Max Level: +24 dBV
Impedance: 300 Ohms
Unbalanced:
Nominal: 0 dBV
Max Level: +18 dBV
Impedance: 150 Ohms
Monitor Output:
Nominal: 0 dBV
Max Level: +18 dBV
Impedance: 100 Ohms
Aux Outputs: (1-6)
Nominal: 0 dBV
VIax Level: +18 dBV
Impedance: 100 Ohms
Notes:
' Residual noise is measured wide¬
band (20-20 kHz) with Master
fader or level control at minimum
gain position.
2 Bus noise is measured wideband
(20-20 kHz) with master fader at
nominal position, all channel
taders and input level controls at
minimum gain position. Pans
assigned to bus.
3 Nominal noise is measured wide¬
band (20-20 kHz) with all controls
assignable to the bus assigned and
in nominal position except pan
pots which are assigned directly to
the bus under test and mic input
trims which are set tor a gain of
30 dB. Mic inputs arc terminated
with 150 Ohm resistors.
