Peavey Versamix - Page 8

I I
“-12
“-13"
f.'ADE IN U.S.A.
:b:
JK. HAY
— REC
□
| RETURN 1
0 .
O: .O:
L B
PAN.
0 RETURN 2# i #
b: O:
15- t R
LEVEL PAN
RETURN 3
. 0 .
O O O
— 15- - IS. L R
MO NITOR _ LEVEL _ PAN
RFTURNJ
• 0 • * ° • *ci*
:0: :0: O.
13-
MOHITOR
L n
LEVEL PAN
VERSAMIX
ALT □ RETURnQ
SOLO SOlO
LR □ SOLO Q
MUTE L—J TO
MAIN
. .10- —
—
— — -0-
-
■ *>—
—
—
— -.1 -
— .»—
—
■
—
0-
—
0-
9-
— —
-
-13* —
—
4-
X! -
-
i
i 1
a a
i
"S
“S
RIGHT HEADPHONE
32
33
30
31
20
29
27
.26

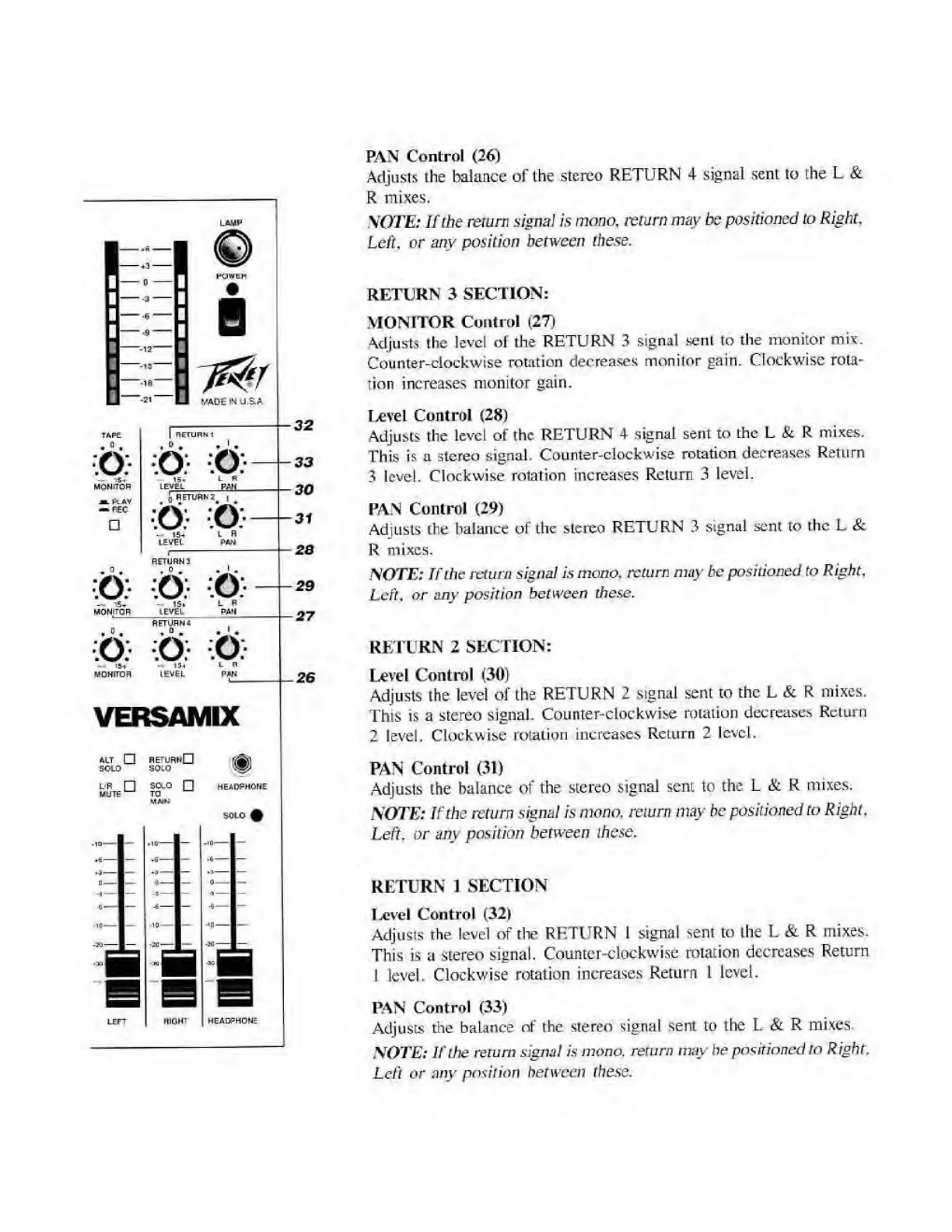

PAN Control (26)
Adjusts the balance of the stereo RETURN 4 signal sent to the L &
R mixes.
.VOTE; If the reiurn signal is mono, return may be positioned to Right .
Left, or any position between these.
RETURN 3 SECTION:
MONITOR Control (27)
Adjusts the level of the RETURN 3 signal sent to the monitor mix.
Counter-clockwise rotation decreases monitor gain. Clockwise rota¬
tion increases monitor gain.
Level Control (28)
Adjusts the level of the RETURN 4 signal sent to the L & R mixes.
This is a stereo signal. Counter-clockwise rotation decreases Return
3 level. Clockwise rotation increases Rctum 3 level.
PAN Control (29)
Adjusts the balance of the stereo RETURN 3 signal sent to the L &
R mixes.
•VOTE; If the return signal is mono, return may be positioned to Right.
Left, or any position between these.
RETURN 2 SECTION:
Level Control (30)
Adjusts the level of the RETURN 2 signal sent to the L & R mixes.
This is a stereo signal. Counter-clockwise rotation decreases Return
2 level. Clockwise rotation increases Return 2 level.
PAN Control (31)
Adjusts the balance of the stereo signal sent to the L & R mixes.
NOTE: If the return signal is mono, return may be positioned to Right.
Left, or any position between these.
RETURN 1 SECTION
I^evel Control (32)
Adjusts the level of the RETURN I signal sent to the L & R mixes.
This is a stereo signal. Counter-clockwise rotation decreases Return
1 level. Clockwise rotation increases Return 1 level.
PAN Control (33)
Adjusts the balance of the stereo signal sent to the L & R mixes.
NOTE: If the return signal is mono, return may be positioned to Right.
Left or any position between these.
