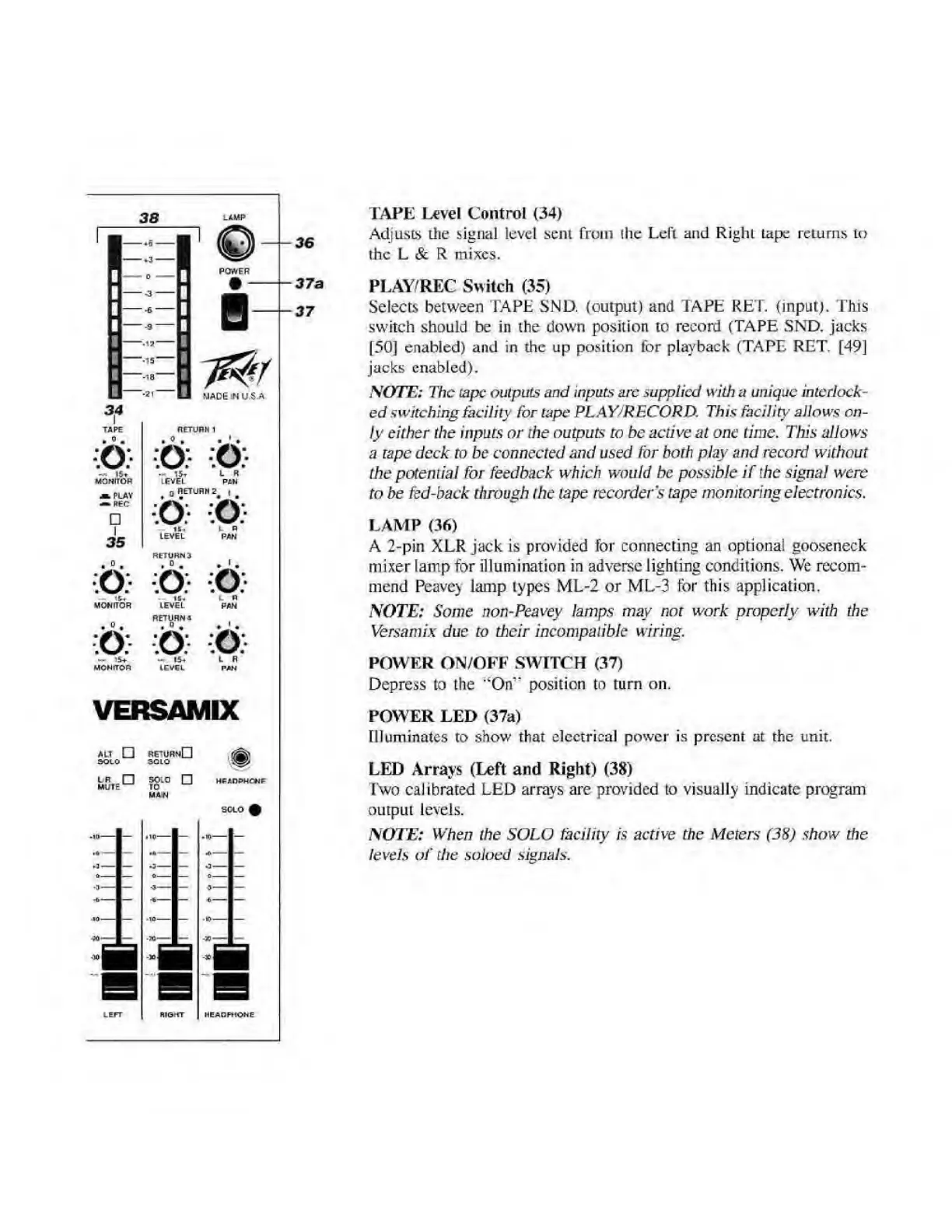

TAPE Level Control (34)
Adjusts the signal level sent from the Left and Right tape returns to
the L & R mixes.
PLAY/REC Switch (35)
Selects between TAPE SND. (output) and TAPE RET. (input). This
switch should be in the down position to record (TAPE SND. jacks
[50] enabled) and in the up position for playback (TAPE RET. [49]
jacks enabled).
NOTE: The tape outputs and inputs aie supplied with a unique interlock¬
ed switching facility for tape PLAY/RECORD. This facility allows on¬
ly either the inputs or the outputs to be active at one time. This allows
a tape deck to be connected and used for both play and record without
the potential for feedback which would be possible if the signal were
to he fed-back through the tape recorders tape monitoring electronics.
LAMP (36)
A 2-pin XLR jack is provided for connecting an optional gooseneck
mixer lamp for illumination in adverse lighting conditions. We recom¬
mend Peavey lamp types ML-2 or ML-3 for this application.
NOTE: Some non-Peavey lamps tnav not work properly with the
Versamix due to their incompatible wiring.
POWER ON/OFF SWITCH (37)
Depress to the 'On" position to turn on.
POWER LED (37a)
Illuminates to show that electrical power is present at the unit.
LED Arrays (Left and Right) (38)
I\vo calibrated LED arrays are provided to visually indicate program
output levels.
NOTE: When the SOLO facility is active the Meters (38) show the
levels of the soloed signals.
