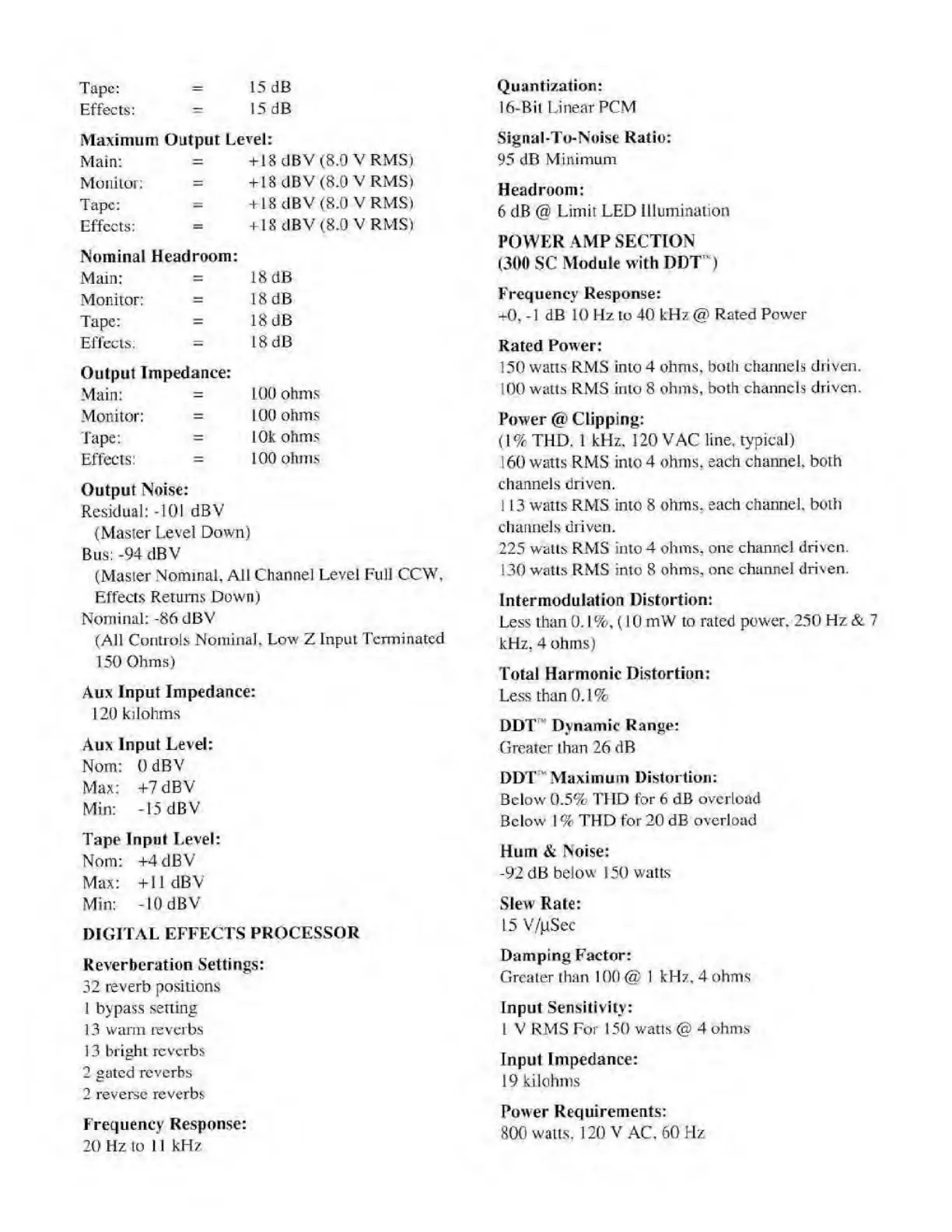

Peavey XRD 680 User Manual

Tape: = 15 dB
Effects: = 15 dB
Maximum Output Level:
Main: =
+ 18 dBV (8.0 V RMS)
Monitor: =
+ 18 dBV (8.0 V RMS)
Tape: =
+18 dBV (8.0 V RMS)
Effects: =
+ 18 dBV (8.0 V RMS)
Nominal Headroom:
Main: =
18 dB
Monitor: =
18 dB
Tape: =
18 dB
Effects; =
18 dB
Output Impedance:
Main: =
100 ohms
Monitor: =
100 ohms
Tape: =
10k ohms
Effects:
100 ohms
Output Noise:
Residual: -101 dBV
(Master Level Down)
Bus: -94 dBV
(Master Nominal, All Channel Level Full CCW,
Effects Returns Down)
Nominal: -86 dBV
(All Controls Nominal. Low Z Input Terminated
150 Ohms)
Aux Input Impedance:
120 kilohms
Aux Input Level:
Norn: 0 dBV
Max: +7 dBV
Min: -15 dBV
Tape Input Level:
Nom: +4 dBV
Max: +11 dBV
Min: -10 dBV
DIGITAL EFFECTS PROCESSOR
Reverberation Settings:
32 reverb positions
1 bypass setting
13 warm re verbs
13 bright re verbs
2 sated reverbs
2 reverse reverbs
Frequency Response:
20 Hz to 11 kHz
Quantization:
16-Bit Linear PCM
Signal-To-Noise Ratio:
95 dB Minimum
Headroom:
6 dB @ Limit LED Illumination
POWER AMP SECTION
(300 SC Module with DDT ,V )
Frequency Response:
+0, -1 dB 10 Hz to 40 kHz @ Rated Power
Rated Power:
150 watts RMS into 4 ohms, both channels driven.
100 watts RMS into 8 ohms, both channels driven.
Power (8) Clipping:
(1% THD. 1 kHz. 120 VAC line, typical)
160 watts RMS into 4 ohms, each channel, both
channels driven.
113 watts RMS into 8 ohms, each channel, both
channels driven.
225 watts RMS into 4 ohms, one channel driven.
130 watts RMS into 8 ohms, one channel driven.
Intermodulation Distortion:
Less than 0.1%, (10 mW to rated power. 250 Hz & 7
kHz, 4 ohms)
Total Harmonic Distortion:
Less than 0.1 %
DDT iv Dynamic Range:
Greater than 26 <1B
DDT :v Maximum Distortion:
Below 0.5% THD for 6 dB overload
Below’ 1% THD for 20 dB overload
Hum & Noise:
-92 dB below 150 watts
Slew Rate:
15 V/pSec
Dumping Factor:
Greater than I00@ 1 kHz. 4 ohms
Input Sensitivity:
I V RMS For 150 watts @ 4 ohms
Input Impedance:
19 kilohms
Power Requirements:
800 watts. 120 VAC, 60 Hz
