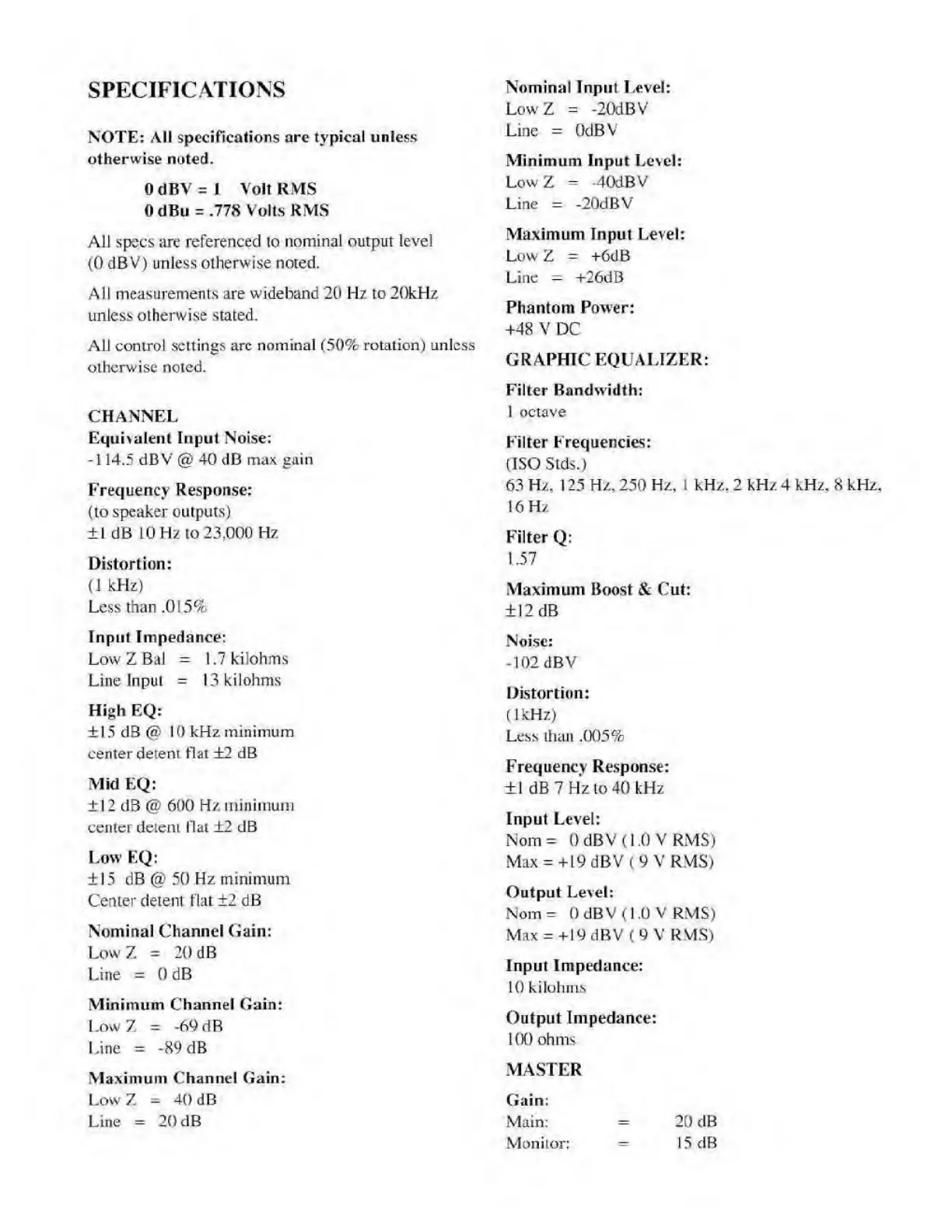

SPECIFICATIONS
NOTE:
All
specifications
are
typical
unless
otherwise
noted.
OdBV
=
1
Volt
RMS
0
dBu
=
.778
Volts
RMS
All
specs
are
referenced
to
nominal
output
level
(OdBV)
unless
otherwise
noted.
All
measurements
are
wideband
20
Hz
to
20kHz
unless
otherwise
stated.
All
control
settings
arc
nominal
(50%
rotation)
unless
otherwise
noted.
CHANNEL
Equivalent
Input
Noise:
-114.5
dB
V
@
40
dB
max
gain
Frequency
Response:
(to
speaker
outputs)
±1
dB
10
Hz
to
23.000
Hz
Distortion:
(1
kHz)
Less
than
.015%
Input
Impedance:
Low
Z
Bal
=
1.7
kilohms
Line
Input
=
13
kilohms
High
EQ:
±15
dB
@
10
kHz
minimum
center
detent
flat
±2
dB
IVlid
EQ:
±12
dB
@
600
Hz
minimum
center
detent
flat
±2
dB
Low
EQ:
±15
dB
@
50
Hz
minimum
Center
detent
flat
±2
dB
Nominal
Channel
Cain:
Low
Z
=
20
dB
Line
=
0
dB
Minimum
Channel
Gain:
Low
Z
=
-69
dB
Line
=
-89
dB
Maximum
Channel
Gain:
Low
Z
=
40
dB
Line
=
20
dB
Nominal
Input
Level:
Low
Z
=
-20dBV
Line
=
OdBV
Minimum
Input
Level:
Low
Z
=
-40dBV
Line
=
-20dBV
Maximum
Input
Level:
Low
Z
=
+6dB
Line
=
+26dB
Phantom
Power:
+48
V
DC
GRAPHIC
EQUALIZER:
Filter
Bandwidth:
1
octave
Filter
Frequencies:
(ISO
Stds.)
63
Hz,
125
Hz,
250
Hz,
1
kHz.
2
kHz
4
kHz.
8
kHz,
16
Hz
Filter
Q:
1.57
Maximum
Boost
&
Cut:
±12
dB
Noise:
-102
dBV
Distortion:
(1kHz)
Less
than
.005%
Frequency
Response:
±1
dB
7
Hz
to
40
kHz
Input
Level:
Norn
=
OdBV
(1.0
V
RtMS)
Max
=
+19
dBV
(
9
V
RMS)
Output
Level:
Nom
=
0
dBV
(1.0
V
RMS)
Max
=
+19
dBV
(
9
V
RMS)
Input
Impedance:
10
kilohms
Output
Impedance:
100
ohms
MASTER
Gain:
Main:
=
20
dB
Monitor:
=
15
dB
