POWER
OFF
l?0VAC
60 Ht FUSE
h.xmp
WARNING: ?s atom i~t-i»o>
OH 8 KCIHC »OC> 03 *» fyCM
iHiiouiwwi rci(t*i>jmuoe'jij
r 1-r-r.i '•<' r-ir,« -.r 1-AVflO
riTl«C( £*UC J>FE ?M VO.r 'OK.
iAVIS: nsou«« <><*•- mermen •
l>E MSOAMN MM>UCSI F*F UN'im I
6U C€ U»U» ryprft DFWJV0U3
1 %‘t
A IWOOUCI O*
pfavfy r.FcrmcNKa comp
MCR'KAN. fAA MfiDF IN J.SA
■ spfakpr outputs —
_. PAI ^ P&2
1 nnrt OHMS >4 tuilt OHMS
33V n«s MU. AMPI iHfH lOAO
* CHMS EACH CHANNEL
m

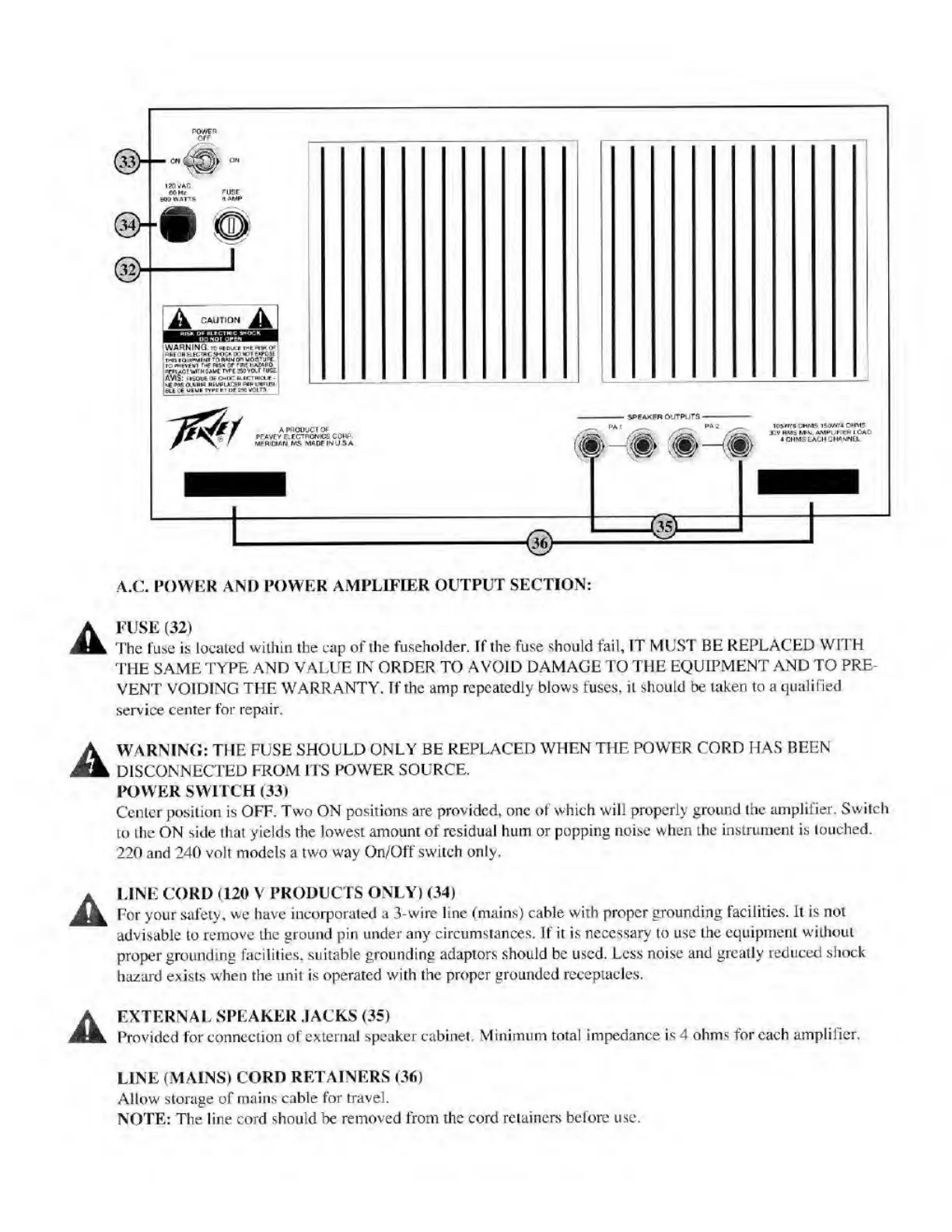

A.C. POWER AND POWER AMPLIFIER OUTPUT SECTION:
A FUSE (32)
The fuse is located within the cap of the fuseholder. If the fuse should fail, IT MUST BE REPLACED WITH
THE SAME TYPE AND VALUE IN ORDER TO AVOID DAMAGE TO THE EQUIPMENT AND TO PRE¬
VENT VOIDING THE WARRANTY. If the amp repeatedly blows fuses, it should be taken to a qualified
service center for repair.
A WARNING: THE FUSE SHOULD ONLY BE REPLACED WHEN THE POWER CORD HAS BEEN
DISCONNECTED FROM ITS POWER SOURCE.
POWER SWITCH (33)
Center position is OFF. Two ON positions are provided, one of which will properly ground the amplifier. Switch
to the ON side that yields the lowest amount of residual hum or popping noise when the instrument is touched.
220 and 240 volt models a two way On/Off switch only.
a LINE CORD (120 V PRODUCTS ONLY) (34)
^4 For your safety, we have incorporated a 3-wire line (mains) cable with proper grounding facilities. It is not
advisable to remove the ground pin under any circumstances. If it is necessary to use the equipment without
proper grounding facilities, suitable grounding adaptors should be used. Less noise and greatly reduced shock
hazard exists when the unit is operated with the proper grounded receptacles.
A EXTERNAL SPEAKER JACKS (35)
Provided for connection of external speaker cabinet. Minimum total impedance is 4 ohms for each amplifier.
LINE (MAINS) CORD RETAINERS (36)
Allow storage of mains cable for travel.
NOTE: The line cord should lie removed from the cord retainers before use.
