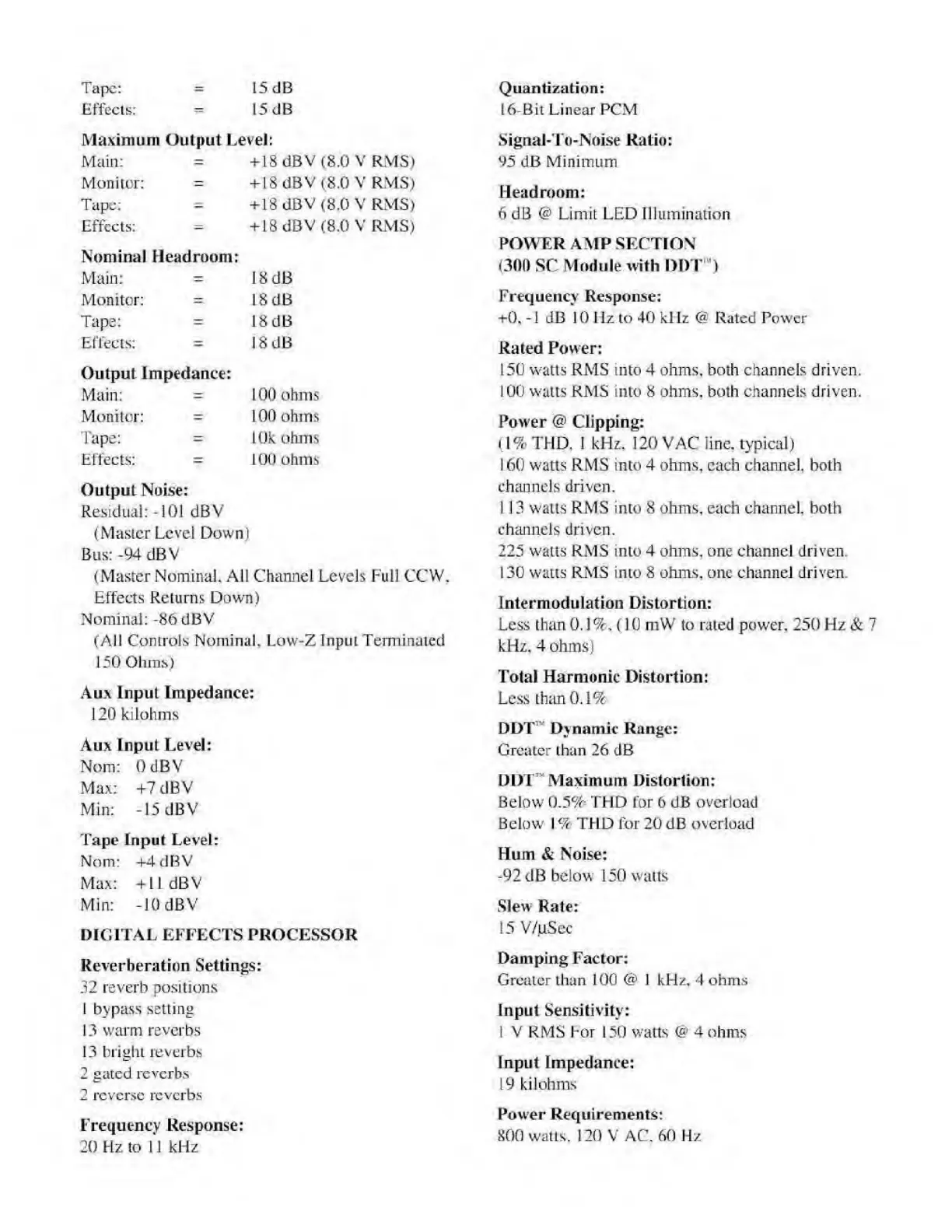

Peavey XRD 680S

Tape: = 15 dB
Effects:
15 dB
Maximum Output Level:
Main: =
+ 18 dBV (8.0 V RMS)
Monitor: =
+ 18 dBV (8.0 V RMS)
Tape: =
+ 18 dBV (8.0 V RMS)
Effects: = + 18 dBV (8.0 V RMS)
Nominal Headroom:
Main: = 18 dB
Monitor: = 18 dB
Tape: =
18 dB
Effects:
18 dB
Output Impedance:
Main: = 100 ohms
Monitor: =
100 ohms
Tape: = 10k ohms
Effects: = 1 00 ohms
Output Noise:
Residual: -101 dBV
(Master Level Down)
Bus: -94 dBV
(Master Nominal. All Channel Levels Full CCW.
Effects Returns Down)
Nominal: -86 dBV
(All Controls Nominal. Low-Z Input Terminated
150 Ohms)
Aux Input Impedance:
120 kilohms
Aux Input Level:
Norn: 0 dBV
Max: +7 dBV
Min: -15 dBV
Tape Input Level:
Norn: +4 dBV
Max: +11 dBV
Min: -10 dBV
DIGITAL EFFECTS PROCESSOR
Reverberation Settings:
32 reverb positions
1 bypass setting
13 warm reverbs
13 bright reverbs
2 gated reverbs
2 reverse reverbs
Frequency Response:
20 Hz to 1*1 kHz
Quantization:
16-Bit Linear PCM
Signal-To-Noise Ratio:
95 <iB Minimum
Headroom:
6 dB @ Limit LED Illumination
POWER AMP SECTION
(300 SC Module with DDT )
Frequency Response:
+0, -1 dB 10 Hz to 40 kHz <£ Rated Power
Rated Power:
150 watts RMS into 4 ohms, both channels driven.
100 watts RMS into 8 ohms, both channels driven.
Power @ Clipping:
(\% THD, I kHz. 120 VAC line, typical)
160 watts RMS into 4 ohms, each channel, both
channels driven.
113 w'atts RMS into 8 ohms, each channel, both
channels driven.
225 watts RMS into 4 ohms, one channel driven.
130 w'atts RMS into 8 ohms, one channel driven.
Intermodulation Distortion:
Less than 0.1%, (10 mW to rated power, 250 Hz & 7
kHz, 4 ohms)
Total Harmonic Distortion:
Less than 0.1%
DDT Dynamic Range:
Greater than 26 dB
DDT [Maximum Distortion:
Below 0.5%; THD for 6 dB overload
Below I % THD for 20 dB overload
Hum & Noise:
-92 dB below 150 watts
Slew Rate:
15 V/uSec
Damping Factor:
Greater than 100 @ 1 kHz, 4 ohms
Input Sensitivity:
1 V RMS For 150 watts @ 4 ohms
Input Impedance:
19 kilohms
Power Requirements:
800 watts. 120 V AC. 60 Hz
