Peavey XRD 680S

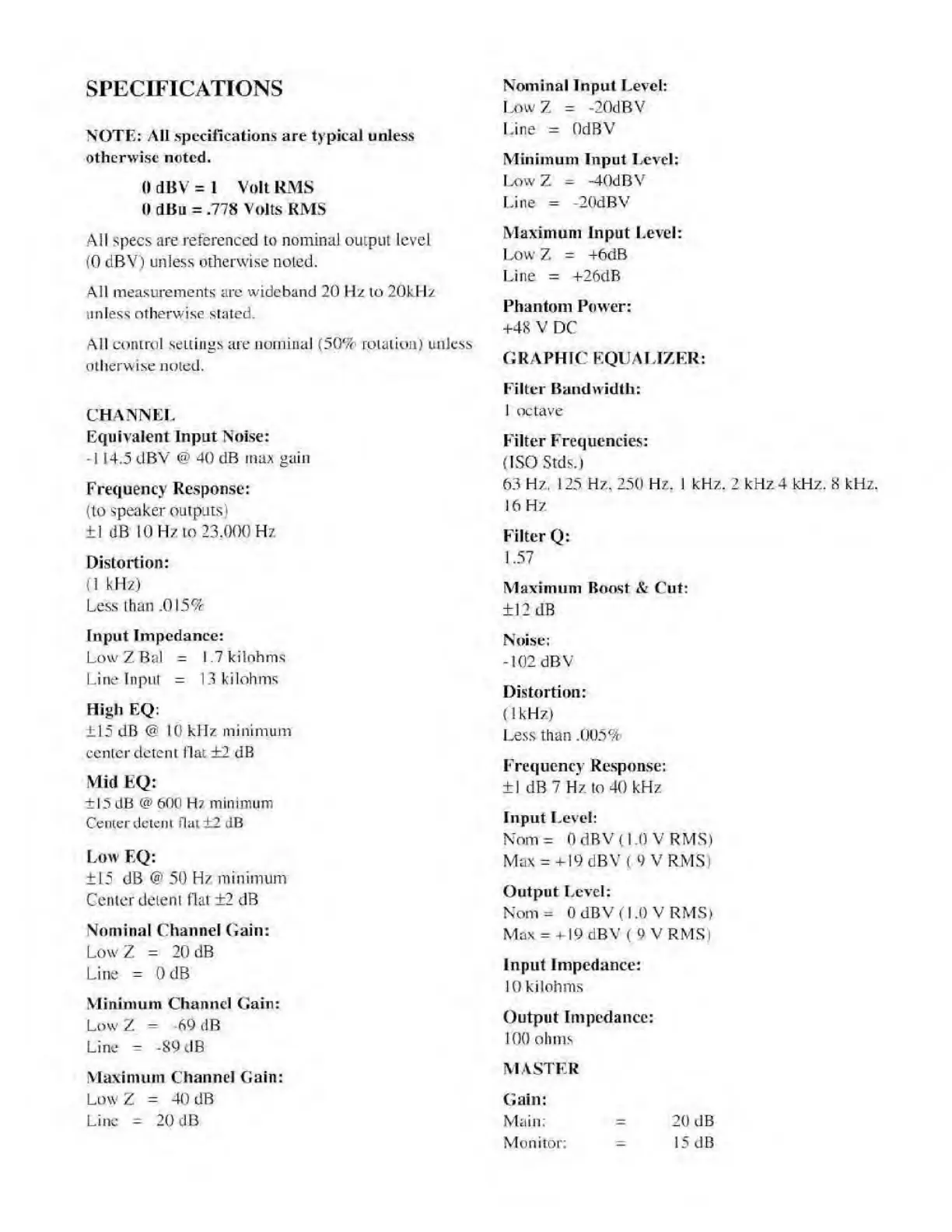

SPECIFICATIONS
NOTE: All specifications are typical unless
otherwise noted.
0 dBV = I Volt RMS
0 dBu = .778 Volts RMS
All specs are referenced to nominal output level
(0 dBV) unless otherwise noted.
All measurements are wideband 20 Hz to 20kHz
unless otherwise stated.
All control settings are nominal ( 50 % rotation) unless
otherwise noted.
CHANNEL
Equivalent Input Noise:
-1 14.5 dBV <&> 40 dB max gain
Frequency Response:
(to speaker outputs)
±1 dB I OH/ to 23.000 Hz
Distortion:
(1 k Hz)
Less than .015%
Input Impedance:
Low Z Bal = 1.7 kilohms
Line Input = 13 kilohms
High EQ:
±15 JB <s 10 kHz minimum
center detent Hat +2 dB
Mid EQ:
±15 dB <£> 600 Hz minimum
Center detent Hat ±2 dB
Low EQ:
±15 dB @ 50 H/ minimum
Center detent flat ±2 dB
Nominal Channel Gain:
Low Z = 20 dB
Line = 0 dB
Minimum Channel Gain:
Low Z = -69 dB
Line = -89 dB
Maximum Channel Gain:
Low Z = 40 dB
Line - 20 dB
Nominal Input Level:
Low Z = -20dBV
Line = OdBV
Minimum Input Level:
Low Z = -40dBV
Line = -20dBV
Maximum Input Level:
Low Z = +6dB
Line = +26dB
Phantom Power:
+48 V DC
GRAPHIC EQUALIZER:
Filter Bandwidth:
1 octave
Filter Frequencies:
(ISOStds.)
63 Hz. 125 Hz, 250 Hz. I kHz. 2 kHz 4 kHz. 8 kHz
16 Hz
Filter Q:
1.57
Maximum Boost & Cut:
±12 dB
Noise:
-102 dBV
Distortion:
(I kHz)
Less than .005%
Frequency Response:
±1 dB 7 Hz to 40 kHz
Input Level:
Norn = 0 dBV (1.0 V RMS)
Max =+19 dBV (9 V RMS)
Output Level:
Nom = OdBV(1.0 V RMS)
Max = +19 dBV ( 9 V RMS)
Input Impedance:
10 kilohms
Output Impedance:
100 ohms
MASTER
Gain:
Main: = 20 dB
Monitor: = 15 dB
