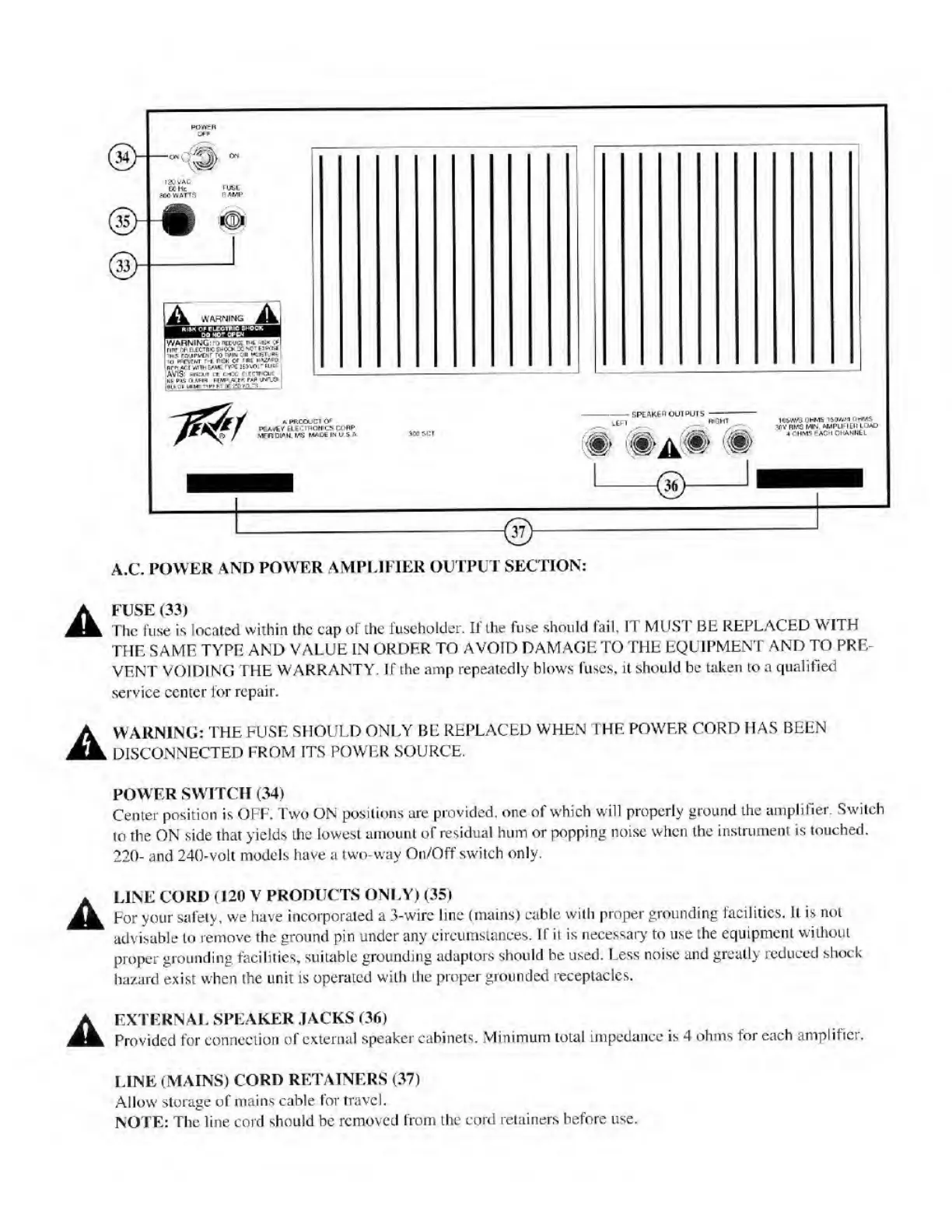

A.C. POWER AND POWER AMPLIFIER OUTPUT SECTION:
A FUSE (33)
The fuse is located within the cap of the fuseholder. If the fuse should fail, IT MUST BE REPLACED WITH
THE SAME TYPE AND VALUE IN ORDER TO AVOID DAMAGE TO THE EQUIPMENT AND TO PRE¬
VENT VOIDING THE WARRANTY. If the amp repeatedly blows fuses, it should be taken to a qualified
service center lor repair.
A WARNING: THE FUSE SHOULD ONLY BE REPLACED WHEN THE POWER CORD HAS BEEN
DISCONNECTED FROM ITS POWER SOURCE.
POWER SWITCH (34)
Center position is OFF. Two ON positions are provided, one of which will properly ground the amplifier. Switch
to the ON side that yields the lowest amount of residual hum or popping noise when the instrument is touched.
220- and 240-volt models have a two-way On/Off switch only.
LINE CORD (120 V PRODUCTS ONLY) (35)
For your safety, we have incorporated a 3-wire line (mains) cable with proper grounding facilities. It is not
advisable to remove the ground pin under any circumstances. If it is necessary to use the equipment without
proper grounding facilities, suitable grounding adaptors should be used. Less noise and greatly reduced shock
hazard exist when the unit is operated with the proper grounded receptacles.
EXTERNAL SPEAKER JACKS (36)
Provided for connection of external speaker cabinets. Minimum total impedance is 4 ohms for each amplifier.
LINE (MAINS) CORD RETAINERS (37)
Allow storage of mains cable for travel.
NOTE: The line cord should be removed from the cord retainers before use.
