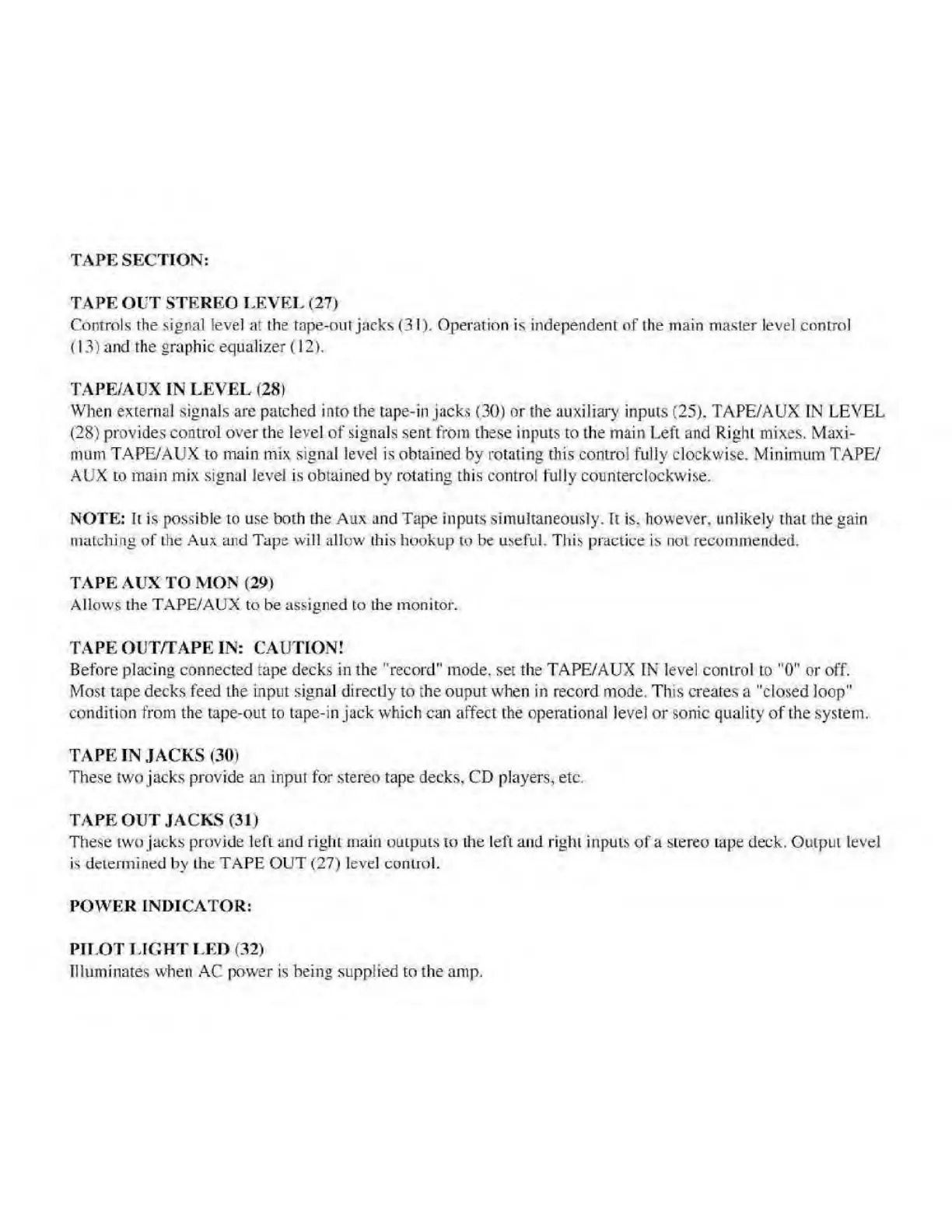

TAPE
SECTION:
TAPE
OUT
STEREO
LEVEL
(27)
Controls
the
signal
level
at
the
tape-out
jacks
(31).
Operation
is
independent
of
the
main
master
level
control
(13)
and
the
graphic
equalizer
(12).
TAPE/AUX
IN
LEVEL
(281
When
external
signals
are
patched
into
the
tape-in
jacks
(30)
or
the
auxiliary
inputs
(25).
TAPE/AUX
IN
LEVEL
(28)
provides
control
over
the
level
of
signals
sent
from
these
inputs
to
the
main
Left
and
Right
mixes.
Maxi¬
mum
TAPE/AUX
to
main
mix
signal
level
is
obtained
by
rotating
this
control
fully
clockwise.
Minimum
TAPE/
AUX
to
main
mix
signal
level
is
obtained
by
rotating
this
control
fully
counterclockwise.
NOTE:
It
is
possible
to
use
both
the
Aux
and
Tape
inputs
simultaneously.
It
is.
however,
unlikely
that
the
gain
matching
of
the
Aux
and
Tape
will
allow
this
hookup
to
be
useful.
This
practice
is
not
recommended.
TAPE
AUX
TO
MON
(29)
Allows
the
TAPE/AUX
to
be
assigned
to
the
monitor.
TAPE
OUT/TAPE
IN:
CAUTION!
Before
placing
connected
tape
decks
in
the
"record"
mode,
set
the
TAPE/AUX
IN
level
control
to
"0"
or
off.
Most
tape
decks
feed
the
input
signal
directly
to
the
ouput
when
in
record
mode.
This
creates
a
"closed
loop"
condition
from
the
tape-out
to
tape-in
jack
which
can
affect
the
operational
level
or
sonic
quality
of
the
system.
TAPE
IN
JACKS
(30)
These
two
jacks
provide
an
input
for
stereo
tape
decks,
CD
players,
etc.
TAPE
OUT
JACKS
(31)
These
two
jacks
provide
left
and
right
main
outputs
to
the
left
and
right
inputs
of
a
stereo
tape
deck.
Output
level
is
determined
by
the
TAPE
OUT
(27)
level
control.
POWER
INDICATOR:
PILOT
LIGHT
LED
(32)
Illuminates
when
AC
power
is
being
supplied
to
the
amp.
