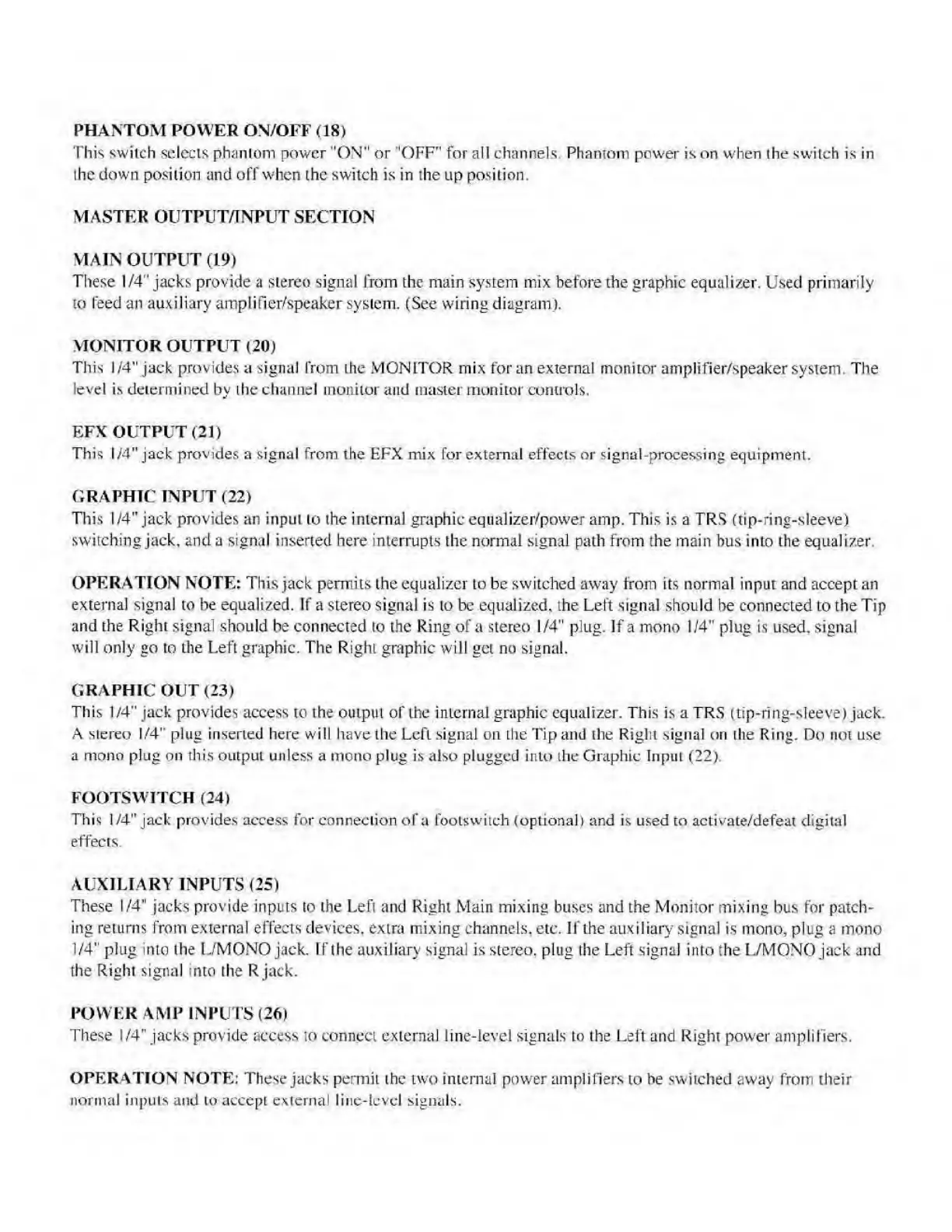

PHANTOM
POWER
ON/OFF
(18)
This;
switch
selects
phantom
power
"ON”
or
"OFF"
for
all
channels.
Phantom
power
is
on
when
the
switch
is
in
the
down
position
and
off
when
the
switch
is
in
the
up
position.
MASTER
OUTPUT/INPUT
SECTION
MAIN
OUTPUT
(19)
These
1/4"
jacks
provide
a
stereo
signal
from
the
main
system
mix
before
the
graphic
equalizer.
Used
primarily
to
feed
an
auxiliary
amplifier/speaker
system.
(See
wiring
diagram).
MONITOR
OUTPUT
(20)
This
1/4"
jack
provides
a
signal
from
the
MONITOR
mix
for
an
external
monitor
amplifier/speaker
system.
The
level
is
determined
by
the
channel
monitor
and
master
monitor
controls.
EFX
OUTPUT
(21)
This
1/4"
jack
provides
a
signal
from
the
EFX
mix
for
external
effects
or
signal-processing
equipment.
GRAPHIC
INPUT
(22)
This
1/4"
jack
provides
an
input
to
the
internal
graphic
equalizer/power
amp.
This
is
a
TRS
(tip-ring-sleeve)
switching
jack,
and
a
signal
inserted
here
interrupts
the
normal
signal
path
from
the
main
bus
into
the
equalizer.
OPERATION
NOTE:
This
jack
permits
the
equalizer
to
be
switched
away
from
its
normal
input
and
accept
an
external
signal
to
be
equalized.
If
a
stereo
signal
is
to
be
equalized,
the
Left
signal
should
be
connected
to
the
Tip
and
the
Right
signal
should
be
connected
to
the
Ring
of
a
stereo
1/4"
plug.
If
a
mono
1/4"
plug
is
used,
signal
will
only
go
to
the
Left
graphic.
The
Right
graphic
will
get
no
signal.
GRAPHIC
OUT
(23)
This
1/4"
jack
provides
access
to
the
output
of
the
internal
graphic
equalizer.
This
is
a
TRS
(tip-ring-sleeve)
jack.
A
stereo
1/4"
plug
inserted
here
will
have
the
Left
signal
on
the
Tip
and
the
Right
signal
on
the
Ring.
Do
not
use
a
mono
plug
on
this
output
unless
a
mono
plug
is
also
plugged
into
the
Graphic
Input
(22).
FOOTSWITCH
(24)
This
1/4"
jack
provides
access
for
connection
of
a
foots
witch
(optional)
and
is
used
to
activate/defeat
digital
effects.
AUXILIARY
INPUTS
(25)
These
1/4"
jacks
provide
inputs
to
the
Left
and
Right
Main
mixing
buses
and
the
Monitor
mixing
bus
for
patch¬
ing
returns
from
external
effects
devices,
extra
mixing
channels,
etc.
If
the
auxiliary
signal
is
mono,
plug
a
mono
1/4"
plug
into
the
L/MONO
jack.
If
the
auxiliary
signal
is
stereo,
plug
the
Left
signal
into
the
L/MONO
jack
and
the
Right
signal
into
the
R
jack.
POWER
AMP
INPUTS
(26)
These
1/4"
jacks
provide
access
to
connect
external
line-level
signals
to
the
Left
and
Right
power
amplifiers.
OPERATION
NOTE:
These
jacks
permit
the
two
internal
power
amplifiers
to
be
switched
away
from
their
normal
inputs
and
to
accept
external
line-level
signals.
