Slow Moving Vehicle Label Installation
The Slow Moving Vehicle (SMV) Label will need to be visible from the back of your tractor if you’re required to have
one. If the Collection Unit is obstructing the SMV Label from view, the SMV Label will need to be repositioned. To
reposition the SMV Label that came with your tractor, first, install the SMV Sign Mount (Item #1) to the base of the
Main Frame Assy of your grass collection unit.
Align the bolt holes of the SMV Sign Mount (Item #1) to those located on top of the Main Frame Tube. Secure the
SMV Sign Mount to the Main Frame Tube by using (2) 3/8”-16 x 2-1/2” HHCS (Item #3.1), (2) 3/8” Flat Washers (Item
#3.3) and (2) 3/8”-16 Ny-Flange Lock Nuts (Item #3.2). Refer to Figure A.
Next, install the Safety Triangle Mount (Item #2) to the SMV Sign Mount by using (2) 5/16”-18 x 3/4” Carriage Bolts
(Item #3.4) and (2) 5/16”-18 Wing Nuts (Item #3.5). Refer to Figure A.
Once the Safety Triangle Mount is secured, mount your SMV Sign to the Safety Triangle Mount by using the mower’s
SMV hardware that was initially used to secured the SMV Sign. Refer to Figure A.
NOTE: Some features have been hidden from view for visual clarity

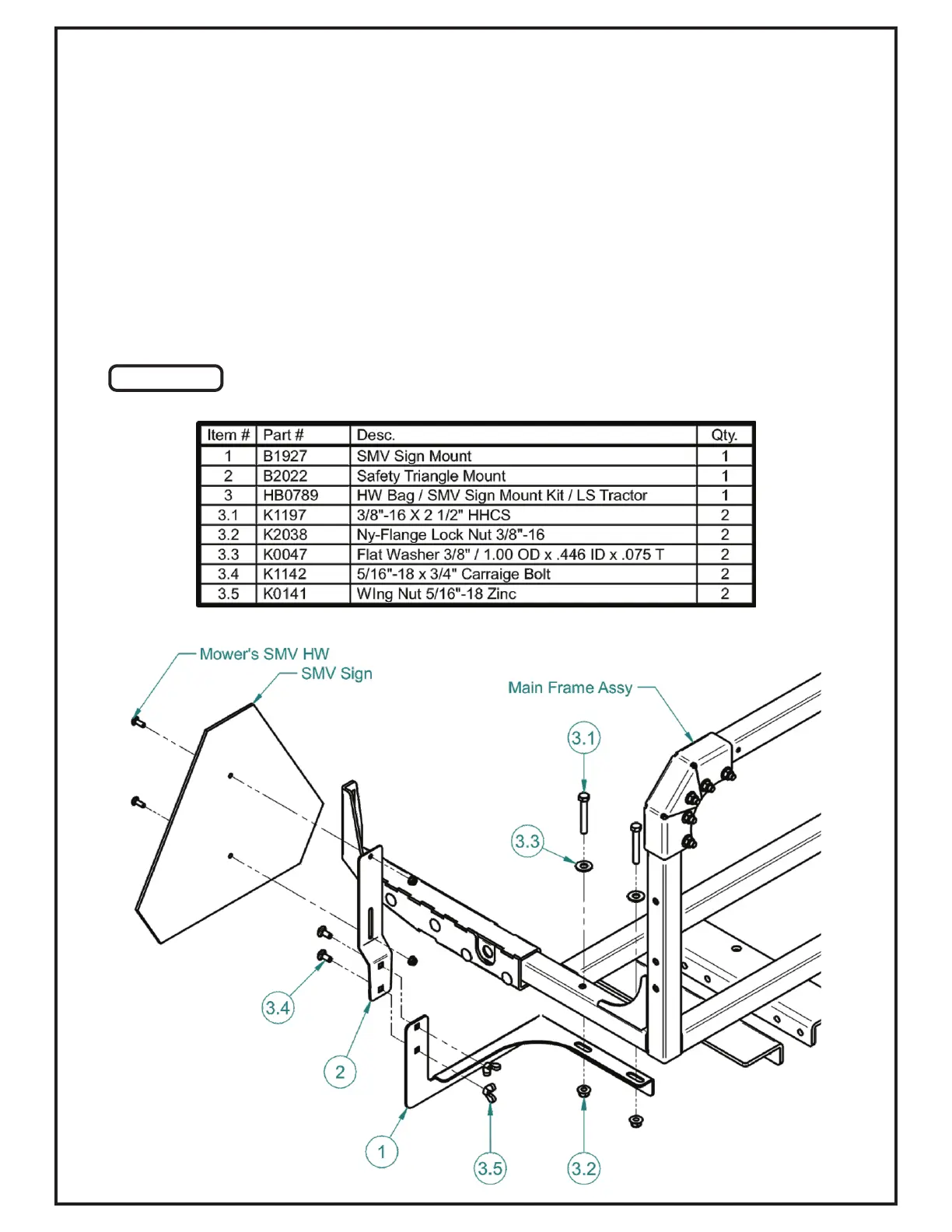

Figure A
