7

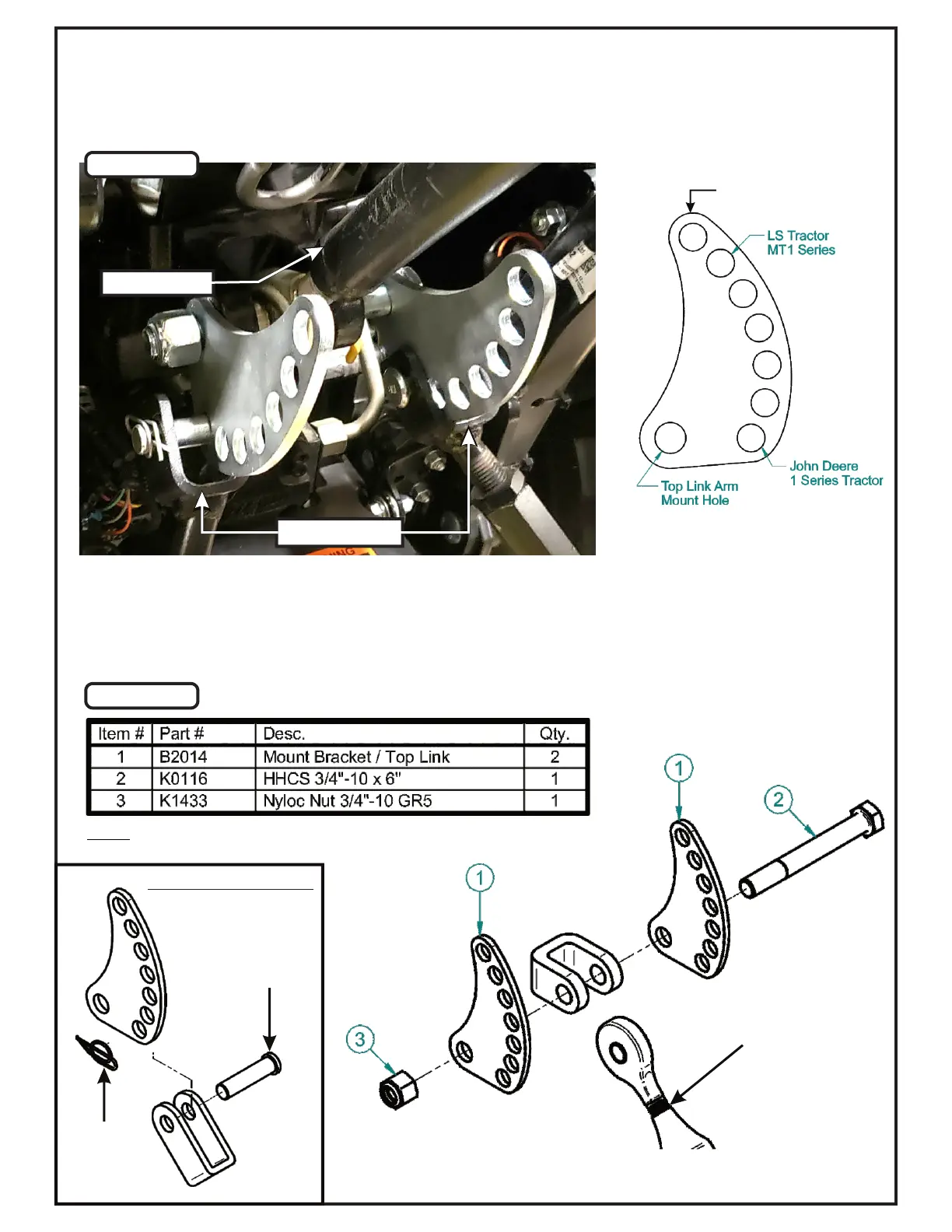

Figure A
Figure B
The Mount Brackets are designed to accommodate a range of lower lift arm positions. Rotate the Mount Brackets
so that your lower lift arms are aligned and positioned to the mounting holes of the Mount Brackets. The lower lift
arms should be positioned so that the collection unit will be sitting upright and perpendicular to the ground. Once
the desired position is determined, secure the (2) lower lift arms to the Mounting Brackets by reusing the provided
hardware. Refer to Figure B.
NOTE: Some part features have been hidden from view for visual clarity.
Securing Lower Lift Arm
Reused
Hardware
Reused
Hardware
Top Link Arm
Mower Preparations (Continued)
Lastly, install (2) Mounting Brackets to the top link arm and lower lift arms. Refer to Figure A for the positioning of the
Mounting Brackets. Secure the Mounting Brackets to the top link arm by using (1) 3/4”-10 x 6” HHCS (Item #2) and (1)
3/4” Nyloc Nut (Item #3). Refer to Figure B.
Mounting
Bracket
Top Link Arms
Lower Lift Arms
