Pecron E1500 PRO - SOLAR PANEL CONNECTION EXAMPLES (200 W x4 Parallel); 200 W;36 V (x4) Parallel Connection

support@pecron.com
USING SOLAR PANELS TO CHARGE THE E1500 PRO
36V
36V
36V
36V
36V

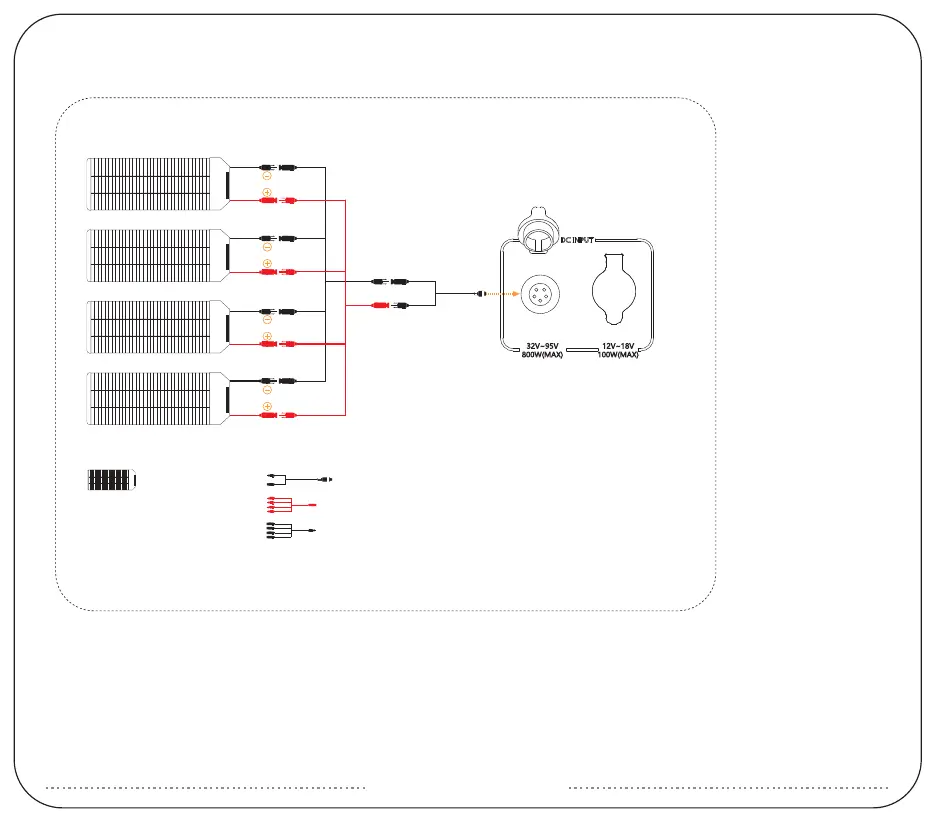

Using the pecron 200W /36V*4（800W）to charge the E1500 PRO
MC4 Solar Charging Cable*1
Y Branch MC4 Charging Cable(+)*1
Y Branch MC4 Charging Cable(-)*1
pecron 200W*4
（NOTE：This parallel charging cable sold separately）
※ 36V is the operating voltage of the solar panels
