USING SOLAR PANELS TO CHARGE THE E1500 PRO
DO NOT wire three solar panels in series！
※ PV(GX16MF-5) Port Only work within 32V~95V Open Circuit voltage,exceeding 95V
will damage the machine.
36V
36V
36V
108V
36V
36V
36V
36V

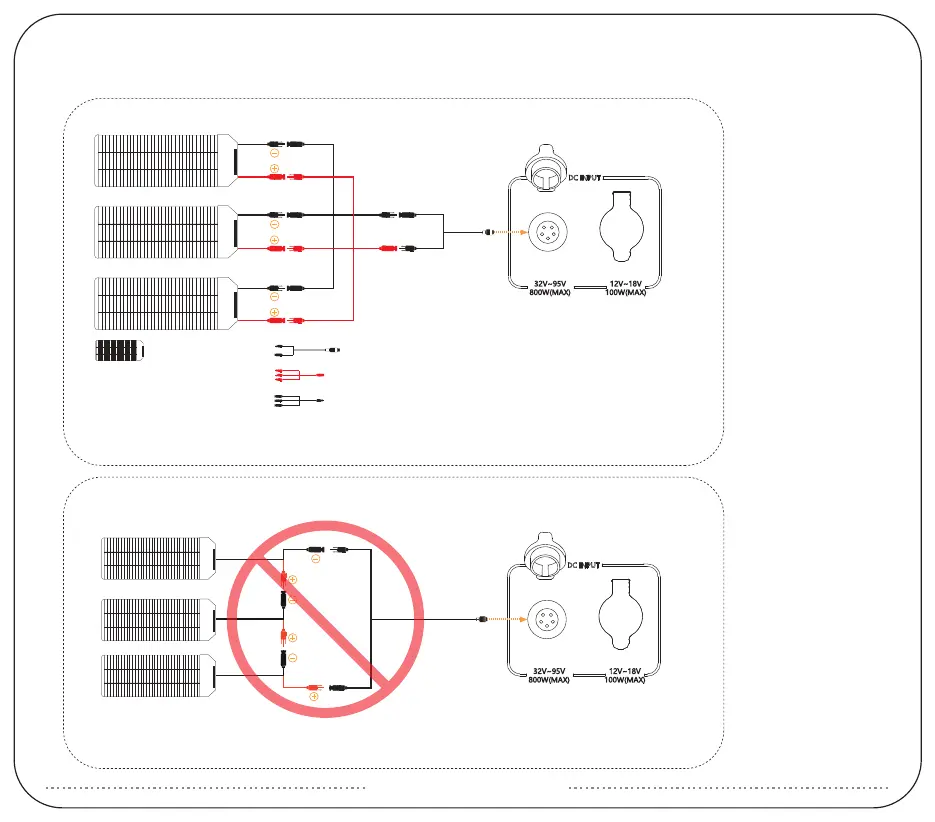

Using the pecron 200W /36V*3（600W）to charge the E1500 PRO
MC4 Solar Charging Cable*1
Y Branch MC4 Charging Cable(+)*1
Y Branch MC4 Charging Cable(-)*1
pecron 200W*3
（NOTE：This parallel charging cable sold separately）
※ 36V is the operating voltage of the solar panels
