Pecron E1500 PRO - SOLAR PANEL CONNECTION EXAMPLES (100 W-200 W); 100 W;18 V Solar Panel Connection; 200 W;36 V (x1) Solar Panel Connection; 200 W;36 V (x2) Series Connection

support@pecron.com

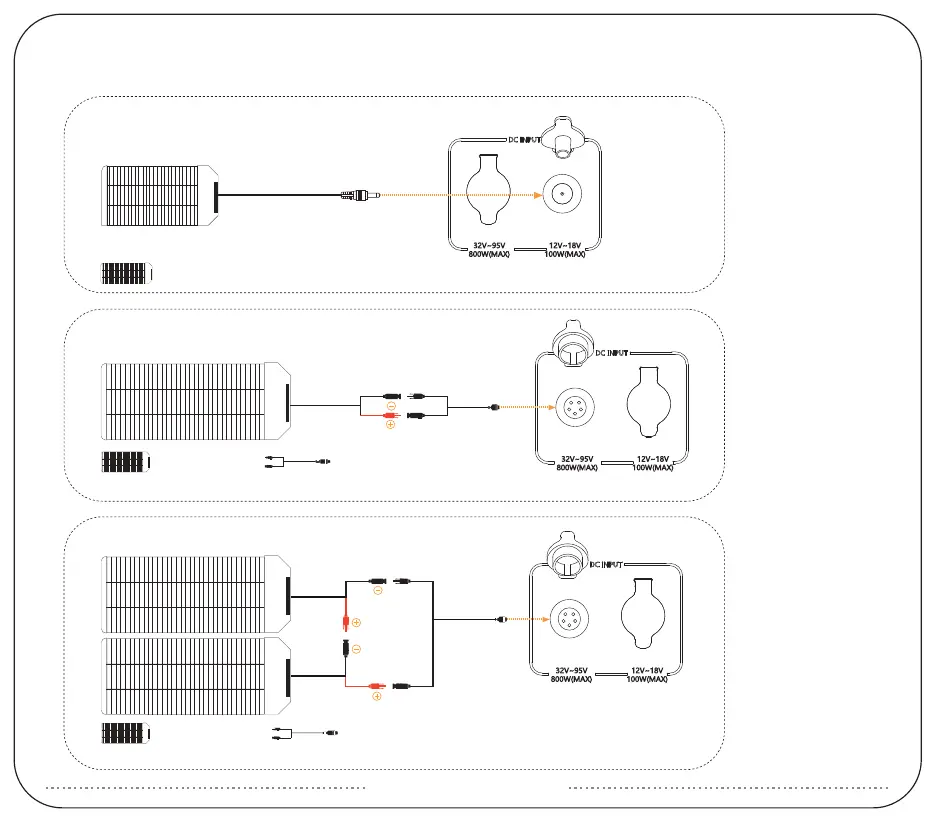

Using the pecron 100W /18V*1 （100W）to charge the E1500 PRO
pecron 100W
18V
pecron 100W*1
USING SOLAR PANELS TO CHARGE THE E1500 PRO
36V
36V
MC4 Solar Charging Cable*1 pecron 200W*1
Using the pecron 200W /36V*1 （200W）to charge the E1500 PRO
※ 18V is the operating voltage of the solar panels
※ 36V is the operating voltage of the solar panels
36V
36V
72V
Using the pecron 200W /36V*2 （400W）to charge the E1500 PRO
MC4 Solar Charging Cable*1 pecron 200W*2
※ 36V is the operating voltage of the solar panels
