USING SOLAR PANELS TO CHARGE THE E2000 LFP

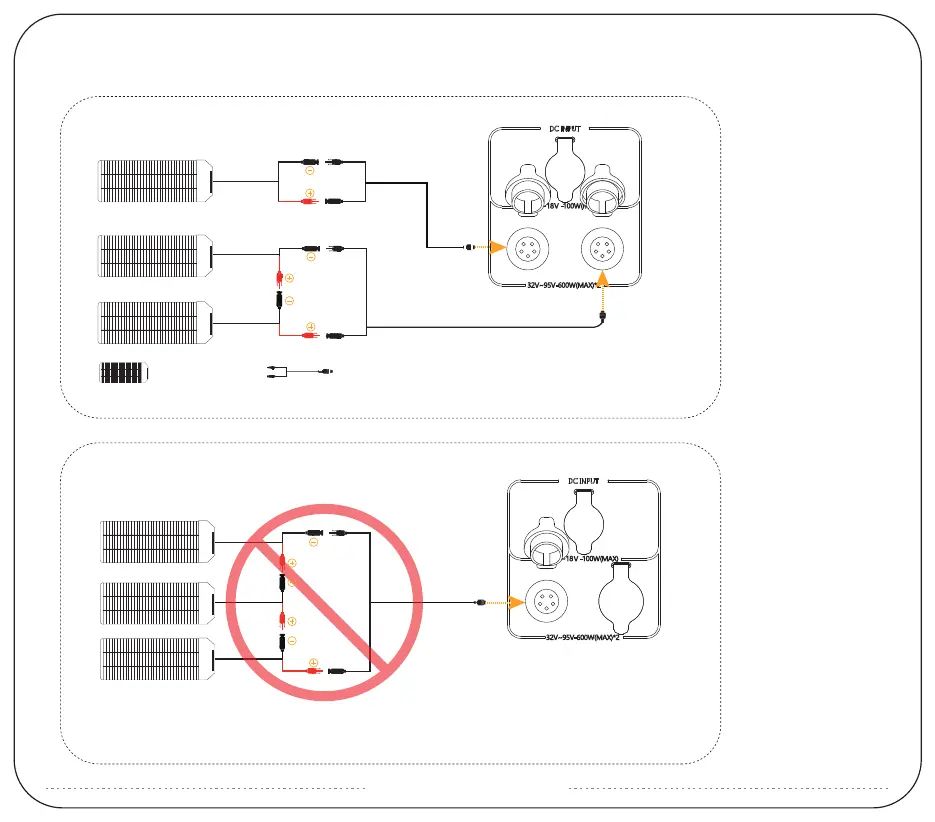

Using the pecron 200W /36V*3 （600W）to charge the E2000 LFP
MC4 Solar Charging Cable*2
※ 36V is the operating voltage of the solar panels
pecron 200W*3
36V
36V
72V
36V
36V
DO NOT wire three solar panels in series！
※ PV(GX16MF-5) Port Only work within 32V~95V Open Circuit voltage,exceeding 95V
will damage the machine.
36V
36V
36V
108V
