USING SOLAR PANELS TO CHARGE THE E3000

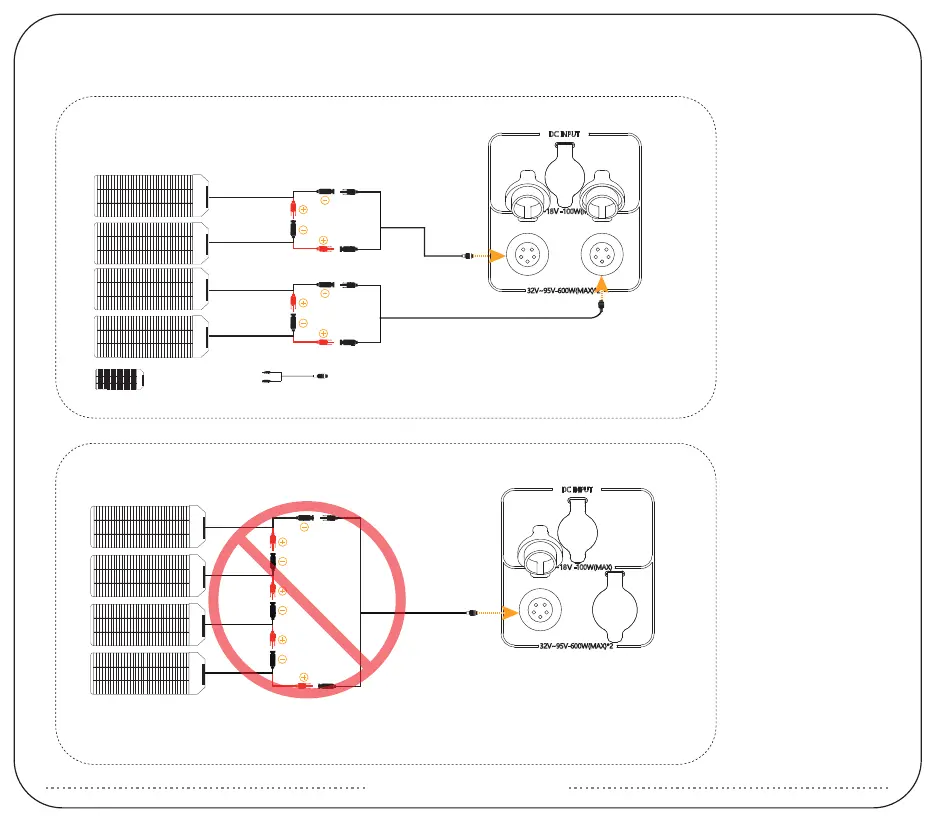

Using the pecron 200W /36V*4 （800W）to charge the E3000
MC4 Solar Charging Cable*2
※ 36V is the operating voltage of the solar panels
pecron 200W*4
72V
72V
36V
36V
36V
36V
DO NOT wire four solar panels in series！
※ PV(GX16MF-5) Port Only work within 32V~95V Open Circuit voltage,exceeding 95V
will damage the machine.
36V
36V
144V
36V
36V
