CODE:
V / Hz:
I max:
P start:
Year:
B
50066/115
~230 / 50-60
16 A
1.5 Bar
2008
10110607A_rev.07

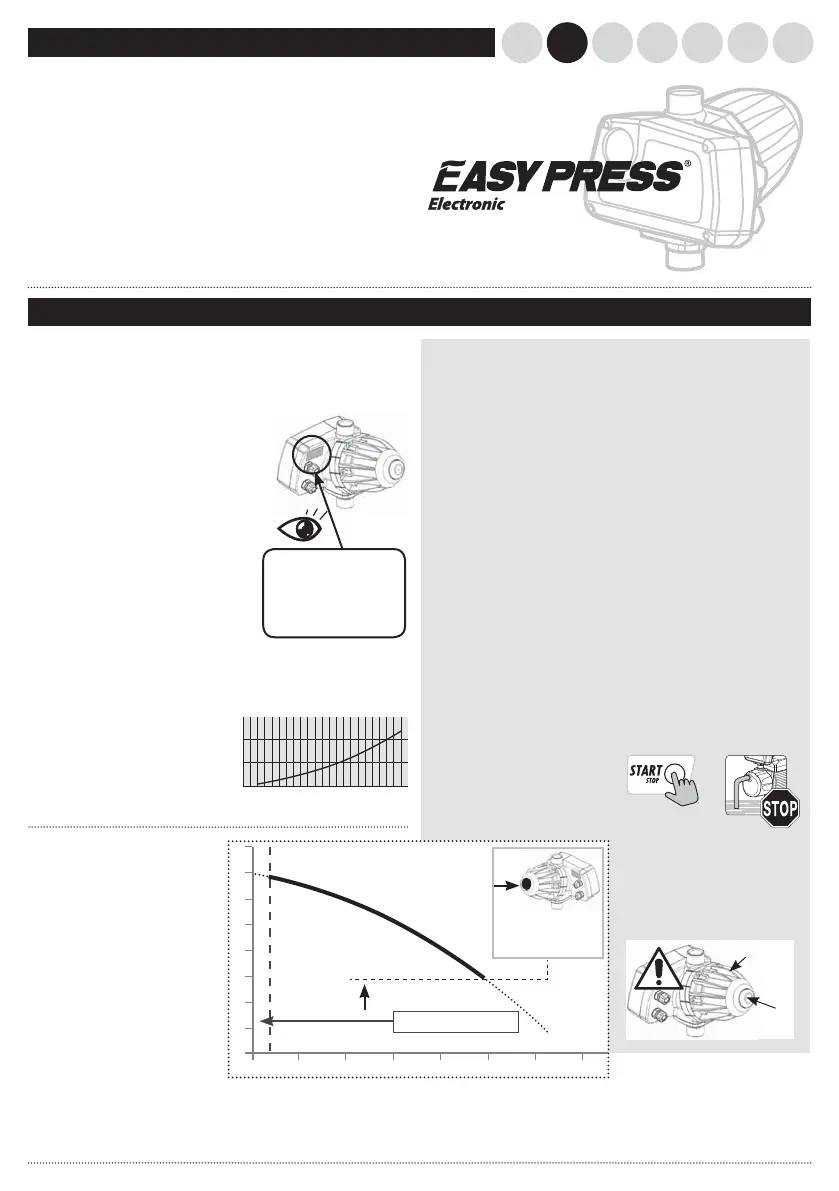

MANUALE ISTRUZIONIMANUALE ISTRUZIONI
ARRUDEEN FRIT ES
ELECTRONIC PUMP CONTROLLER
EASY PRESS
®
is a device that
starts and stops the pump to
which it is tted, thus replacing
traditional pressure switch /
surge tank systems.
The pump is started when, as
a tap is turned on, the pressure
within the system drops below
the “start-up pressure” (Pm),
and is stopped when the ow
USER’S MANUAL
rate required is zero or less
than the “shut-off ow rate”
(Qa).
EASY PRESS
®
’s electronics
protect the pump against
unsuitable operating conditions
such as dry running or repea-
ted start-ups due to leaks.
Technical specications
Losses
- Voltage: ~230 Volt / ~115 Volt
- Frequency: 50-60 Hz
- Current: 10A, max 12A for 3 sec.
- Current: 12A, max 16A for 3 sec.
- Protection grade: IP 65
-
Start-up pressure (Pm): 0,8 / 1,5 / 2,2 Bar
- Shut-off ow rate (Qa): 1- 2 litres/min
- Connections: 1”M BSP / 1”M NPT
- Maximum working pressure: 10 bar
- Bursting pressure: 40 bar
- Weight: 1450 g
- Protection against:
- dry running (automatic restart)
- repeated start-ups
- Max room temperature: 40°C
- Max liquid temperature: 55°C
- Type of drive: 1C
- Max manual operations on
push button: 1000
- Max automatic operations
on relay: 100000
- Class 3A PTI
- Pollution degree : 2
- Max rated voltage pulse: 2,5 kV
- 230V 12A for EMC test
- Pressure operating
differential: 10 bar
0 50 100 150 200 l/min
0 5 10 15
m H
2
O
Operating conditions
A. Compatible/non compati-
ble uids
EASY PRESS
®
is suitable for use
with clean water and chemically
non-aggressive liquids. If the
uid contains impurities, a lter
should be tted upstream.
B. Environmental conditions
EASY PRESS
®
should not be
used where there is the risk of
an explosion. The temperature
of the location should range
between 0°C and 40°C, and
the humidity should not exceed
90%.
C. Power supply
Make sure that the variation
in the power supply is never
more or less than 10 % of the
RATING value.
Higher values may cause
damage to the electronic
components.
EASY PRESS
®
can only be
used with single-phase pumps.
Working area
Flow rate
Pressure
Shut-off ow rate
Start-up pressure
1 ÷ 2 l/min
Red =
Blue =
Yellow =
Qa
Pm
Safety regulations
Before installing or using EASY
PRESS
®
, read this manual
carefully and thoroughly.
The pump should be installed
and serviced by qualied per-
sonnel, responsible for making
the hydraulic and electrical
connections in compliance with
the relevant regulations.
PEDROLLO
®
shall not be
held liable for any damage
relating to, or resulting from, an
improper use of the product,
or for any damage relating to,
or resulting from, servicing or
repairs carried out by unqua-
lied personnel and/or with
non-OEM spare parts.
The warranty, which is valid
for 24 months from the date
of purchase, will no longer be
applicable should the product
suffer damage as a conse-
quence of the use of non-OEM
spare parts, tampering or
improper use.
When starting the installation,
check the following:
- the power supply is switched
off.
- the power lines can withstand
the maximum current.
- the cable bushings and circuit
board cover have been pro-
perly assembled and secured
( see Electrical Connections ).
- Power supply network must
be tted with proper protec-
tion device (fuse or magneto-
thermal relay) upstream of
EASYPRESS
When servicing the product,
check the following:
- the system is not pressurised
(turn a tap on)
- the power supply is switched
off.
Emergency Stop
When in use, the pump can
be stopped in the event of an
emergency:
press START/STOP.
EASY PRESS
®
is put OUT OF
SERVICE.
Never disassemble
water accumulator and cover.
Cover
Water accumulator
2,2 bar
1,5 bar
0,8 bar
Before installing,
the product, check that
the RATINGS correspond
with those required.
