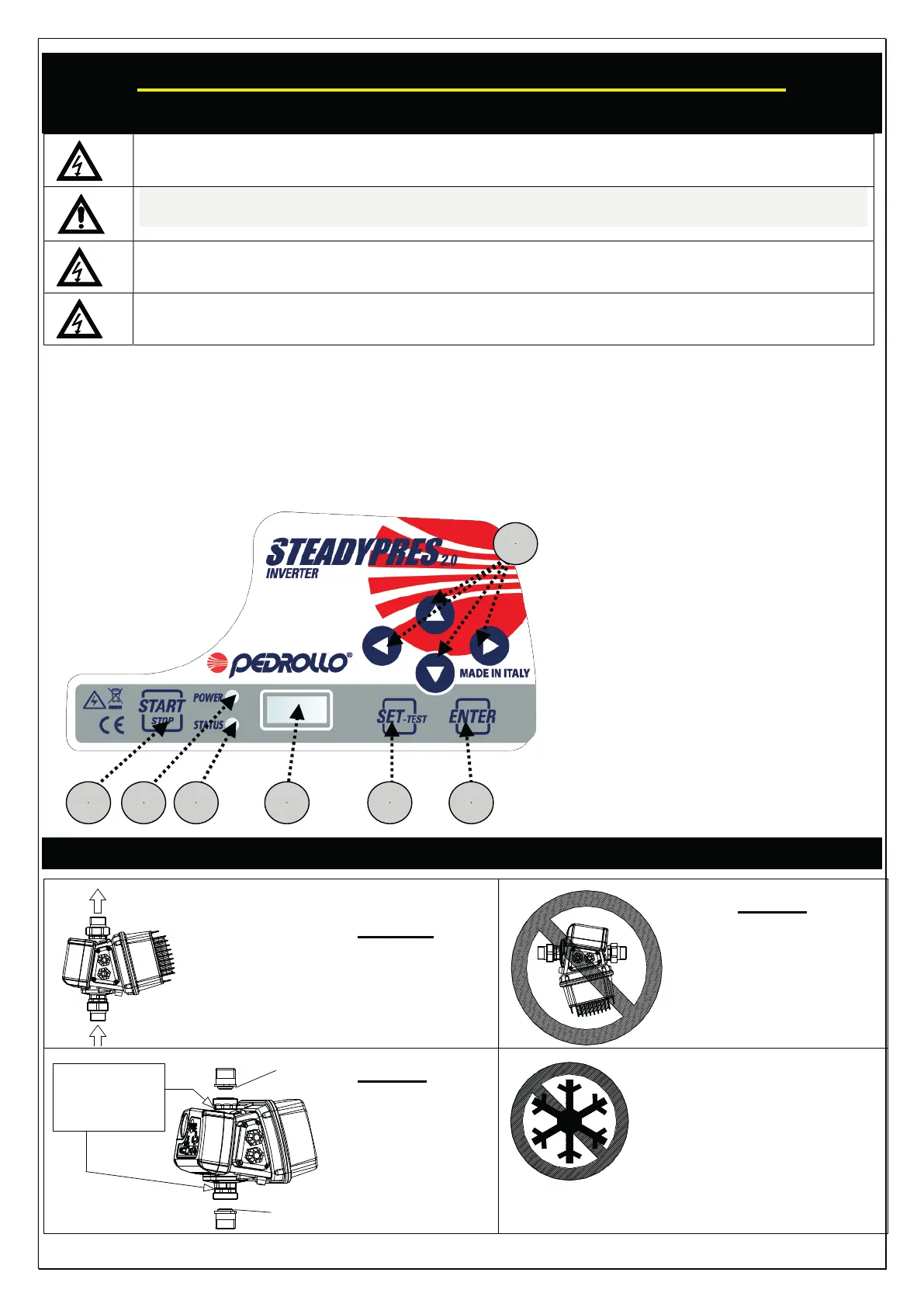

PART 1 - QUICK INSTALLATION GUIDE
PRELIMINARY CHECKS
During the initial installation and maintenance, make sure that ends of the line wires are not
live.
During the initial installation and maintenance, make sure that
the system is not under
pressure
to ACCESS THE DRIVE WIRING
, open the front cover as shown on p. 5
DO NOT OPEN INVERTER COVERS
, except for the connector cover
the inverter power supply line must be protected in accordance with current regulations, and in
particular with a high-sensitivity differential switch and magnetothermic switch
-
Install the inverter in a place:
o
protected from the elements
o
ventilated, free from excessive humidity or excessive dust
o
as close as possible to the pump
o
make sure that does not receive harmful vibrations or mechanical stress from connected
pipelines
- Control panel:
1- START/STOP button
2- Red LED (power)
3- Green LED (status)
4- Display
5- SET button
6- Confirm button
7- Scrolling UP / DOWN
/
RIGHT / LEFT
INSTALLATION AND HYDRAULIC CONNECTIONS
OUT
IN
OK
Install in a
vertical
position
Do not install
in a horizontal
position
O-RING
NO SEA LING
NO CA NAPA
NO TEFLON
Do not use
sealant in the
three-pieces
joint; are
already
equipped
with O-Ring
The freezing of the
liquid contained in the
inverter body causes
irreversible damage
to the inverter
