PEDROLLO STEADYPRES V2.0 - Dimensions and Weights; Product Identification Code; Surge Tank

40

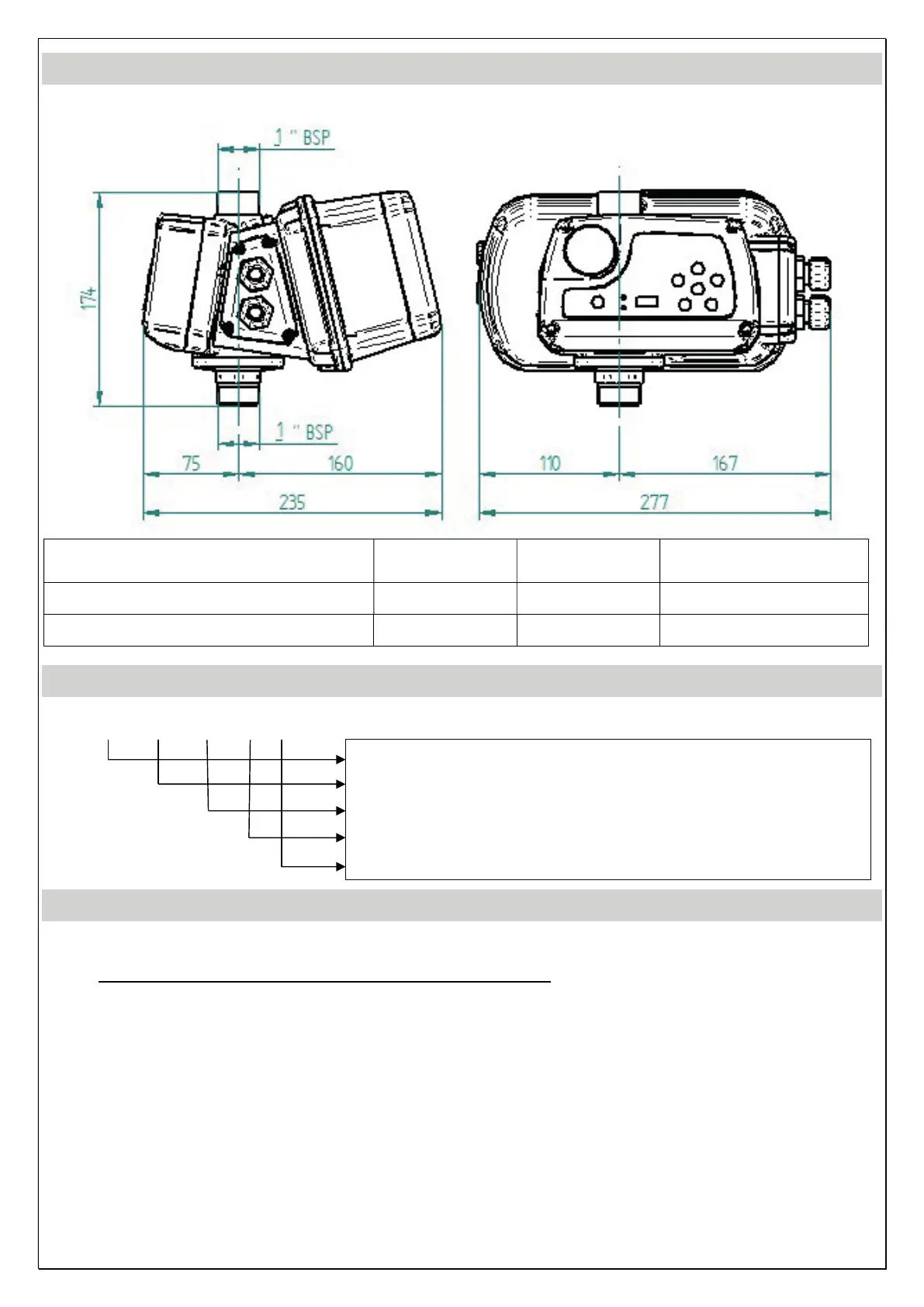

DIMENSIONS AND WEIGHTS
Model connection weight (kg) Packaging dimensions
(
A x B x H
-
mm)
M/M 8.5 - M/M 11 – M/T 7 – M/T 10 1” 2,9 260 x 200 x H 260
M/M 16 – T/T 6 – T/T 8 1” 3,7 260 x 200 x H 260
PRODUCT IDENTIFICATION CODE
ST M / T 10 P
SURGE TANK
- accumulates water under pressure to minimize the start-up of the pumps
- it is essential in the presence of small system leakages
- absorbs overpressures from the system
- the minimum tank volume, in liters (for diaphragm models) is approx. equal to 10% of the
maximum capacity of the single pump, expressed in l/min; example in a standard application:
Qmax = 80 l/min
 V = 80 x 10% = 8 liters
rounded up to commercial size
- pre-charge: a. 1 bar less than the working pressure: e.g.:
Pset = 4 bar


Ppre-charge = 3 bar
PRODUCT FAMILY
INVERTER SUPPLY: M = single-phase, T = three-phase
MOTOR OUTPUT: M = single-phase, T = three-phase
MODEL
Configuration: E = expandable, P = parallelable
