ISSUED: 02-13-07 SHEET #: 055-9485-1
Visit the Peerless Web Site at www.peerlessmounts.com
8 of 33
For customer care call 1-800-865-2112 or 708-865-8870.

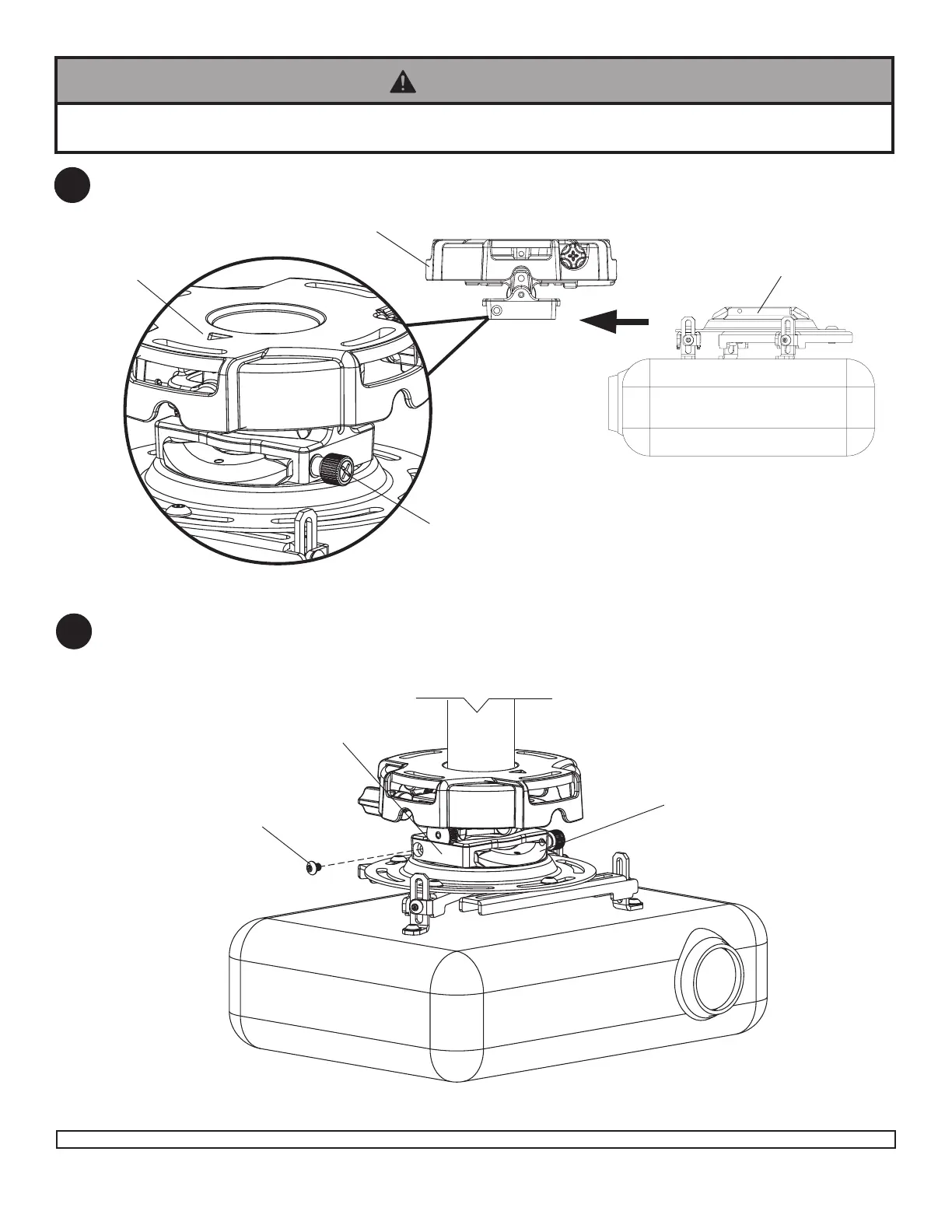

Slide connection block with projector into projector mount assembly (A) as shown. Push in and tighten captive screw
to secure projector to projector mount assembly (A).
IMPORTANT: For security installations, insert one #10-32 x 1/4" socket pin screw (E) through projector mount
assembly (A) and into connection block as shown. Tighten screw with 4mm security allen wrench (I).
CONNECTION BLOCK
A
CAPTIVE SCREW
FRONT OF MOUNT
• Always use an assistant or mechanical lifting equipment to safely lift and position the projector.
WARNING
CONNECTION BLOCK
A
E
7
8
ARROW
INDICATES
FRONT OF
MOUNT
To Next Page
