9. Parts list and sectional drawings
9.1 AEF
37
123
18A
8
127
ZONE A-A
29
169
1A
B
B
40A
73B 33 40A 119B 80 14 32 14A 13 17 31 41 35 40B 46
18
43 17
17B 80A
2
1B 7 63
119A
169 16 73B
47
6
TM072349

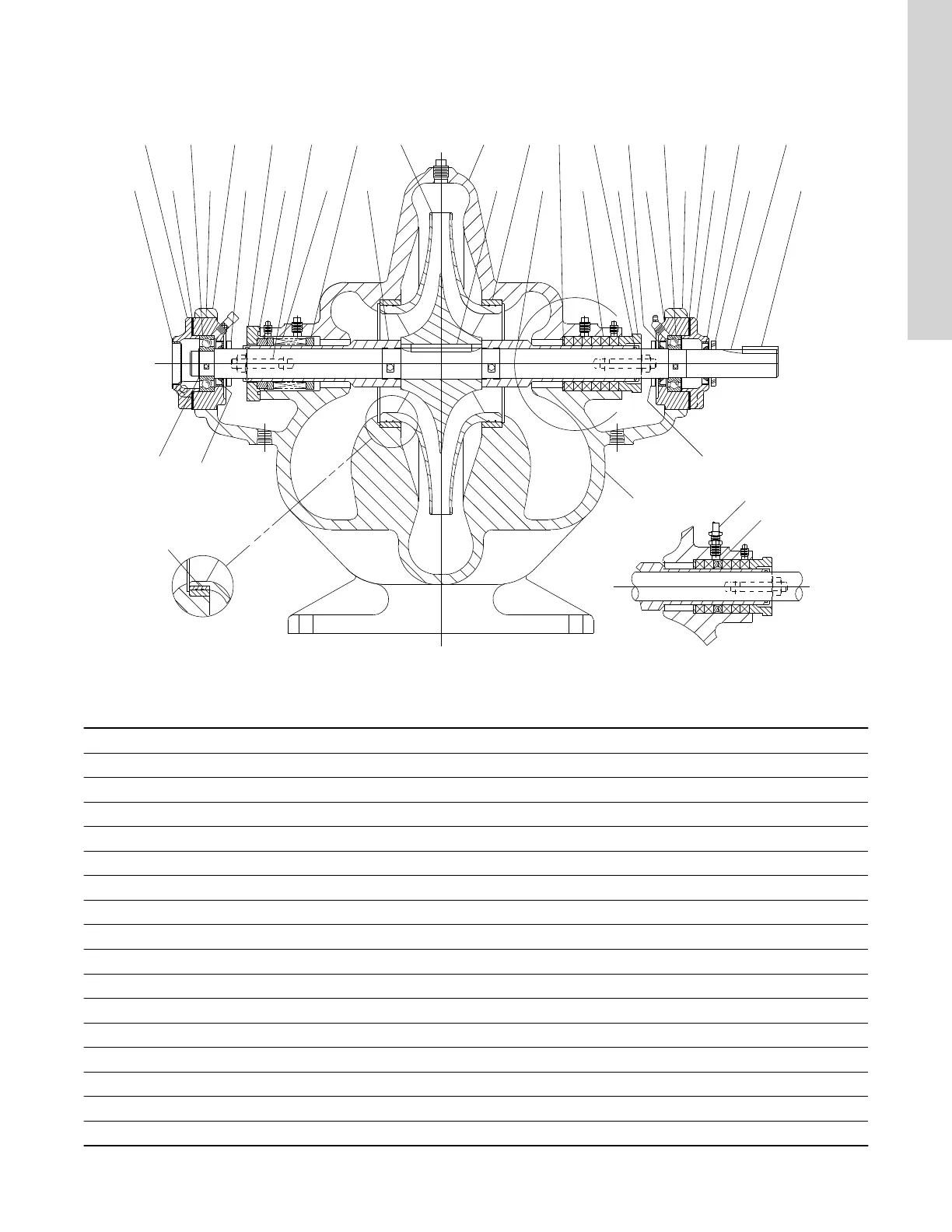

Fig. AEF, packed type
Item No. Description Item No. Description
1A, 1B Upper and lower casing 33 Outboard bearing housing
2 Impeller 35 Inboard bearing housing cover
6 Shaft 37 Outboard bearing housing cover
7 Casing wear ring 40A Inboard deflector
8 Impeller wear ring (optional) 40B Outboard deflector
13 Packing ring 41 Cap, bearing, inboard
14, 14A Shaft sleeve RH LH 43 Cap, bearing, outboard
14B Shaft sleeve O-ring 46 Coupling key
16 Inboard ball bearing 47 Inboard bearing cover seal
17 Packing gland 63 Stuffing box bushing
17B Gland bolt 73A Volute gasket (not shown)
18 Outboard ball bearing 73B Bearing cover gasket
18A Bearing lock washer 123 Bearing end cover
29 Lantern ring (optional) 127 Water seal piping
31 Inboard bearing housing 169 Bearing housing seal
32 Impeller key
