9.3 12AEF21
123
37 7 127 169 16 73B 618 17 6317B43
73B
33
24
40A
18A
169
8
14B 13
2 1B32
14
14A 29 31 41 35
40B
46
1A
40A
127
29
17A
TM073580

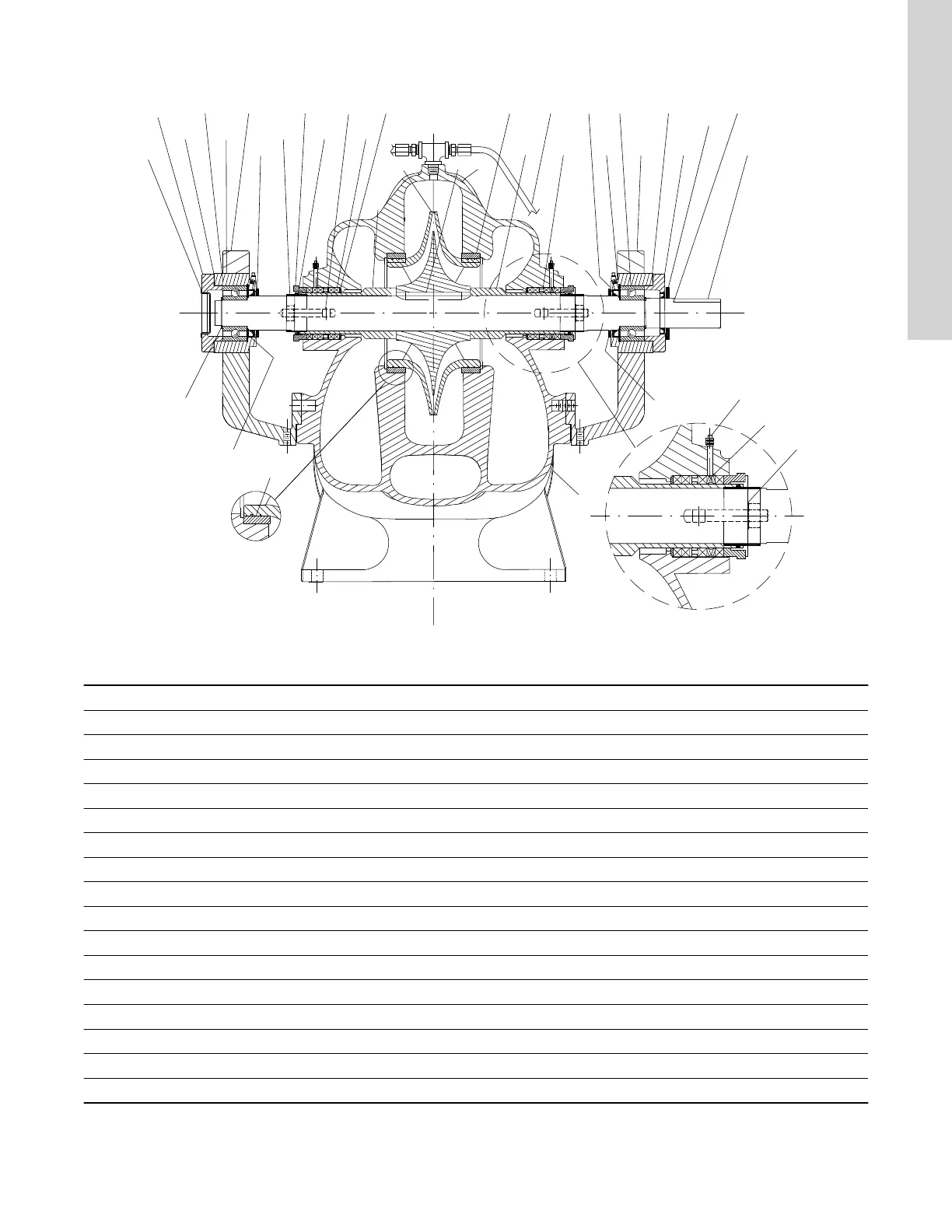

Fig. 12AEF21
Item No. Description Item No. Description
1A, 1B Upper and lower casing 32 Impeller key
2 Impeller 33 Outboard bearing housing
6 Shaft 35 Inboard bearing housing cover
7 Casing wear ring 37 Outboard bearing housing cover
8 Impeller wear ring (optional) 40A Inboard deflector
13 Packing ring 40B Outboard deflector
14, 14A Shaft sleeve RH LH 41 Cap, bearing, inboard
14B Shaft sleeve O-ring 43 Cap, bearing, outboard
16 Inboard ball bearing 46 Coupling key
17 Packing gland 47 Inboard bearing cover seal
17B Gland bolt 63 Stuffing box bushing
18 Outboard ball bearing 73A Volute gasket (not shown)
18A Bearing lock washer 73B Bearing cover gasket
24 Shaft sleeve nut 123 Bearing end cover
29 Lantern ring (optional) 127 Water seal piping
31 Inboard bearing housing 169 Bearing housing seal
25
