Peerless Pump AEF - AEF with double row thrust bearing

9.2 AEF with double row thrust bearing
37
123
18A
8
127
ZONE A-A
29
169
1A
A
A
40A
73B 33 40A 14 32 14A 13 31 41 35 40B 46
18 43 17 17B 2 1B 7 63 16914B 16 73B 47 6
TM072424

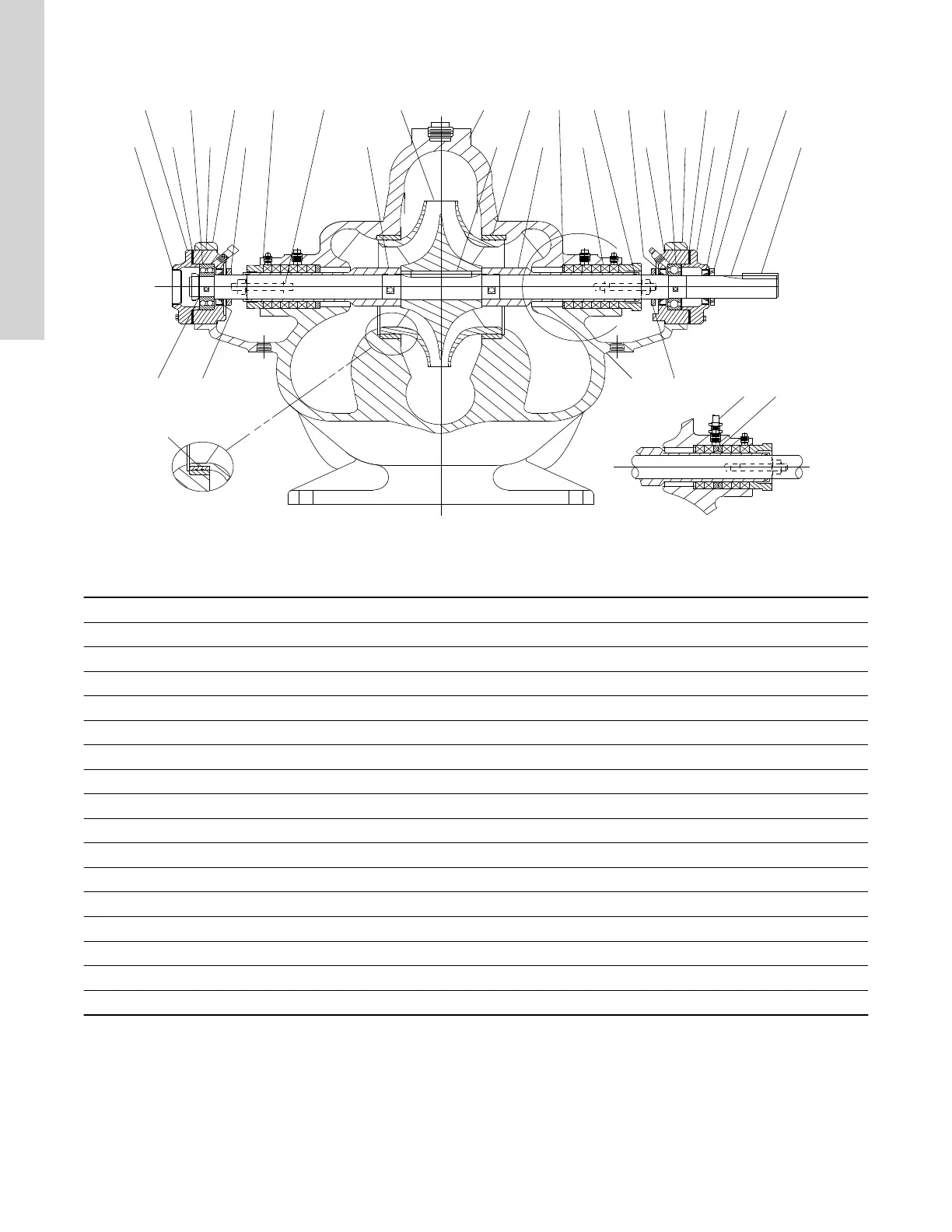

Fig. AEF, packed type with double row thrust bearing
Item No. Description Item No. Description
1A, 1B, Upper and lower casing 32 Impeller key
2 Impeller 33 Outboard bearing housing
6 Shaft 35 Inboard bearing housing cover
7 Casing wear ring 37 Outboard bearing housing cover
8 Impeller wear ring (optional) 40A Inboard deflector
13 Packing ring 40B Outboard deflector
14, 14A Shaft sleeve RH LH 41 Cap, bearing, inboard
14B Shaft sleeve O-ring 43 Cap, bearing, outboard
16 Inboard ball bearing 46 Coupling key
17 Packing gland 47 Inboard bearing cover seal
17B Gland bolt 63 Stuffing box bushing
18 Outboard ball bearing 73A Volute gasket (not shown)
18A Bearing lock washer 73B Bearing cover gasket
29 Lantern ring (optional) 123 Bearing end cover
31 Inboard bearing housing 127 Water seal piping
169 Bearing housing seal
