PEERLESS PureFire PF-210 - 12. Boiler Dimensions & Ratings; Table 12.1: Boiler Dimensions; Table 12.2: Boiler Ratings

67
BOILER DIMENSIONS & RATINGS
12. BOILER DIMENSIONS & RATINGS
Table 12.1: Boiler Dimensions
SERIES PEERLESS
®
PUREFIRE
®
DIMENSIONS (INCHES)
Boiler
Model
“A” “B” “C” “D” “E” “F” “G” “H” “J ” “K” “L”
PF-50 13-1/2 17-1/4 29-1/2 3-1/8 4-7/8 2-1/2 4-1/2 5-1/8 3 1 N/A
PF-80 13-1/2 17-1/4 29-1/2 3-1/8 4-7/8 2-1/2 4-1/2 5-1/8 3 1 N/A
PF-110 19 17-1/4 29-1/2 3-1/8 7-5/8" 2-1/2 4-1/2 5-1/8 3 1 N/A
PF-140 19 17-1/4 29-1/2 3-1/8 10-1/2 2-1/2 4-1/2 5-1/8 3 1 N/A
PF-210 16-1/2 17-1/4 40-1/2 1 3 3/4 1-3/4 4-1/2 3 6-1/2 3-1/2
PF-399 28 17-1/4 40-1/2 1-1/2 4 3/4 2-3/4 5-1/4 3-1/2 5-3/4 7

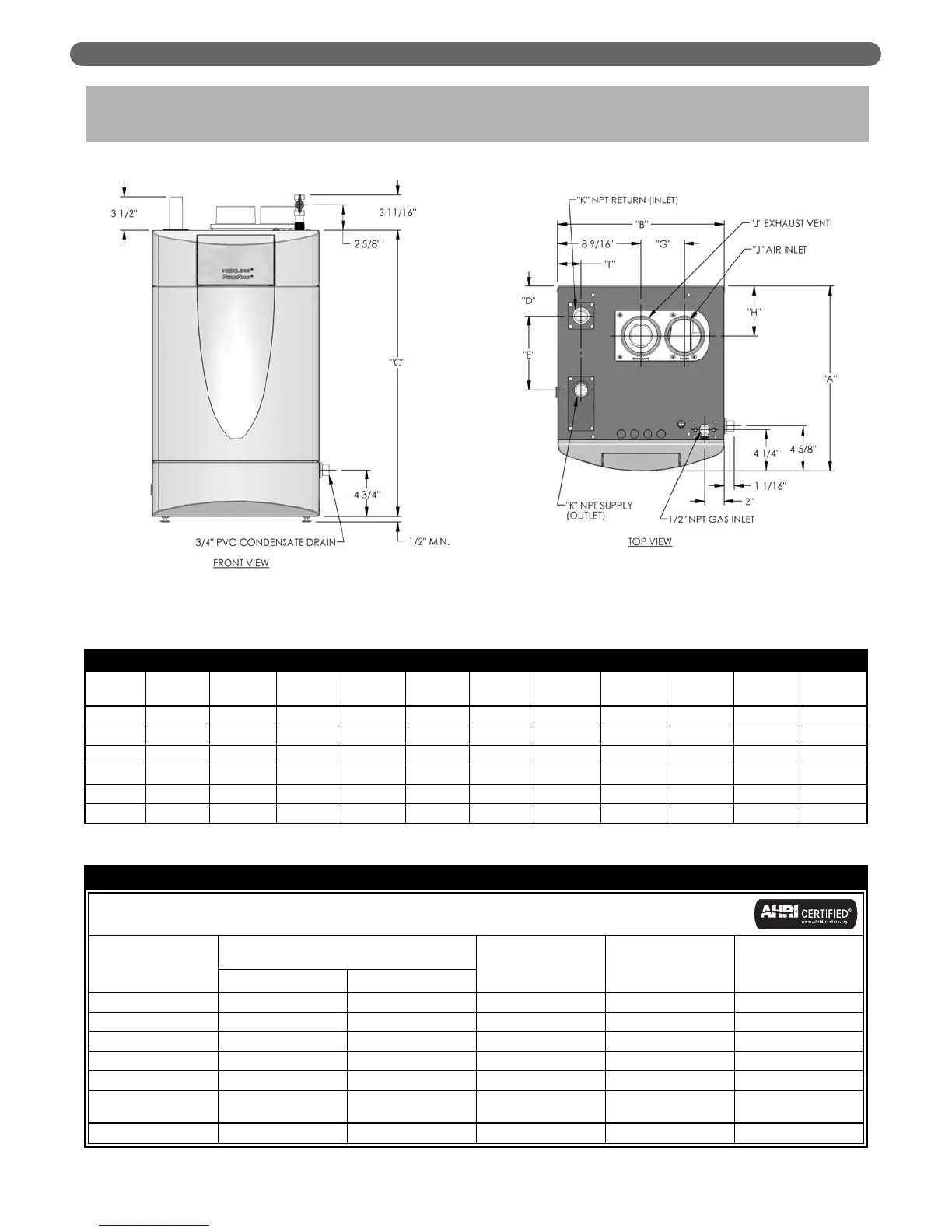

Figure 12.1: Dimensional Drawing – PF-50, PF-80, PF-110 & PF-140
Table 12.2: Boiler Ratings
Series Peerless
®
PUREFIRE
®
Boiler
Model
Input
(MBH)
Heating
Capacity
(MBH)
Net Rating
(MBH)
AFUE
(%)
Min. Max.
PF-50 16 50 46 40 91.6
PF-80 20 80 74 64 92.7
PF-110 27.5 110 102 89 93.0
PF-140 35 140 131 114 93.0
PF-210 42 210 193 168 93.3
Gross Output
(MBH)
Net Rating
(MBH)
Thermal Efficiency
(%)
PF-399 80 399 373 324 93.4
SERIES PEERLESS
®
PUREFIRE
®
BOILER RATINGS
