Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/3
for ST670 models or www.peerlessmounts.com/4 for ST680 models for a full screen compatibility chart for this
mount.
Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into screen as shown
below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over tighten.
If screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener pack.
Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
NOTE: If using M10 x 15 mm penta-pin
TM
screws, tighten screws with Penta-pin
TM
driver.
Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/3
for ST670 models or www.peerlessmounts.com/4 for ST680 models for a full screen compatibility chart for this
mount.
Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into
screen as shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do
not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled
fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: If using M10 x 15 mm penta-pin
TM
screws, tighten screws with Penta-pin
TM
driver.

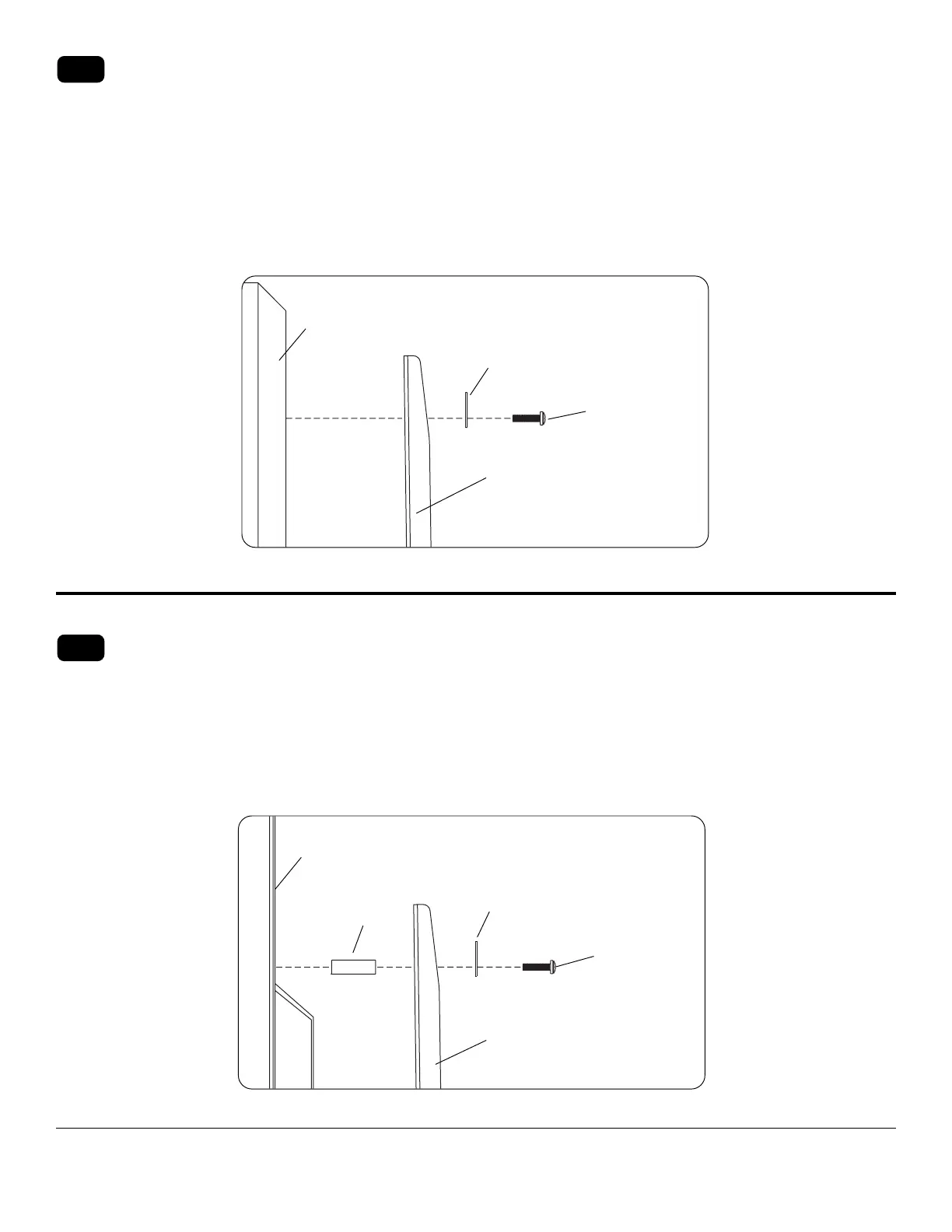

For Flat Back Screen
For Bump-out or Recessed Back Screen
SCREEN
SCREW
ADAPTER
BRACKET
(BB or CC)
fig. 2.2
SPACER
ADAPTER
BRACKET
(BB or CC)
SCREEN
fig. 2.1
SCREW
2-1
2-2
If you have any questions, please call Peerless customer care at 1-800-865-2112.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
MULTI-WASHER
MULTI-WASHER
To Next Page
