7 of 27
ISSUED: 11-7-07 SHEET #: 202-9244-1

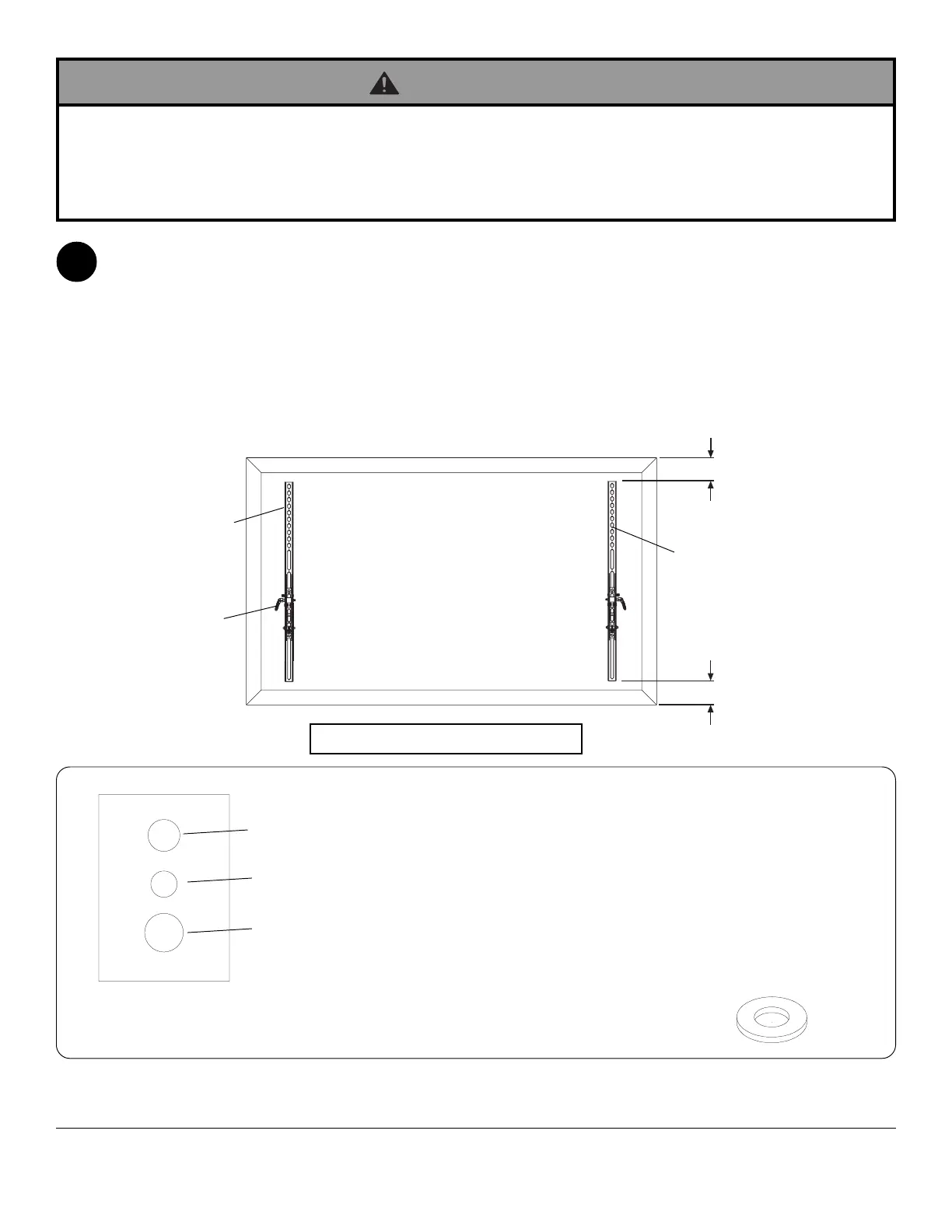

Attaching Tilt Brackets to Screen using Baffled Fastener Pack
To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place
screen face side down. Refer to screen manufacturers instructions or customer service, for removing any knobs, base,
cover, or screw(s) on the back of the screen to prepare mounting. These need to be removed to allow the adapter
brackets to be attached. Select the small, medium, large or extra large screws from the baffled fastener pack then
attach tilt brackets to screen following figure 2.1 or 2.2.
NOTE: Be sure to attach tilt brackets with handle facing outward as shown below.
NOTE: Top and bottom mounting holes must be used for attaching brackets. Middle holes should also be used where
the fasteners and screens allow. Verify that all holes are properly aligned, and then tighten screws using a phillips
screwdriver.
NOTES:
• Always use multi-washers when attaching tilt
brackets (BB and CC) to your screen when using
small, medium or large screws. No multi-washer is
required for extra large (M8) screws.
• Use the corresponding hole in the multi-washer
that matches your screw size as shown.
• Tighten screws so adapter brackets are firmly attached. Do not tighten with excessive force. Overtightening can
cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
MULTI-WASHER
MEDIUM HOLE FOR M5 SCREWS
LARGE HOLE FOR M6 SCREWS
SMALL HOLE FOR M4 SCREWS
BB
CENTER BRACKETS VERTICALLY
ON BACK OF SCREEN
X
CC
X
HANDLE FACE
OUT
Note: "X" dimensions should be equal.
NOTE: For flat back screens proceed to step 2-1. For bump-out or recessed back screen skip to step 2-2.
2
Note: Slots in ST 680, ST 680P, ST 680-S, and
ST 680P-S are wider and require the use of the
M8 washer I.D. 8.9 mm.
