PEERLESS Smartmount User Manual

3 of 16
ISSUED: 02-05-09 SHEET #: 202-9331-1
DD
EE
FF
AA
BB
CC
Parts may appear slightly different than illustrated.
Adapter Bracket Fasteners
M4 x 12 mm (4)
(504-9013)
M6 x 25 mm (4)
(5520-1208)
M4 x 25 mm (4)
(504-1015)
M5 x 25 mm (4)
(520-9543)
M6 x 12 mm (4)
(520-1128)
M5 x 12 mm (4)
(520-1027)
.5" spacer (4)
(540-1057)
.75" spacer (4)
(540-1059)
M8 x 16 mm (6)
(520-9257)
M8 x 40 mm (4)
(520-1136)
multi-washer (4)
(580-1036)
M8 x 25 mm (4)
(520-1031)
M6 x 20 mm (4)
(520-9402)
M6 x 30 mm (4)
(510-9109)
SWS410/BK SWS410/SI
RTFPF-320I
RTFPF-320
D-FPF-320
RTFPF-320SI
RTFPF-320S
D-FPF-320S
Description Qty.
SF660
Part Number
SF660-S
Part Number
SF660P
Part Number
SF660P-S
Part Number
AA wall plate 1
201-1503 201-4503 201-1503 201-4503
BB deep adapter bracket 2 201-1510 201-4510 201-1513 201-4513
CC shallow adapter bracket 2 201-1511 201-4511 201-1514 201-4514
DD #14 x 63.5 mm wood screw 4 5S1-015-C03 5S1-015-C03 5S1-015-C03 5S1-015-C03
EE concrete anchor 4 590-0320 590-0320 590-0320 590-0320
FF 4 mm allen wrench 1 560-1146 560-1146 560-1146 560-1146

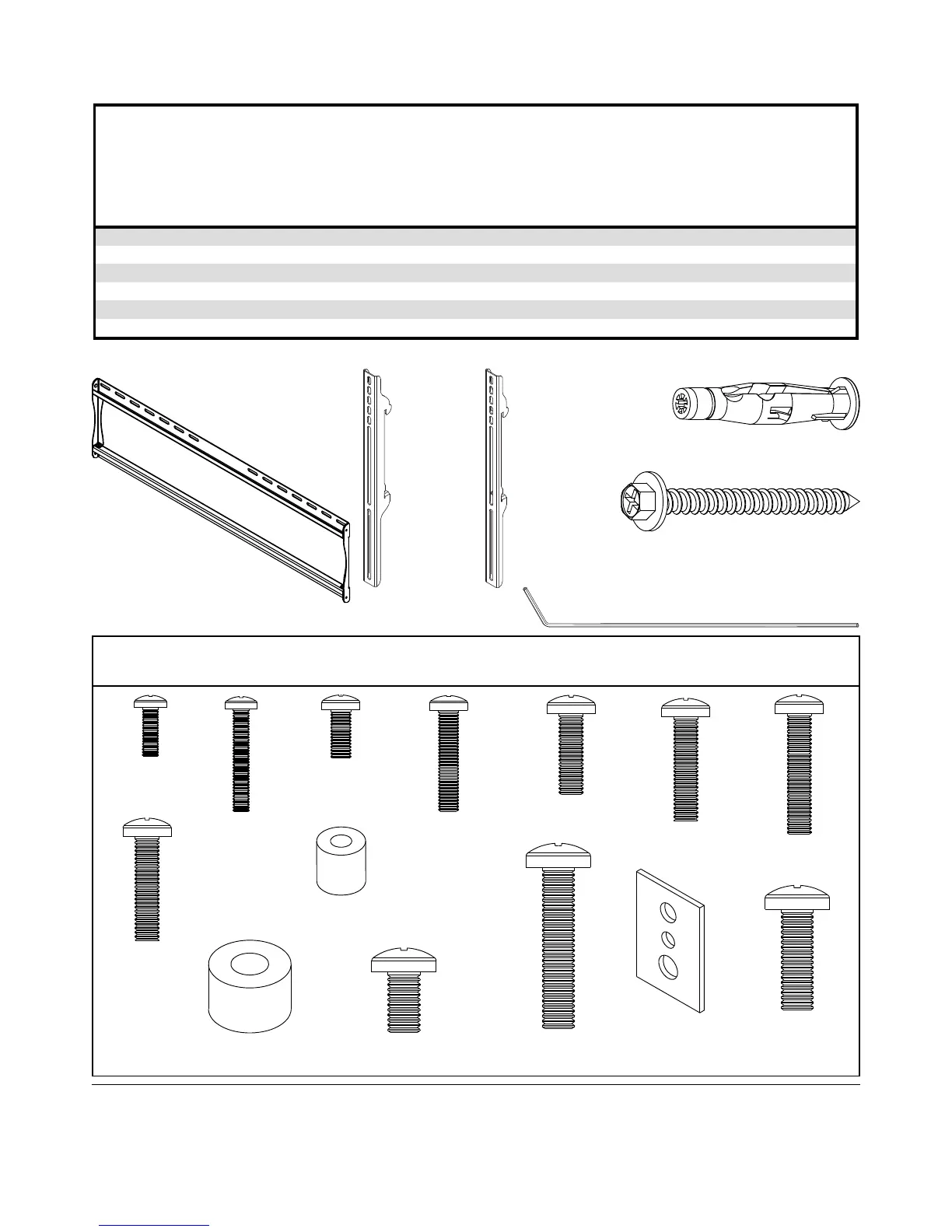

Parts List
Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
