8 of 16
ISSUED: 02-05-09 SHEET #: 202-9331-1

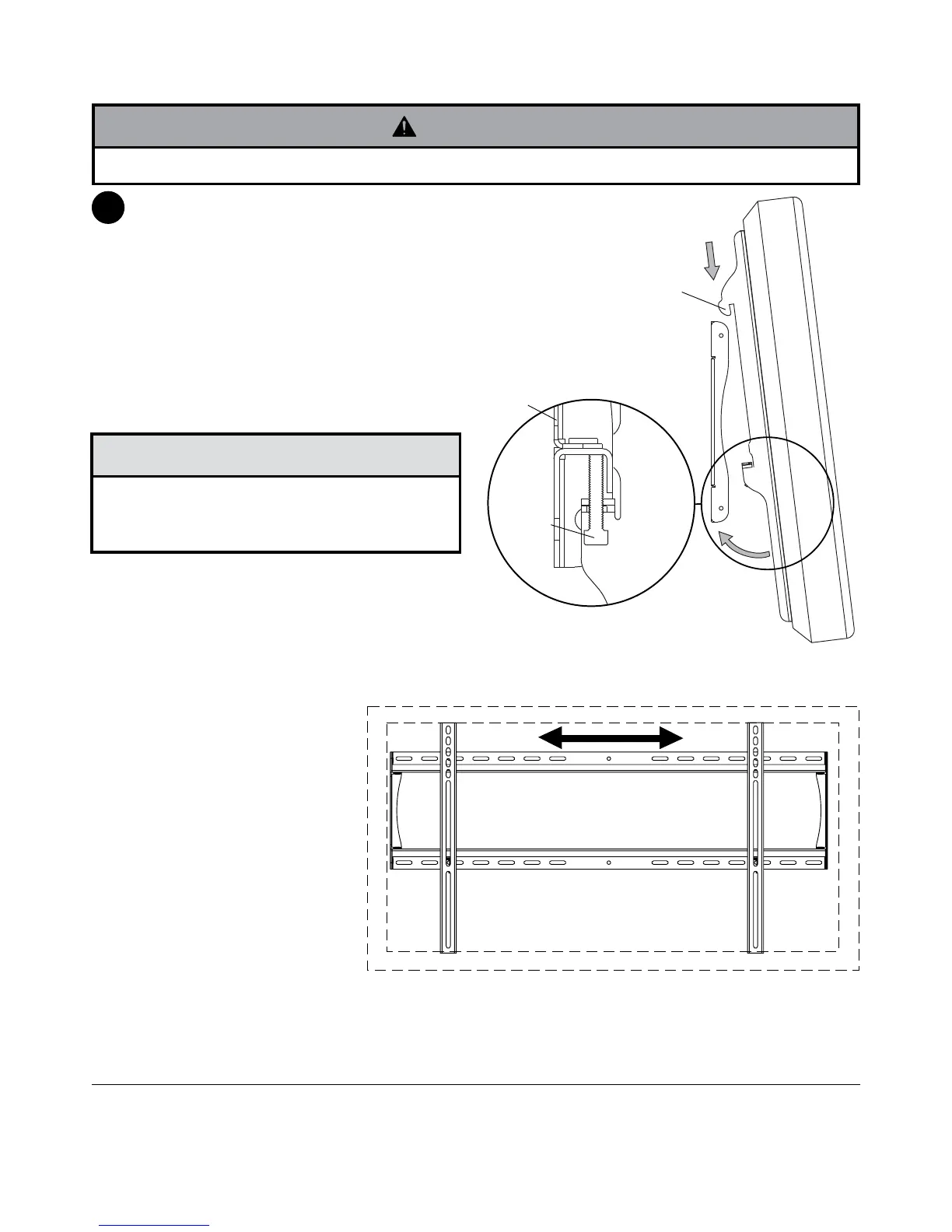

Mounting and Removing Flat Panel Screen
Hook adapter brackets (BB or CC) onto wall
plate (AA). Then slowly swing screen in as shown.
Turn safety/security screws, using security allen
wrench (FF), clockwise at least six times to
prevent screen from being removed as shown in
cross section of fig. 3.1. Screen can be adjusted
horizontally if desired as shown in figure 3.2.
NOTE: To lock the screen down, tighten safety/
security screws to wall plate as shown in cross
section.
To remove screen from mount, loosen safety/
security screws, swing screen away from mount,
and lift screen off of mount.
3
• Always use an assistant or mechanical lifting equipment to safely lift and position the flat panel screen.
WARNING
• Do not tighten screws with excessive force.
Overtightening can cause damage to mount. Tighten
screws to 40 in. • lb (4.5 N.M.) maximum torque.
CAUTION
fig 3.2
© 2009, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
Peerless Industries, Inc.
3215 W. North Ave.
Melrose Park, IL 60160
www.peerlessmounts.com
fig 3.1
CROSS SECTION
BB
or
CC
BB
or
CC
SAFETY/
SECURITY
SCREWS
AA
