6

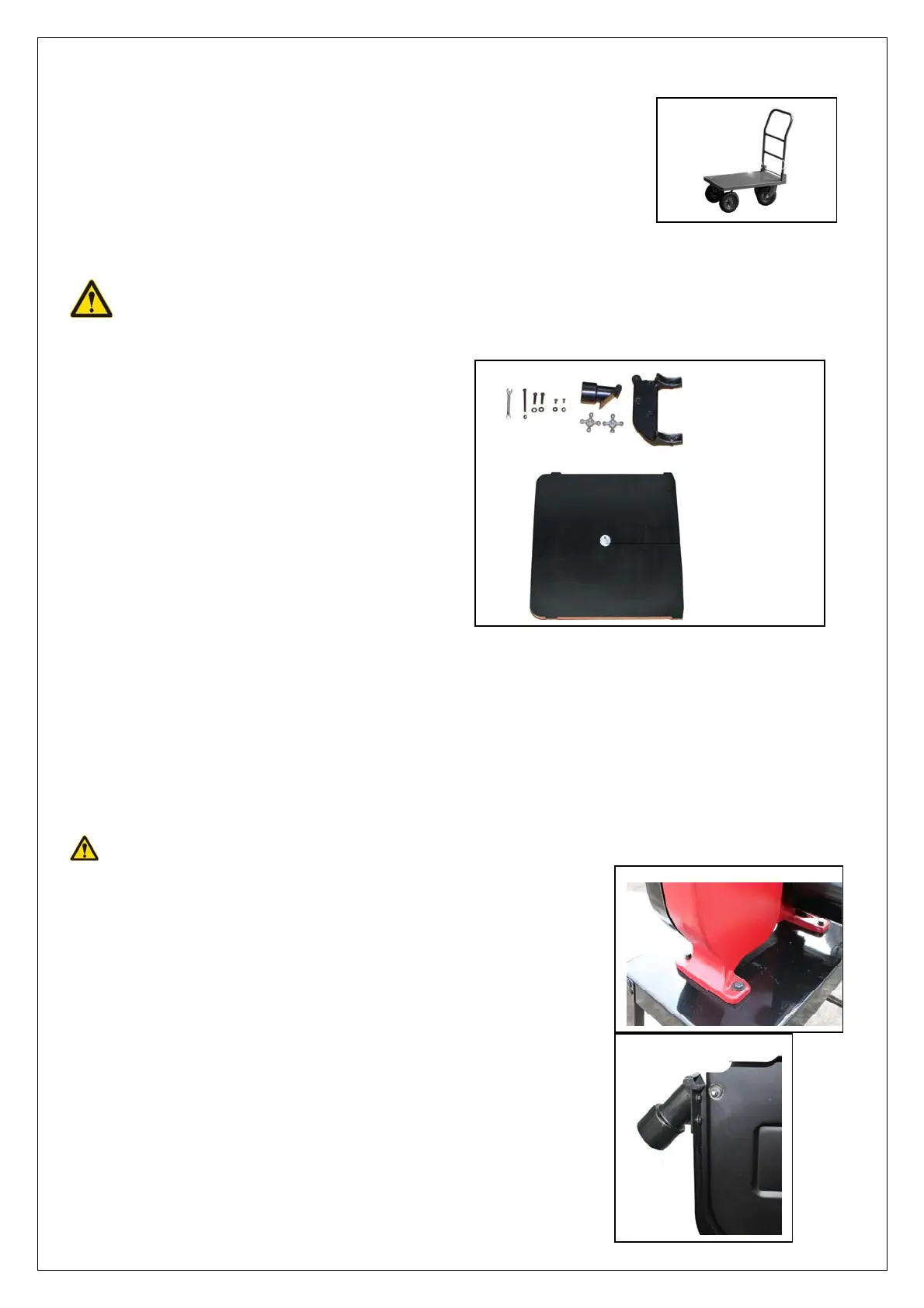

TRANSPORTING AND HANDLING
This machine shall be moved by persons who are qualified.
Persons besides the worker are not allowed to stay in the work place during
transporting the machine. Plate trailer can be used in handling, make sure that
machine is loaded vertically and the strength of plate trailer is sufficient to hand
the machine. Transport the machine with the band guard fully down and close to
the table.
UNPACKING
Carefully unpack and remove the unit and its components from its shipping container and check for missing or
damaged items as the list of contents below.
WARNING: Due to the fact that saw blade is fine and precise, pay attention do not to damage the
saw blades during transport and the manipulation of the machine.
CONTENT LIST
Scroll band saw with one blade #12 (mounted) x 1
Blade #9 x 1
Table x 1
Table insert 5mm x 1
Dust port x1 + Screw and Washer x 2
Table tilt bracket x 1
Lock knob x 2
Open wrench x 1
Long Hex head bolt w/Hex nut x 1
Medium Hex head bolt w/flat washer x 2
PLACEMENT WITHIN THE SHOP
This machine should be installed and operated only on a solid, flat and stable floor, that is able to support the
weight of the saw 81kg and the operator. Minimum space recommended for placement within your shop that
will allow the operator to work comfortably and in a safe place is 80cm x 70cm.
(Plus the space for the operator.)
ASSEMBLY INSTRUCTIONS
WARNING Do not connect the machine while it is not fully installed.
ASSEMBLING THE STAND
ASSEMBLING THE DUST PORT
1. The dust port has a 63.5mm (2 -1/2") opening to accommodate
connection to a dust collector (not included).
2. Open the lower cover door and Install the dust outlet on the right
side of the saw
- Follow the instructions on both annexed sheets.
ASSEMBLING THE BAND SAW TO THE STAND
- Lift the saw body with help of an assistant, place the band saw on the
stand and maintain it firmly.
- Place both reinforcing ribs under the top plate, use 4 long hex heads
passing through reinforcing ribs and top plate, 8 flat washers and 4 hex
nuts.
- Secure the saw by tightening all mounting bolts of the stand.
To Next Page
