7
WARNING Do not connect the machine while it is not fully installed.

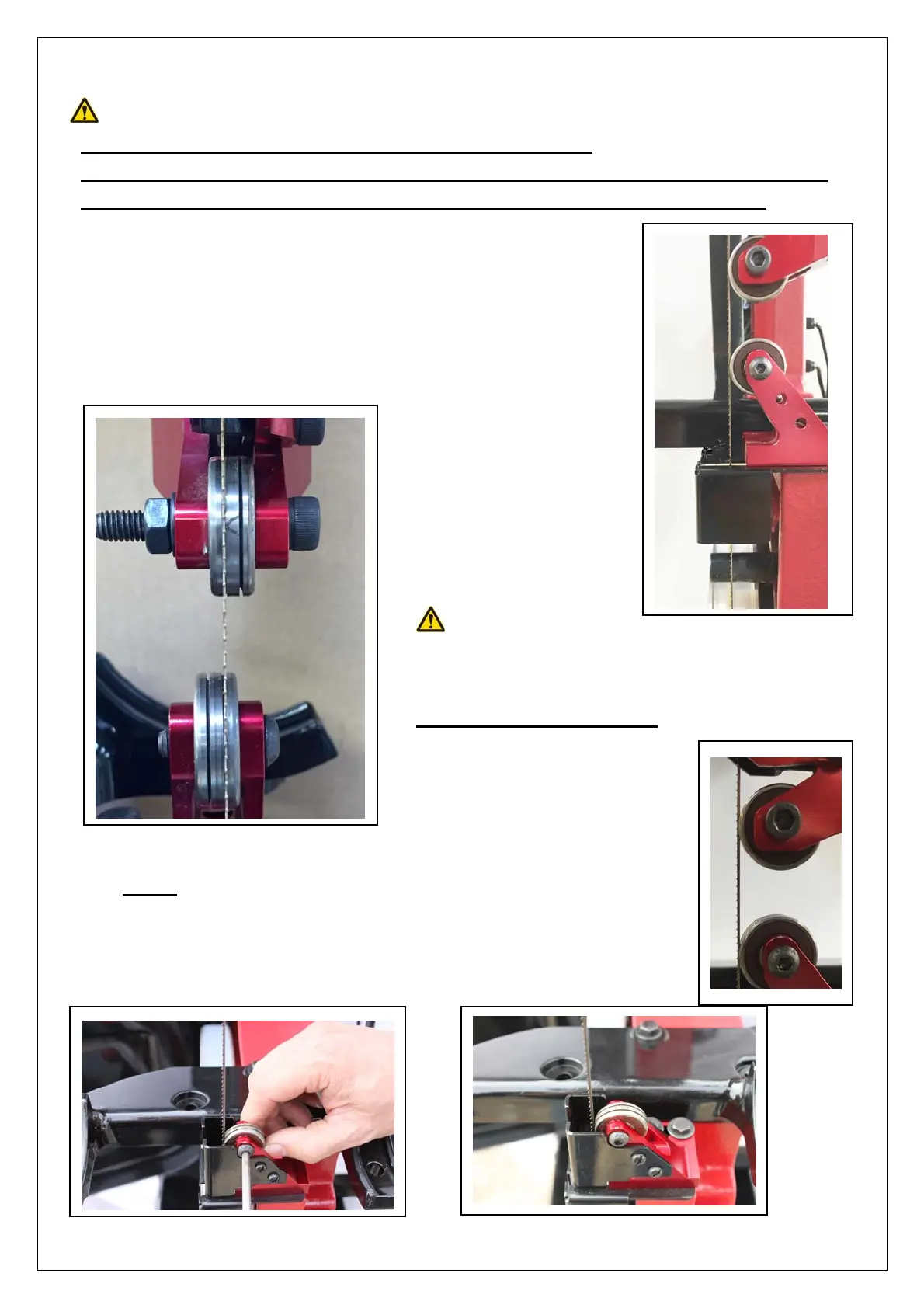

ASSEMBLING BLADE & ADJUSTING BLADE TENSION AND TRACKING
When the machine is correctly fixed on the stand, take care of these very important information, which will be
followed systematically also when you install a new blade or when you change the size of the blade.
A
- Look at both upper and lower precision guiding systems ball
bearings and get used with this new system.
- Turn slowly the wheel by hand and see the position of the blade,
more or less at the center of the rubber tires, and into the grooves of
the ball bearings. (image A)
B
WARNING
Notice that the blade is into the left groove at the upper ball
bearing and the right groove at the lower ball bearing.
IT’S NORMAL AND NECESSARY.
(image B)
C
- The back of the blade should touch the bottom of the grooves and just entails
slightly
the rotation of the ball bearings. (image C)
- In order to check the right adjustment of the guides, made in factory, unblock
both Allen screws fixing upper and lower ball bearings. (image D)
D
