IPMTB-GS Motherboard Reference Guide 17

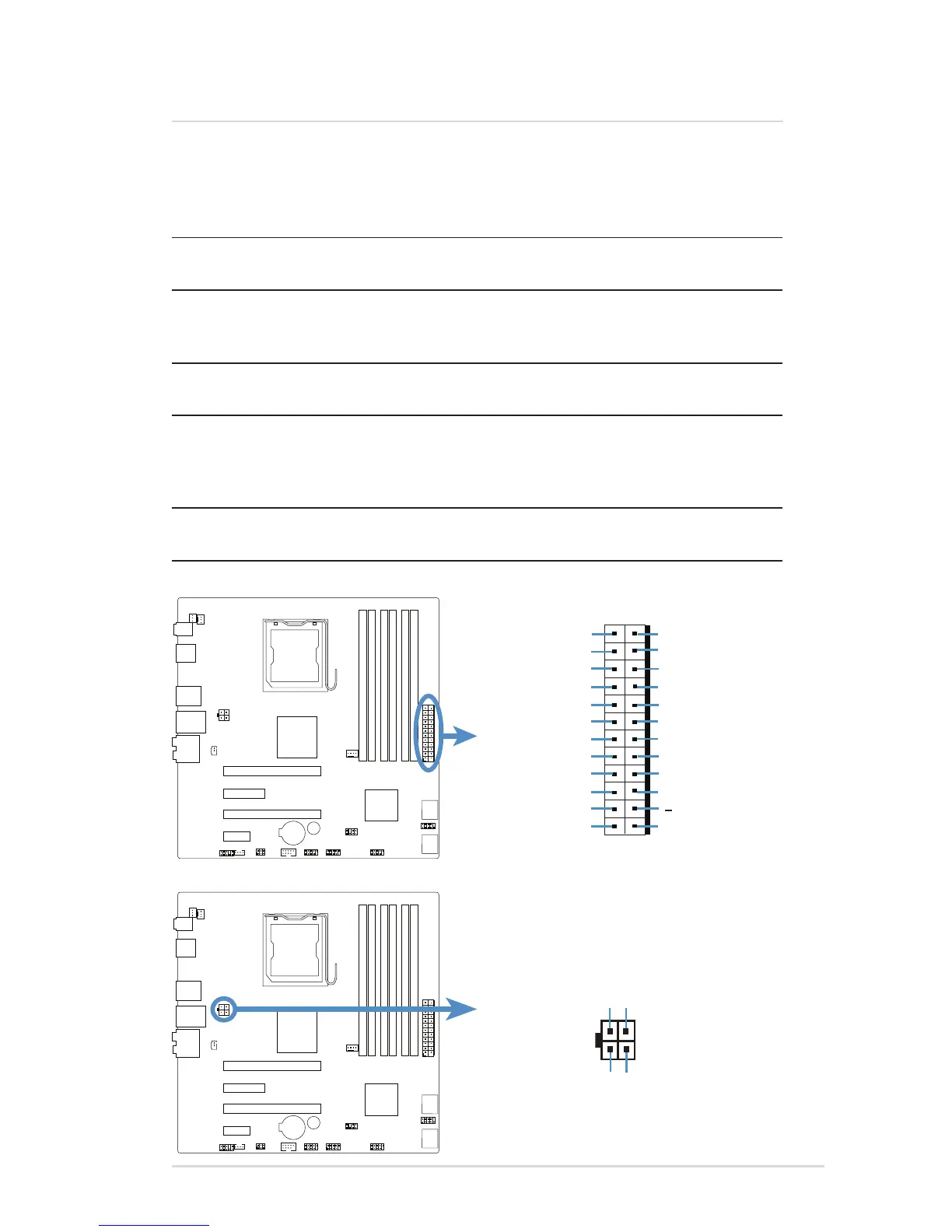

ATX power connectors (24-pin ATXPOWER and 4-pin ATX_CPU)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to t these connectors in only one orientation. Find the proper orientation
and push down rmly until the connectors completely t.
N
OTE: Do not forget to connect the 4-pin ATX +12 V power plug; otherwise, the
system will not boot.
NOTE: Use of a PSU with a higher power output is recommended when
conguring a system with more power-consuming devices. The system may
become unstable or may not boot up if the power is inadequate.
NOTE: Make sure that your power supply unit (PSU) can provide at least the
minimum power required by your system.
NOTE:
If you intent to use a PSU with 20-pin and 4-pin power plugs, make sure
that the 20-pin power plug can provide at least 15A on +12V and that the PSU
has a minimum power rating of 350 W. The system may become unstable or may
not boot up if the power is inadequate.
NOTE: You must install a PSU with a higher power rating if you intend to install
additional devices.
7 Connectors
ATXPOWER
