Pegatron IPMTB-GS - Data and USB Connectors; Serial ATA (SATA) Ports; USB 2.0 Headers

IPMTB-GS Motherboard Reference Guide 19

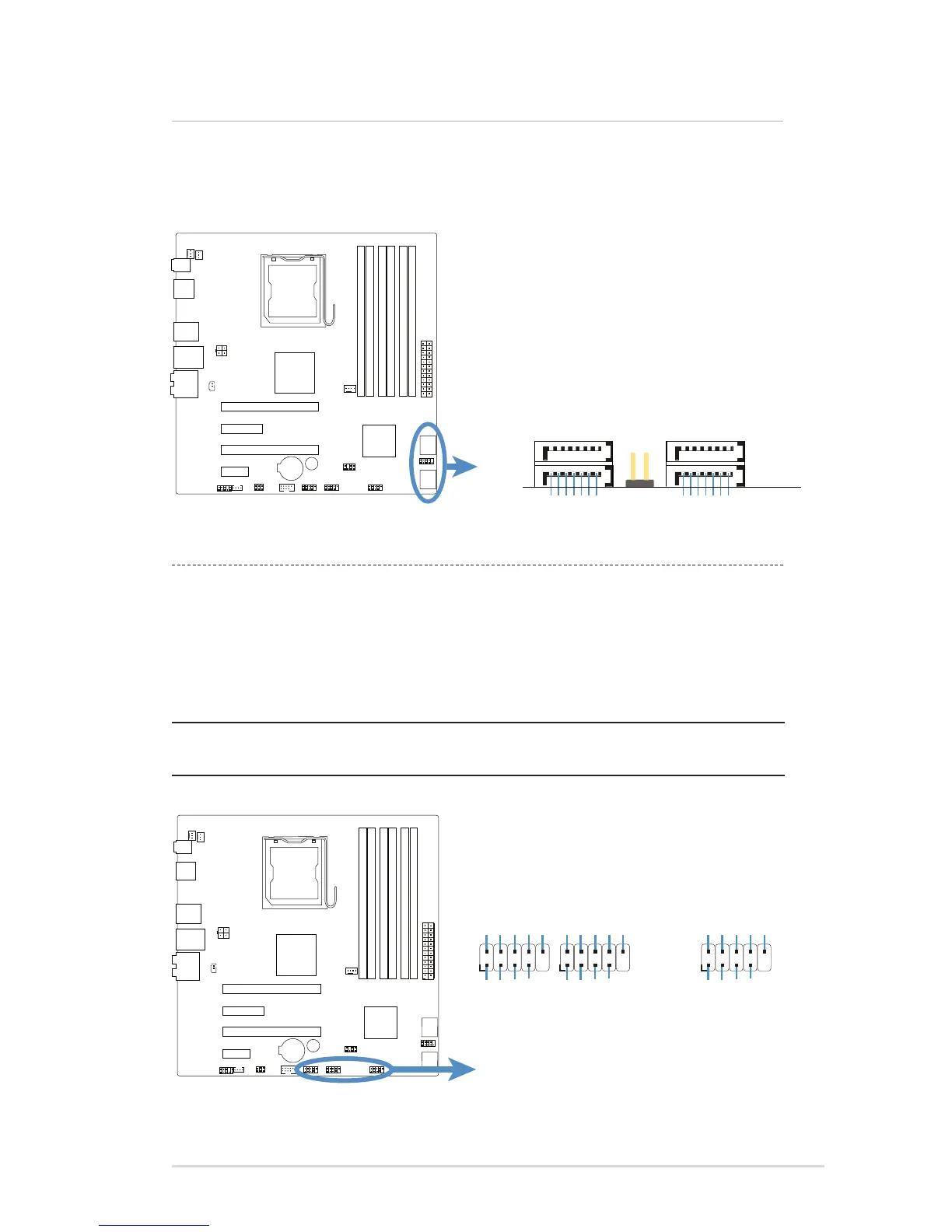

Serial ATA connectors
These connectors are for the Serial ATA signal cables for Serial ATA devices.
SATA3
SATA4
Ground Ground Ground
SATA_RX(+)
SATA_RX(-)
SATA_TX(-)
SATA_TX(+)
Ground Ground Ground
SATA_RX(+)
SATA_RX(-)
SATA_TX(-)
SATA_TX(+)
7 Connectors
USB connectors
These connectors are for USB 2.0 ports. Connect a USB module cable to any
of these connectors, then install the module to a slot opening at the back of the
system chassis. These USB connectors comply with USB 2.0 specication that
supports up to 480 Mbps connection speed.
WARNING: Never connect a 1394 cable to the USB connectors. Doing so
will damage the motherboard!
F_USB4 F_USB3 F_USB2
USB*(-)
USB*(+)
USB*(+) USB*(-)
Ground
Ground
SBV
SBV NC
USB*(-)
USB*(+)
USB*(+) USB*(-)
Ground
Ground
SBV
SBV NC
USB*(-)
USB*(+)
USB*(+) USB*(-)
Ground
Ground
SBV
SBV NC
SATA1
SATA2
