IPMTB-GS Motherboard Reference Guide 21
7 Connectors

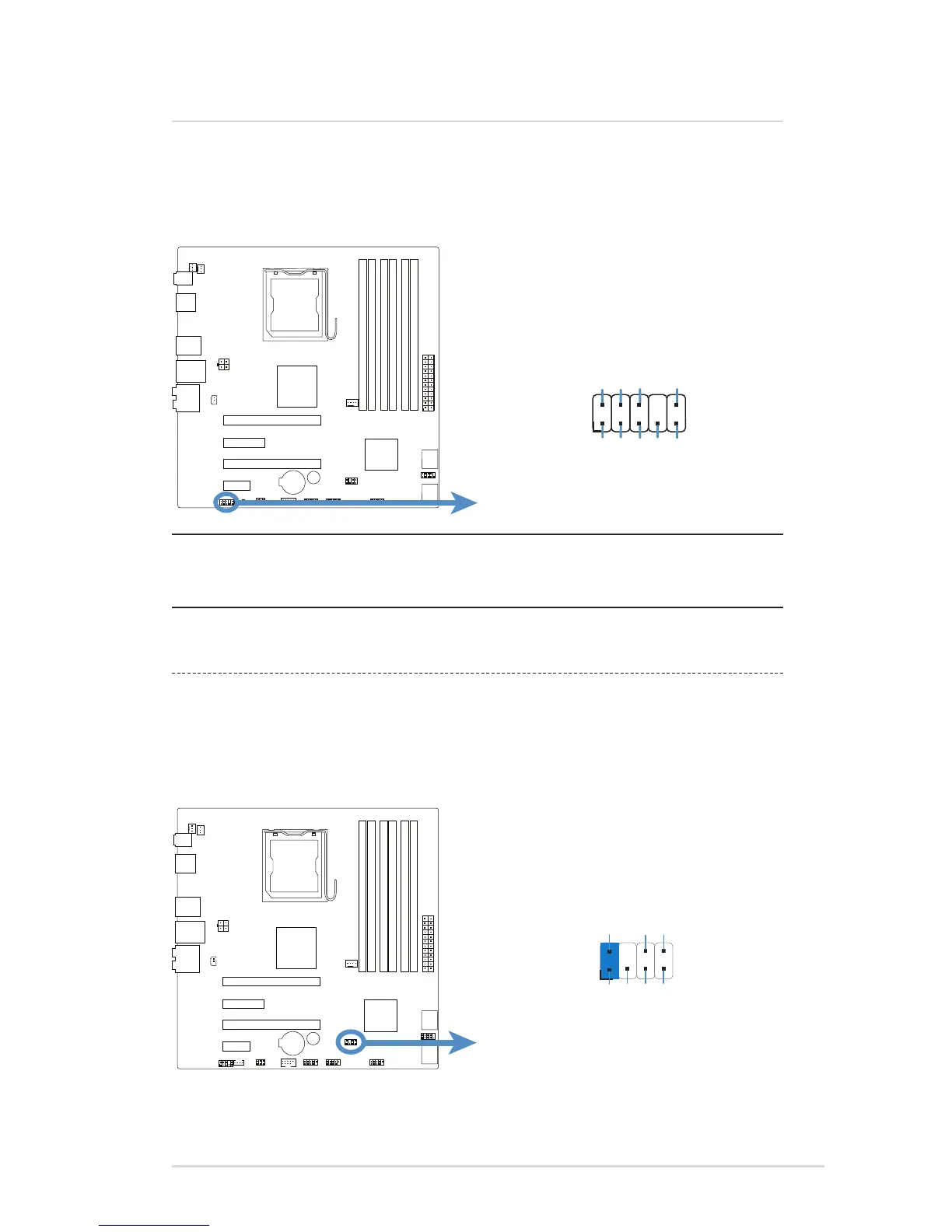

ROM Recovery connector
This connector allows qualied technicians to reload rmware into the SPI boot
ash in case there is problem with the data.
SPI_CON
Ground
+3P3V_CL
SPI_CS#_R
SPI_CS# SPI_MOSI SPI_MISO SPI_CLK
ROM_RECOVERY
Front panel audio connector
This connector is for a chassis-mounted front panel audio I/O module that supports
HD Audio.
NOTE: It is recommended that you connect a high-denition front panel audio
module to this connector to utilize this motherboard’s high-denition audio
capability.
F_AUDIO
MIC*_L
MIC*_R
LINE*_R
Ground
Ground
LINE*_L
LINE*_RTU MIC*_RTU
F_AUDIO_DET#
F_AUDIO
